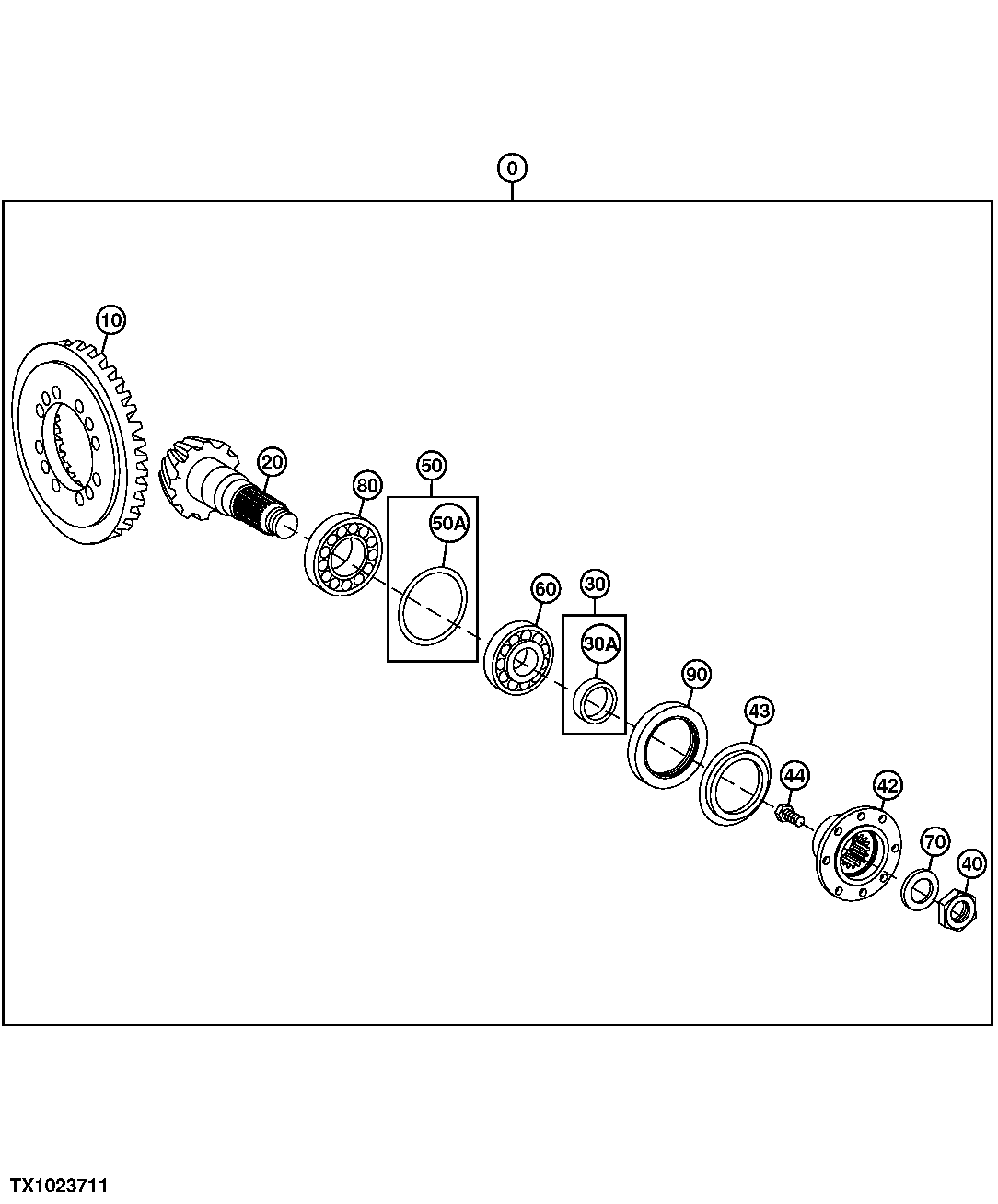

Front Axle Bevel Gear and Hub Assembly ( - 812127)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT446118	1	Axle	Additional Components On Separate Pages, SUB FOR 4654445 AND 4472099007
10	4472399014	1	Gear	SUB FOR 1139201
20	4472399016	1	Pinion	SUB FOR 1139202
30	-	1	Part 4	NLA
40	1139278	1	Nut	-
42	AT321741	1	Flange	SUB FOR 0886788
43	4472399018	1	Ring	SUB FOR 1139280
44	AT321936	8	Bolt	SUB FOR 0886790 OR AT321743
50	-	1	Part 53	NLA
60	AL79794	1	Tapered Roller Bearing	SUB FOR AT321721 OR 1139275
70	T159316	1	Washer	SUB FOR 1139277
80	AT321700	1	Bearing	SUB FOR 1139230
90	AT321949	1	Seal	-
90	-	1	Part 84	NLA, SUB FOR 1139276
30A	T159327	1	Ring	17.28 mm, SUB FOR 0886747
30A	AT321736	1	Shim	17.02 mm, SUB FOR 0886783
30A	T159322	1	Ring	17.06 mm, SUB FOR 0886742
30A	AT321737	1	Shim	17.08 mm, SUB FOR 0886784
30A	AT321738	1	Shim	17.12 mm, SUB FOR 0886785
30A	AT321739	1	Shim	17.14 mm, SUB FOR 0886786
30A	AT321740	1	Shim	17.16 mm, SUB FOR 0886787
30A	T159323	1	Ring	17.18 mm, SUB FOR 0886743
30A	T159324	1	Ring	17.22 mm, SUB FOR 0886744
30A	T159325	1	Ring	17.24 mm, SUB FOR 0886745
30A	T159326	1	Ring	17.26 mm, SUB FOR 0886746
30A	T159338	1	Ring	16.8 mm, SUB FOR 0886758
30A	T183482	1	Solid Shim	16.92 mm, SUB FOR 0886760
30A	T183483	1	Solid Shim	17.1 mm, SUB FOR 0886761
30A	T159337	1	Ring	16.7 mm, SUB FOR 0886757
30A	T159334	1	Ring	16.6 mm, SUB FOR 0886754
30A	T159332	1	Ring	16.5 mm, SUB FOR 0886752
30A	T159331	1	Ring	16.4 mm, SUB FOR 0886751
30A	T159330	1	Ring	16.3 mm, SUB FOR 0886750
30A	T159329	1	Ring	16.2 mm, SUB FOR 0886749
30A	T159319	1	Shim	16.1 mm, SUB FOR 0886739
30A	T159318	1	Shim	16.0 mm, SUB FOR 0886738
30A	AT321734	1	Shim	16.96 mm, SUB FOR 0886781
30A	T183484	1	Solid Shim	17.2 mm, SUB FOR 0886762
30A	T159320	1	Shim	17.3 mm, SUB FOR 0886740
30A	T183485	1	Solid Shim	17.4 mm, SUB FOR 0886763
30A	T183486	1	Solid Shim	16.86 mm, SUB FOR 0886764
30A	T183487	1	Solid Shim	16.98 mm, SUB FOR 0886765
30A	T183489	1	Solid Shim	17.04 mm, SUB FOR 0886767
30A	T183490	1	Solid Shim	16.56 mm, SUB FOR 0886768
30A	T183491	1	Solid Shim	16.62 mm, SUB FOR 0886769
30A	T183492	1	Solid Shim	16.64 mm, SUB FOR 0886770
30A	T183493	1	Solid Shim	16.68 mm, SUB FOR 0886771
30A	AT321726	1	Ring	16.74 mm, SUB FOR 0886773
30A	AT321735	1	Shim	17.0 mm, SUB FOR 0886782
30A	AT321733	1	Shim	16.66 mm, SUB FOR 0886780
30A	AT321732	1	Shim	16.94 mm, SUB FOR 0886779
30A	AT321731	1	Shim	16.9 mm, SUB FOR 0886778
30A	AT321730	1	Shim	16.88 mm, SUB FOR 0886777
30A	T183494	1	Solid Shim	16.72 mm, SUB FOR 0886772
30A	T159321	1	Shim	16.76 mm, SUB FOR 0886741
30A	AT321727	1	Shim	16.78 mm, SUB FOR 0886774
30A	AT321728	1	Shim	16.82 mm, SUB FOR 0886775
30A	AT321729	1	Shim	16.84 mm, SUB FOR 0886776
50A	T228669	1	Shim	0.2 mm, SUB FOR AT321716 OR 0886726
50A	AT321702	1	Shim	1.85 mm, SUB FOR 0886712
50A	T159315	1	Shim	1.75 mm, SUB FOR 0886711
50A	T159314	1	Shim	1.65 mm, SUB FOR 0886710
50A	T159313	1	Shim	1.55 mm, SUB FOR 0886709
50A	AT321701	1	Shim	1.45 mm, SUB FOR 0886708
50A	T159311	1	Shim	1.35 mm, SUB FOR 0886707
50A	T159310	1	Shim	1.25 mm, SUB FOR 0886706
50A	T228673	1	Shim	0.65 mm, SUB FOR AT321719 OR 0886729
50A	T228672	1	Shim	0.75 mm, SUB FOR AT321718 OR 0886728
50A	T228671	1	Shim	0.1 mm, SUB FOR AT321717 OR 0886727
50A	T159307	1	Shim	2.0 mm, SUB FOR 0886703
50A	T228668	1	Shim	0.3 mm, SUB FOR AT321715 OR 0886725
50A	AT321714	1	Shim	0.5 mm, SUB FOR 0886724
50A	T228666	1	Shim	0.6 mm, SUB FOR AT321713 OR 0886723
50A	T159309	1	Shim	0.7 mm, SUB FOR 0886705
50A	T228665	1	Shim	0.8 mm, SUB FOR AT321712 OR 0886722
50A	T228664	1	Shim	0.9 mm, SUB FOR AT321711 OR 0886721
50A	AT321710	1	Shim	1.0 mm, SUB FOR 0886720
50A	AT321709	1	Shim	1.3 mm, SUB FOR 0886719
50A	AT321708	1	Shim	1.4 mm, SUB FOR 0886718
50A	AT321707	1	Shim	SUB FOR 1139217
50A	AT321706	1	Shim	1.7 mm, SUB FOR 0886716
50A	AT321705	1	Shim	1.9 mm, SUB FOR 0886715
50A	AT321704	1	Shim	1.2 mm, SUB FOR 0886714
50A	AT321703	1	Shim	1.5 mm, SUB FOR 0886713
50A	T159308	1	Shim	1.8 mm, SUB FOR 0886704

Front Axle Bevel Gear and Hub Assembly ( - 812127)
