Открытый узел

Boom Hydraulic Lines (Hi-Flow Kit)

Boom Hydraulic Lines (Hi-Flow Kit)

Boom Hydraulic Lines (Hi-Flow Kit)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

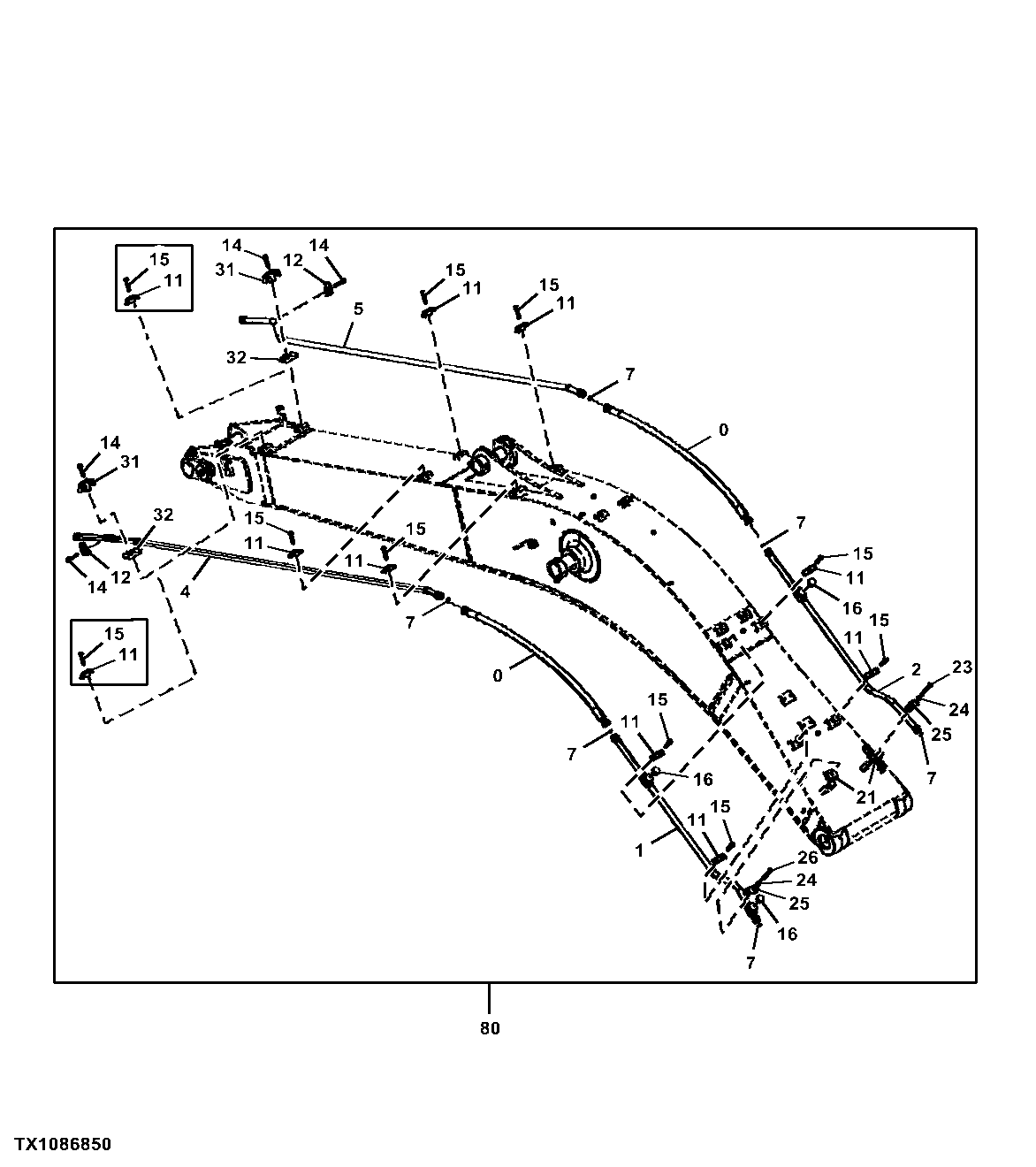

Boom Hydraulic Lines (Hi-Flow Kit)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4649213	2	Hydraulic Hose	-
1	8105120G	1	Oil Line	SUB FOR 8101300
2	8105841G	1	Oil Line	SUB FOR 8101301
4	DH800081G	1	Pipe	SUB FOR 8082052
5	DH800082G	1	Pipe	SUB FOR 8082053
7	T76938	6	O-Ring	SUB FOR 4187328
11	4153488	10	Clamp	Units Built Before November 2009, SUB FOR TH103780
11	4153488	8	Clamp	Units Built November 2009 And After
12	4190127	2	Clamp	Units Built Before November 2009, SUB FOR TH108313
14	-	2	Part 10	Units Built Before November 2009, J271280 NLA
14	24M7345	4	Washer	13.500 X 24 X 2.500 mm, Units Built November 2009 And After, SUB FOR J222012
14	19M7364	4	Cap Screw	M12 X 80, Units Built November 2009 And After, SUB FOR J901280
14	-	4	Part 13	Units Built November 2009 And After, J271280 NLA
14	24M7345	2	Washer	13.500 X 24 X 2.500 mm, Units Built Before November 2009, SUB FOR J222012
14	19M7364	2	Cap Screw	M12 X 80, Units Built Before November 2009, SUB FOR J901280
15	-	10	Part 16	Units Built Before November 2009, 4657481 NLA
15	24M7345	8	Washer	13.500 X 24 X 2.500 mm, Units Built November 2009 And After, SUB FOR J222012
15	19M8088	8	Cap Screw	M12 X 75, Units Built November 2009 And After, SUB FOR J901275
15	-	8	Part 19	Units Built November 2009 And After, 4657481 NLA
15	24M7345	10	Washer	13.500 X 24 X 2.500 mm, Units Built Before November 2009, SUB FOR J222012
15	19M8088	10	Cap Screw	M12 X 75, Units Built Before November 2009, SUB FOR J901275
16	A885008	3	Pipe Plug	SUB FOR THA885008
16	TH101926	3	O-Ring	SUB FOR 4506429
21	9764772	2	Bracket	-
23	19M8061	1	Cap Screw	M12 X 140, SUB FOR J901208
24	24M7047	2	Washer	13 X 24 X 2.500 mm, SUB FOR A590112
25	4190127	2	Clamp	-
26	19M8413	1	Cap Screw	M12 X 150, SUB FOR J901210
31	4153488	2	Clamp	Units Built November 2009 And After, SUB FOR 4285725
32	4285724	2	Clamp	Units Built November 2009 And After
80	-	1	Part 31	Whole Goods Hi-Flow Kit Mono Boom, AT342117 NLA
