Valve-In-Head (VIH) Pilot Controllers

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

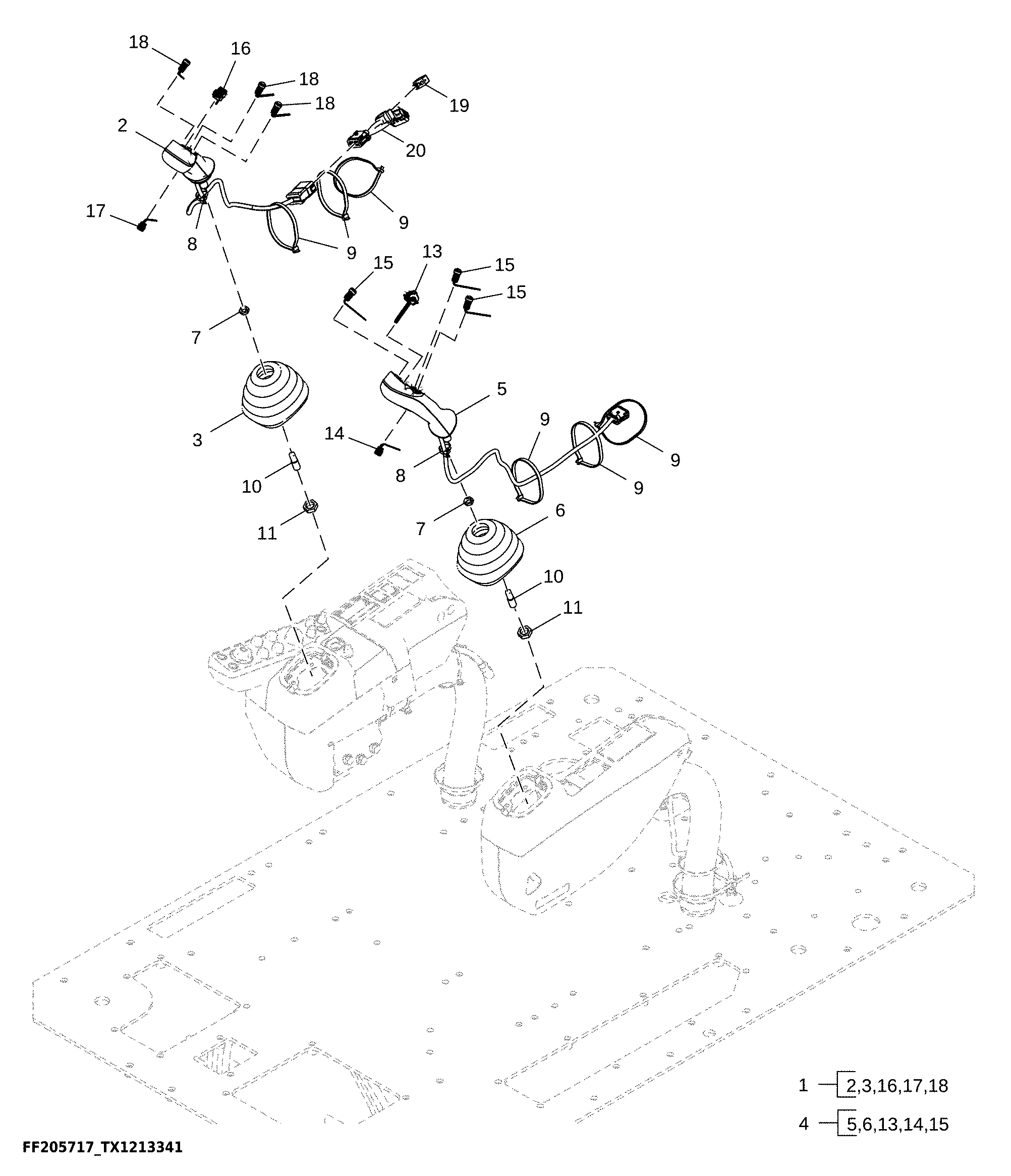

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Right With Boot Referenc DTAC Solution 216823, USED ON OPTION CODE 6792; FF253269 NLA; SUB FOR FF205718
2	FF253278	1	Multi-Functional Controller	Right Joystick Without Boot Reference DTAC Solution 216823, USED ON OPTION CODE 6792; ALSO ORDER FF208000
2	FF259046	1	Hydr./Pilot Control Valve	Right Without Boot With Trigger Switch, ALSO ORDER 4034733, FF258972, AND 2060151
3	FF208000	1	Boot	USE WITH FF253269 AND FF253278
3	2060151	1	Boot	USE WITH FF259047
4	-	1	Part 6	Left With Boot Reference DTAC Solution 216823, USED ON OPTION CODE 6792; SUB FOR FF253268 AND FF205719
5	FF253275	1	Multi-Functional Controller	Left Joystick Without Boot Reference DTAC Solution 216823, USED ON OPTION CODE 6792; ALSO ORDER FF208000
5	FF259047	1	Hydr./Pilot Control Valve	Left Without Boot With Trigger Switch, ALSO ORDER 4034733, FF258972, AND 2060151
6	FF208000	1	Boot	USE WITH FF253268 AND FF253275
6	2060151	1	Boot	USE WITH FF259046
7	FF205715	2	Nut	USE WITH FF253269, FF253278, FF253268, AND FF253275
7	4034733	2	Spring Pin	USE WITH FF259046 AND FF259047
8	H77698	2	Tie Band	SUB FOR 4055311
9	H77698	6	Tie Band	SUB FOR 4121859
10	FF110068	2	Handle	USE WITH FF253269, FF253278, FF253268, AND FF253275
10	FF258972	2	Handle	USE WITH FF259046 AND FF259047
11	FF221013	2	Nut	-
13	FF253281	1	Switch	Thumb Wheel Plunger Left Reference DTAC Solution 216823
14	FF252769	1	Switch	Nano Button Push Left Reference DTAC Solution 216823
15	FF252767	3	Switch	Micro Push Button Left Reference DTAC Solution 216823
16	FF253282	1	Switch	Thumb Wheel Plunger Right Reference DTAC Solution 216823
17	FF252769	1	Switch	Nano Button Push Right Reference DTAC Solution 216823
18	FF252767	3	Switch	Micro Push Button Right Reference DTAC Solution 216823
19	4436534	1	Relay	24 V, USE WITH FF259046
20	FF255232	1	Wiring Harness	Joystick Logic Swap Power, USE WITH FF259046

Valve-In-Head (VIH) Pilot Controllers
