Открытый узел

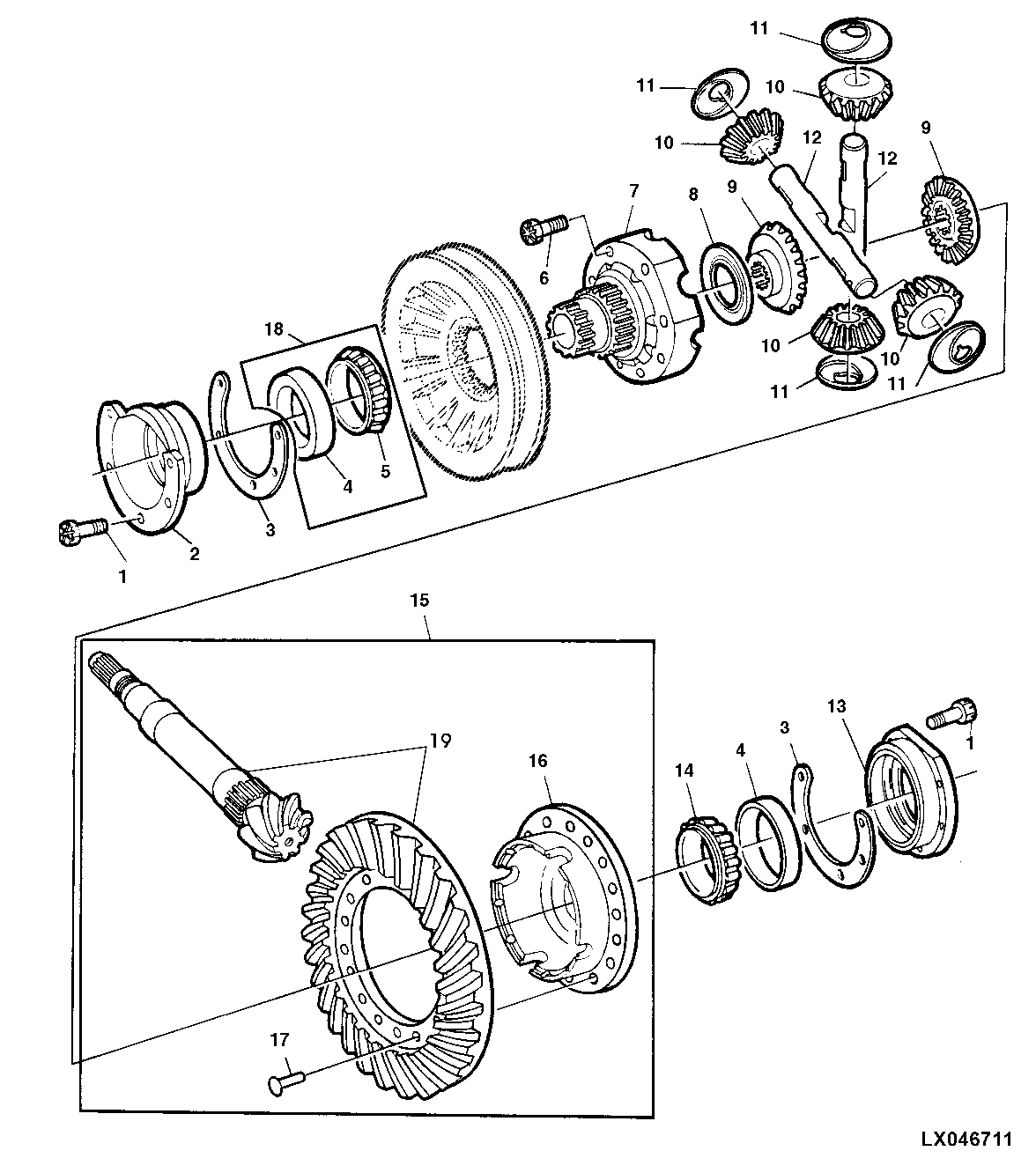

DIFFERENTIAL WITH THRUST WASHERS (COLLAR-SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22874	10	BOLT	3/8" X 1.120"
2	R62849	1	Bearing Housing W/O Bearing	LH
3	L29006	1	Shim	TK= 0.13 MM (.005"), (SUB FOR T21435 APPL)
3	L29007	1	Shim	TK= 0.25 MM (.010"), (SUB FOR T21436 APPL)
3	T29862	1	SHIM	TK= 0.50 MM (.020")
3	L40721	1	Shim	TK= 0.05 MM (0.002")
3	L29005	1	Shim	TK= 0.08 MM (.003"), (SUB FOR T21434 APPL)
4	JD8206	2	Bearing Cup	LH, RH
4	-	1	Part 9	LH, (ORD AL71158)
4	JD8210	1	Bearing Cup	RH
5	-	1	Part 12	LH, (ORD AL71158)
5	JD8151	1	Bearing Cone	LH
6	T21430	8	CAP SCREW	3/8" X 2.120"
7	L32568	1	HOUSING	LH
7	L36199	1	Housing	LH
8	L32570	1	WASHER	-
8	L31792	1	Washer	-
9	T29394	2	BEVEL GEAR	Z= 18
9	L28376	2	Bevel Gear	Z= 18
10	L29227	4	GEAR	Z= 18
11	L31793	4	THRUST WASHER	-
12	L29226	2	SHAFT	-
13	T21432	1	BEARING HOUSING W/O BEARING	RH
13	L36203	1	Bearing Housing W/O Bearing	RH
14	JD8946	1	Bearing Cone	RH
14	JD10322	1	Bearing Cone	RH, (SUB FOR JD8159)
15	AL69461	1	Kit	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 9/43, (ORD AL70940, T59690, (16) L40557) (SUB FOR AL69460)
15	AL33354	1	Kit	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 8/35, WITH REVERSER (ORD AL66864, L36205, (16) L40557)
15	AL66238	1	Kit	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 9/43, WITH REVERSER (ORD AL66863, L36205, (16) L40557) (SUB FOR AL66228)
15	AL38554	1	Housing	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 9/39, W/O REVERSER (ORD AL66864, L36205, (16) L40557)
15	AL67796	1	Housing	(NO LONGER AVAILABLE AS AN ASSEMBLY, ORDER INDIVIDUAL PARTS) Z= 9/43, (ORD AL70939, T59690, (16) L40557) (SUB FOR AL35740)
16	T59690	1	Housing	-
16	L36205	1	Housing	RH
17	L40557	16	RIVET	-
18	AL71158	1	Bearing	ASSY
19	AL70939	1	Assembly Line Parts	Z= 9/43
19	AL66864	1	Housing	Z= 9/39, NLA
19	AL66863	1	Housing	Z= 9/43
19	AL66864	1	Housing	Z= 8/35, NLA
19	AL70940	1	Assembly Line Parts	Z= 9/43

DIFFERENTIAL WITH THRUST WASHERS (COLLAR-SHIFT TRANSMISSION)
