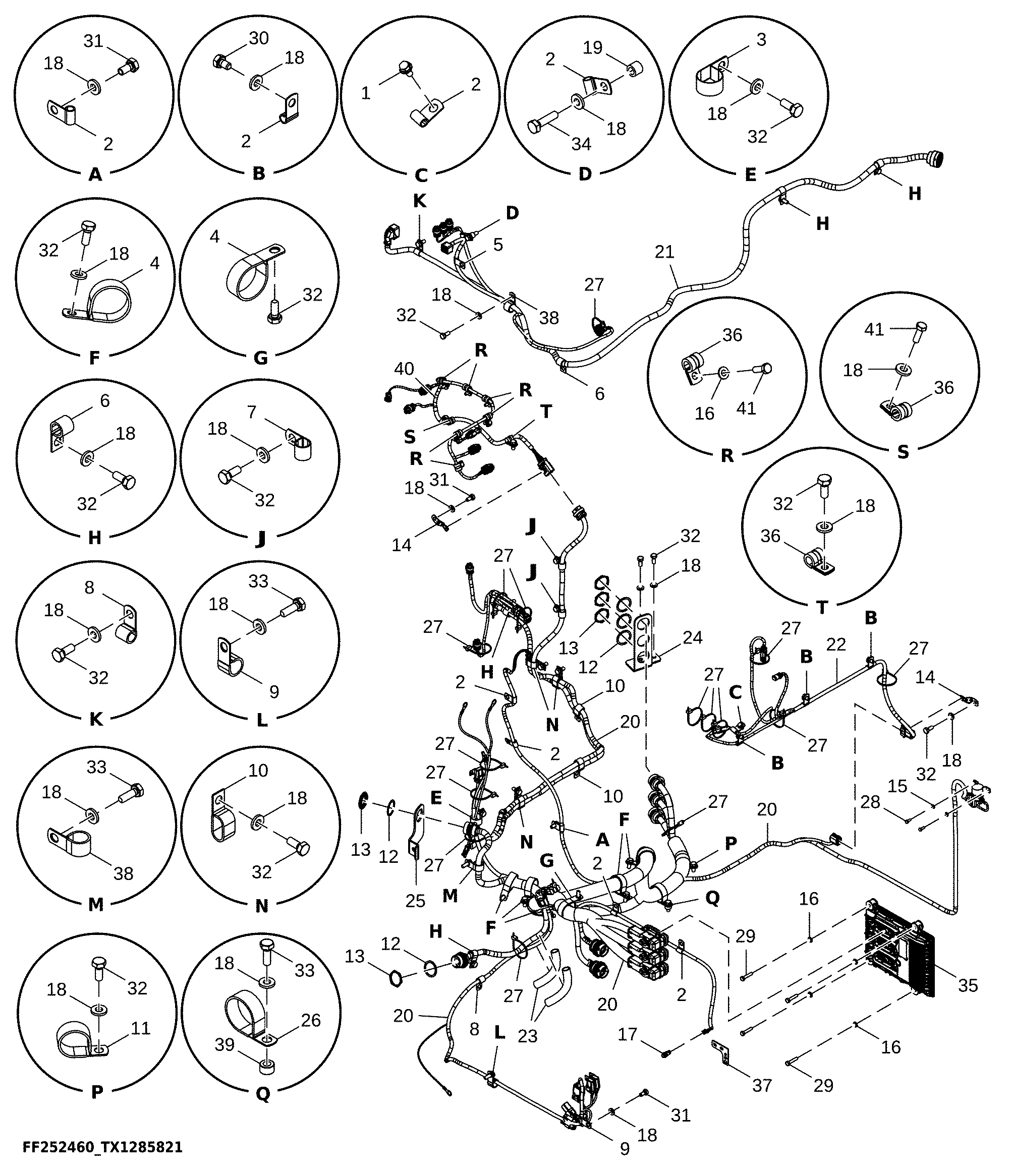

Engine Control Unit (ECU) and Engine Interface Wiring Harness (212476 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	1	Screw	M8 X 16
2	4190261	9	Clip	-
3	4193848	1	Clip	SUB FOR 4190264
4	N198631	6	Clamp	SUB FOR 4190265
5	AH79175	1	Clip	SUB FOR 4190272
6	T28949	5	Clamp	SUB FOR 4190273
7	4190274	2	Clip	-
8	4190275	2	Clamp	-
9	4190277	2	Clamp	-
10	T32854	5	Clamp	SUB FOR 4190282
11	4193848	1	Clip	SUB FOR 4190291
12	57M7765	5	Lock Washer	-
13	E73240	5	Nut	42.875 mm (1-11/16"), SUB FOR 57M8035
14	57M8736	2	Elec. Connector Accessory	-
15	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
16	24M7055	10	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
17	AT228722	1	Indicator Lamp	24 V
18	DH400703	33	Washer	-
19	FF214311	1	Spacer	-
20	FF253824	1	Wiring Harness	Interface
21	FF217778	1	Wiring Harness	Diesel Exhaust Fluid (DEF)
22	FF223125	1	Wiring Harness	Cooling And Fan
23	-	2	Part 23	MAKE FROM FFSB108096; CTL 100 mm (4 in); FF229313 NLA
24	FF520117	1	Bracket	-
25	FF529062	1	Bracket	-
26	F026126	1	Hose Support	SUB FOR FFSB105404
27	H77698	15	Tie Band	SUB FOR FFSB108261
28	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
29	19M7301	4	Cap Screw	M8 X 40, SUB FOR J900840
30	19M8324	3	Cap Screw	M10 X 16, SUB FOR J901016
31	19M7938	3	Cap Screw	M10 X 20, SUB FOR J901020
32	19M7402	23	Cap Screw	M10 X 25, SUB FOR J901025
33	19M7662	3	Cap Screw	M10 X 30, SUB FOR J901030
34	19M7358	1	Cap Screw	M10 X 40, SUB FOR J901040
35	RE548097	1	Engine Controller	-
36	T269640	8	Clamp	-
37	T353252	1	Label	Battery Disconnect
38	4190263	2	Clip	-
39	4453874	1	Spacer	-
40	AT501153	1	Wiring Harness	Aftertreatment Device
41	19M7407	7	Cap Screw	M8 X 25, SUB FOR J900825

Engine Control Unit (ECU) and Engine Interface Wiring Harness (212476 - )

Нет текстового описания
