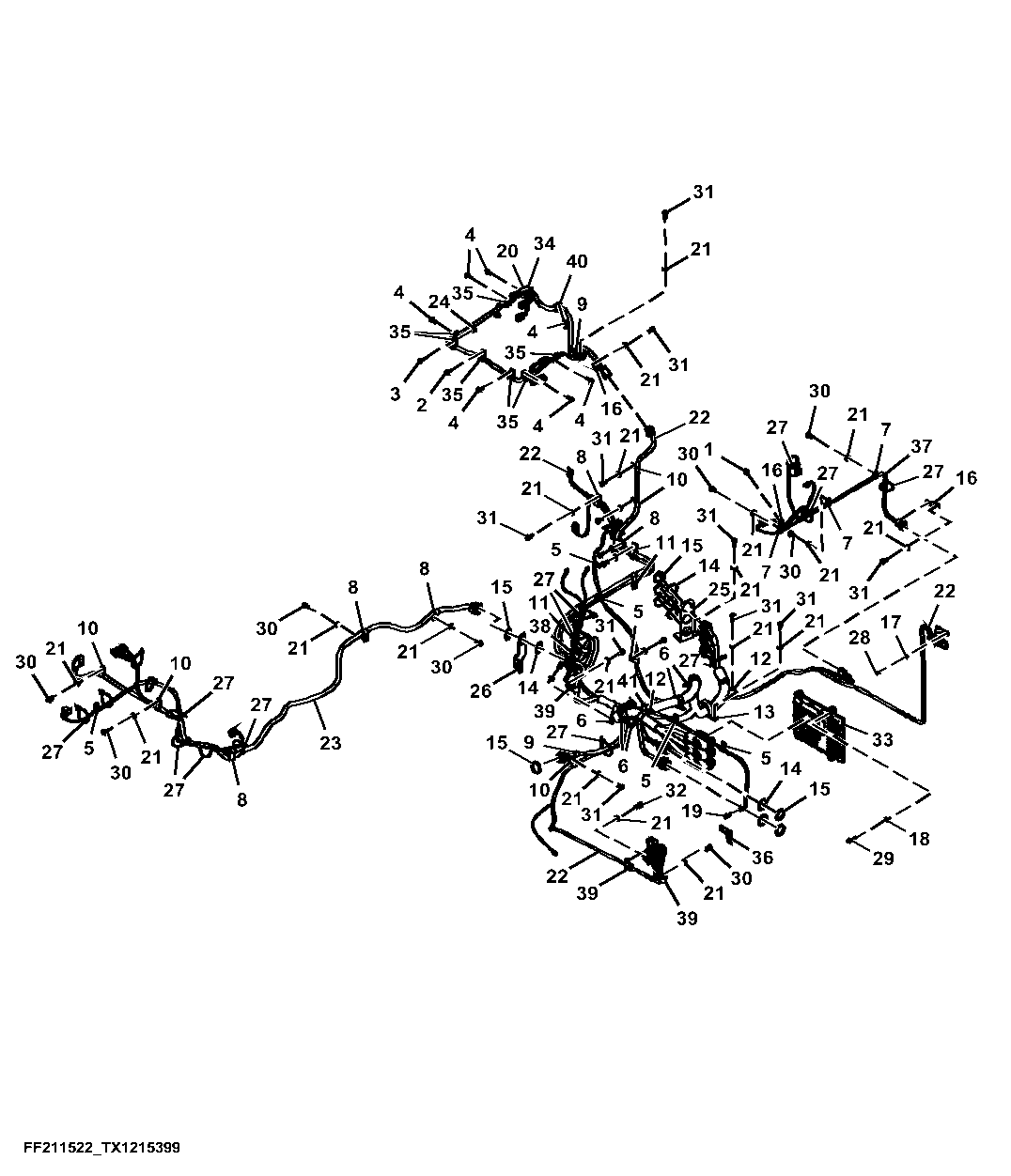

Engine Control Unit (ECU) and Engine Interface Wiring Harness ( - 212089)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7865	1	Screw	M8 X 16
2	19M7866	1	Screw	M8 X 20
3	19M7868	1	Screw	M8 X 30
4	19M9837	7	Screw	M8 X 25
5	4190275	6	Clamp	SUB FOR 4190261
6	N198631	5	Clamp	SUB FOR 4190265
7	AH79175	3	Clip	SUB FOR 4190272
8	T28949	5	Clamp	SUB FOR 4190273
9	4190274	2	Clip	-
10	4190275	5	Clamp	-
11	T32854	4	Clamp	SUB FOR 4190282
12	4193848	2	Clip	SUB FOR 4190291
13	FFSB105404	1	Clamp	-
14	57M7765	5	Lock Washer	-
15	E73240	5	Nut	42.875 mm (1-11/16"), SUB FOR 57M8035
16	57M8736	3	Elec. Connector Accessory	-
17	24M7054	2	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
18	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
19	AT228722	1	Indicator Lamp	24 V
20	AT450646	1	Wiring Harness	Aftertreatment Device
21	24M7346	30	Washer	11 X 20 X 2 mm, SUB FOR DH400703
22	FF217777	1	Wiring Harness	Engine Interface
23	FF217778	1	Wiring Harness	Diesel Exhaust Fluid
24	FF513863	1	Spacer	-
25	FF520117	1	Bracket	-
26	FF529062	1	Bracket	-
27	H77698	17	Tie Band	SUB FOR FFSB108261
28	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
29	19M7301	4	Cap Screw	M8 X 40, SUB FOR J900840
30	19M7938	8	Cap Screw	M10 X 20, SUB FOR J901020
31	19M7402	21	Cap Screw	M10 X 25, SUB FOR J901025
32	19M7662	1	Cap Screw	M10 X 30, SUB FOR J901030
33	RE548097	1	Engine Controller	-
34	T269641	2	Clamp	-
35	T271650	7	Clamp	-
36	T353252	1	Label	Battery Disconnect
37	FF223125	1	Wiring Harness	Cooling And Fan
38	4193848	1	Clip	SUB FOR 4190264
39	4190277	3	Clamp	-
40	T269640	1	Clamp	-
41	-	1	Part 41	MF FFSB110281 CTL 75 mm (2.95 in.), FF226555 NLA

Engine Control Unit (ECU) and Engine Interface Wiring Harness ( - 212089)
