TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL38634	1	Dipstick	(SUB FOR AL27108)
2	15H562	2	Pipe Plug	1", 1"
2	15H562	1	Pipe Plug	1", 1"
3	19H1813	1	CAP SCREW	5/16" X 5/8", 5/16"X5/8"
4	L31806	1	Strap	-
5	T21101	1	Clamp	-
6	12M7056	1	Lock Washer	8 mm
7	14H785	1	Nut	5/16", 5/16"
8	M1102T	3	PLUG	-
9	L62898	1	Valve Spool	(SUB FOR R39294)
10	T24999	1	Spring	ORDER R31698
10	R31698	1	SPRING	-
11	T22853	1	SLEEVE	-
12	F3171R	1	O-Ring	-
13	L32704	1	Threaded Nipple	1-1/16"
14	R26448	2	O-Ring	-
15	R27218	2	Fitting Plug	-
16	R27175	1	Drain Plug	1-1/16"
17	34H247	2	Spring Pin	1/8" X 3/4", 1/8"X3/4"
18	R39112	1	Fitting	3/4"
19	R26375	1	O-Ring	-
20	R53169	1	Screen	-
21	51M4282	1	RING	38X44X2.5MM, ORDER 51M4249
21	51M4249	1	Sealing Ring	38X44X2.5MM
22	R40147	1	FITTING	1-1/2"
23	T21937	1	Plug	-
24	15H584	1	Pipe Plug	1/2", 1/2"
25	R53802	2	Cap Screw	1/2"X1/2"
26	R27490	1	O-Ring	(WITH HANDBRAKE)
27	T21776	1	SCREW	(WITH HANDBRAKE)
28	14H971	1	NUT	(WITH HANDBRAKE) 1/2", 1/2"
29	R27003	1	Washer	-
30	T18891	1	Plug	-
31	19H2510	6	Cap Screw	1/2" X 1-5/8", 1/2"X1-5/8"
32	T20168	8	Washer	-
33	R51895	1	Fitting	1", ORDER L41295
33	L41295	1	Drain Plug	-
33	R27474	2	Drain Plug	7/8", (FOR AL66797)
34	A4827R	2	Washer	-
34	R26906	2	O-Ring	(FOR AL66797)
35	19H2735	2	Cap Screw	1/2" X 2", 1/2"X2"
36	T17882	1	WASHER	-
37	L62644	1	Cover	(SUB FOR T22854, L56771)
38	19H2021	2	Cap Screw	3/8" X 5/8", 3/8"X5/8"
39	L41547	1	O-Ring	-
40	L41534	1	Pipe Plug	1-1/2"
41	AL39878	1	Pipe Plug	1-5/16"
42	R26552	1	Ball	(WITH MANUAL STEERING)

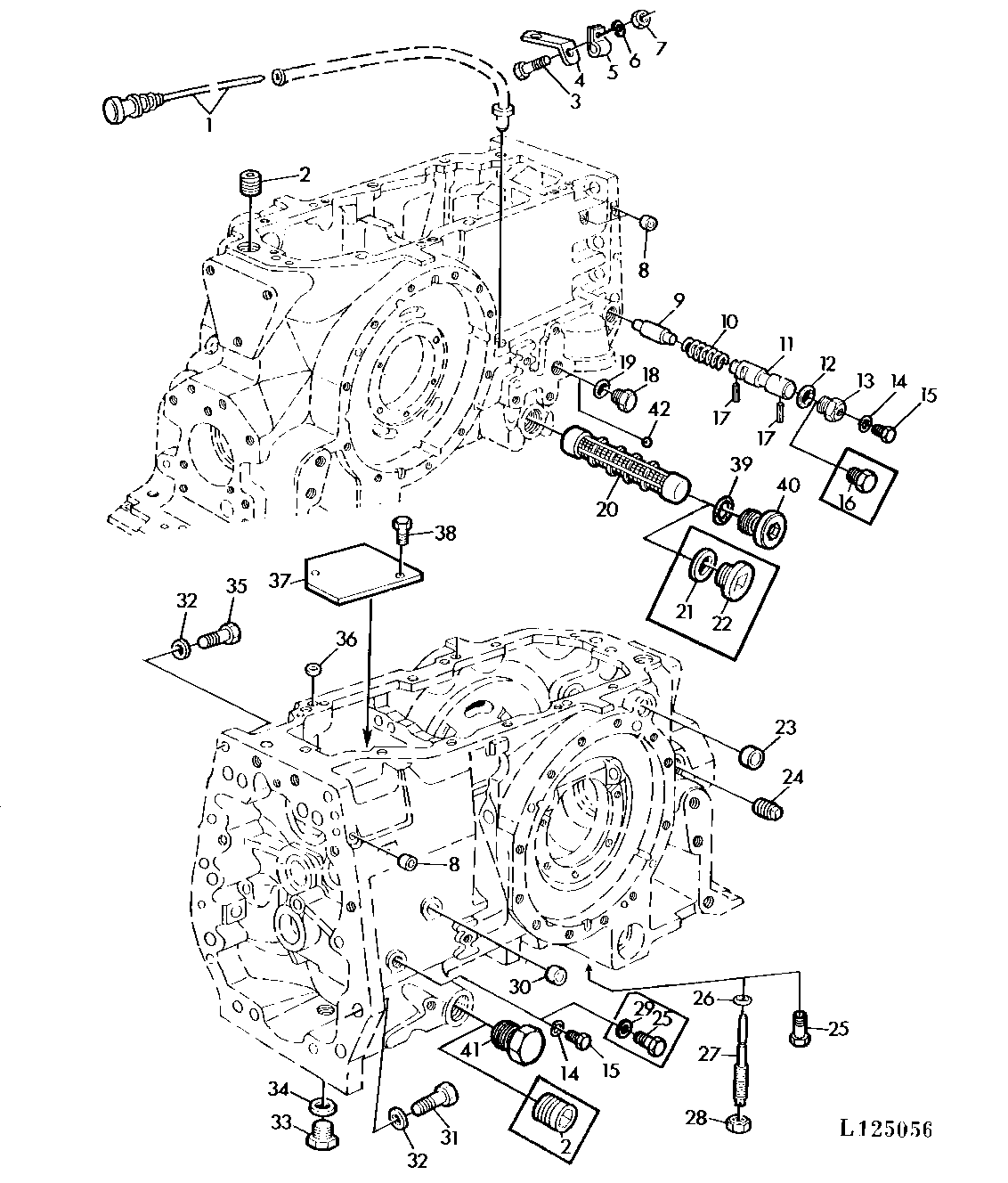

TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION)
