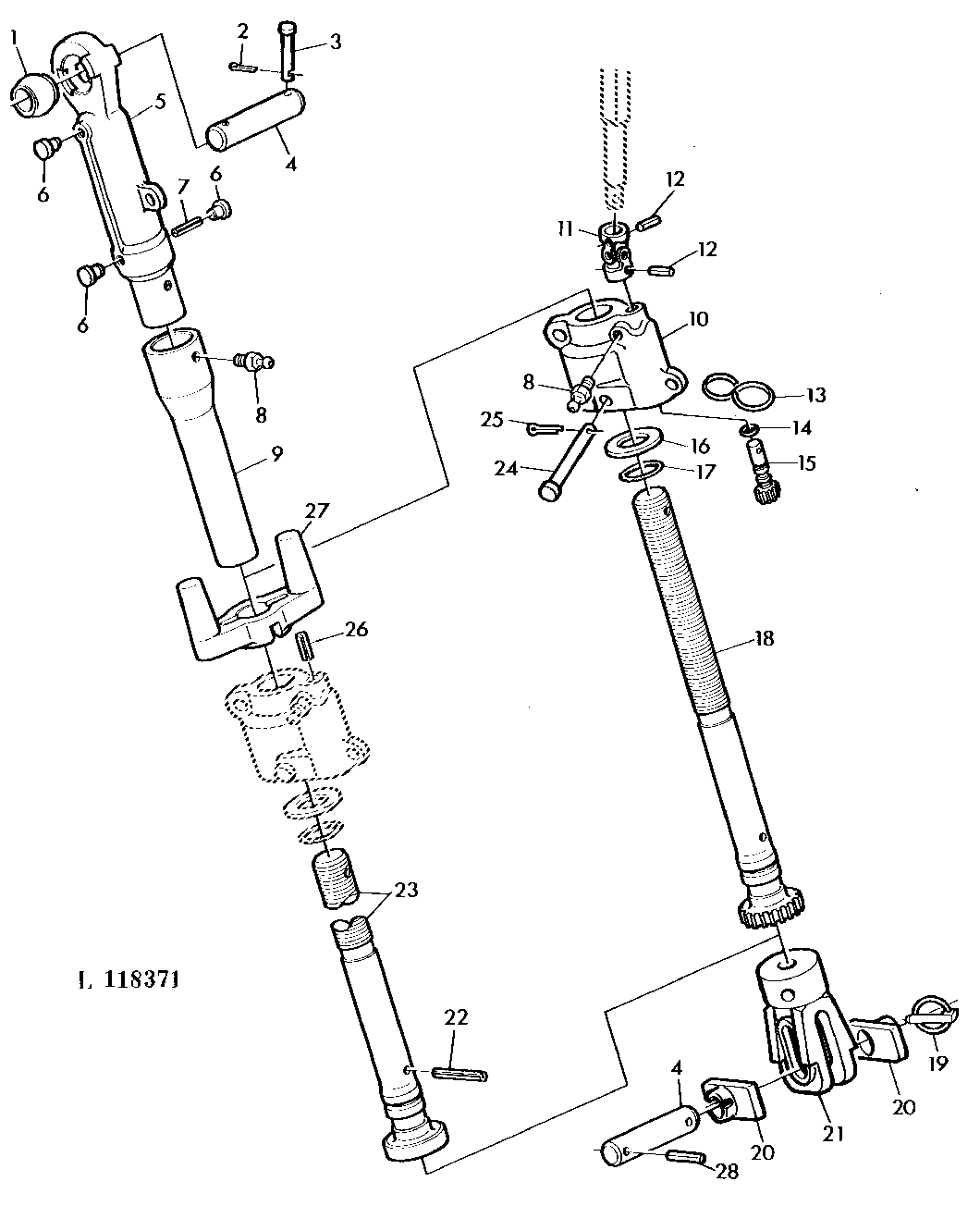

THREE POINT HITCH LIFT LINKS RH (WITH INCREASED LIFTING CAPACITY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T21901	1	Ball	-
2	11H211	1	COTTER PIN	1/8" X 3/4", 1/8"X3/4"
3	R69166	1	Pin	(SUB FOR L56181)
4	L42058	2	Pin Fastener	-
5	L42056	1	Link Body	-
6	99M5913	3	Plug	-
7	34H282	1	Spring Pin	3/16" X 1", 3/16"X1"
8	JD7798	2	Lubrication Fitting	-
9	L41146	1	Powershaft Shield	-
10	L39213	1	Housing	-
11	AL36196	1	Universal Joint	-
12	34M7141	2	Spring Pin	5 X 30 mm, 5X30MM
13	L41718	1	Hook	-
14	L53976	1	O-Ring	-
15	L31648	1	Shaft	-
16	L31653	1	Washer	-
17	L53975	1	O-Ring	-
18	L42055	1	Lift Link	-
19	AL14540	1	Quick Lock Pin	-
20	L42059	2	Guide	-
21	L42057	1	Yoke	-
21	L55131	1	Yoke	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT)
22	34M7043	1	Spring Pin	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT) 6 X 45 mm, 6X45MM
23	L42054	1	Lift Link	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT)
24	45M7030	1	Pin Fastener	16 X 95 mm
25	11M7020	1	COTTER PIN	4 X 22 mm, 4X20MM
26	34M7109	1	Spring Pin	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT) 13 X 32 mm, 13X32MM
27	L41147	1	Grip	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT)
28	34M7047	1	Spring Pin	8 X 40 mm, 8X40MM

THREE POINT HITCH LIFT LINKS RH (WITH INCREASED LIFTING CAPACITY)
