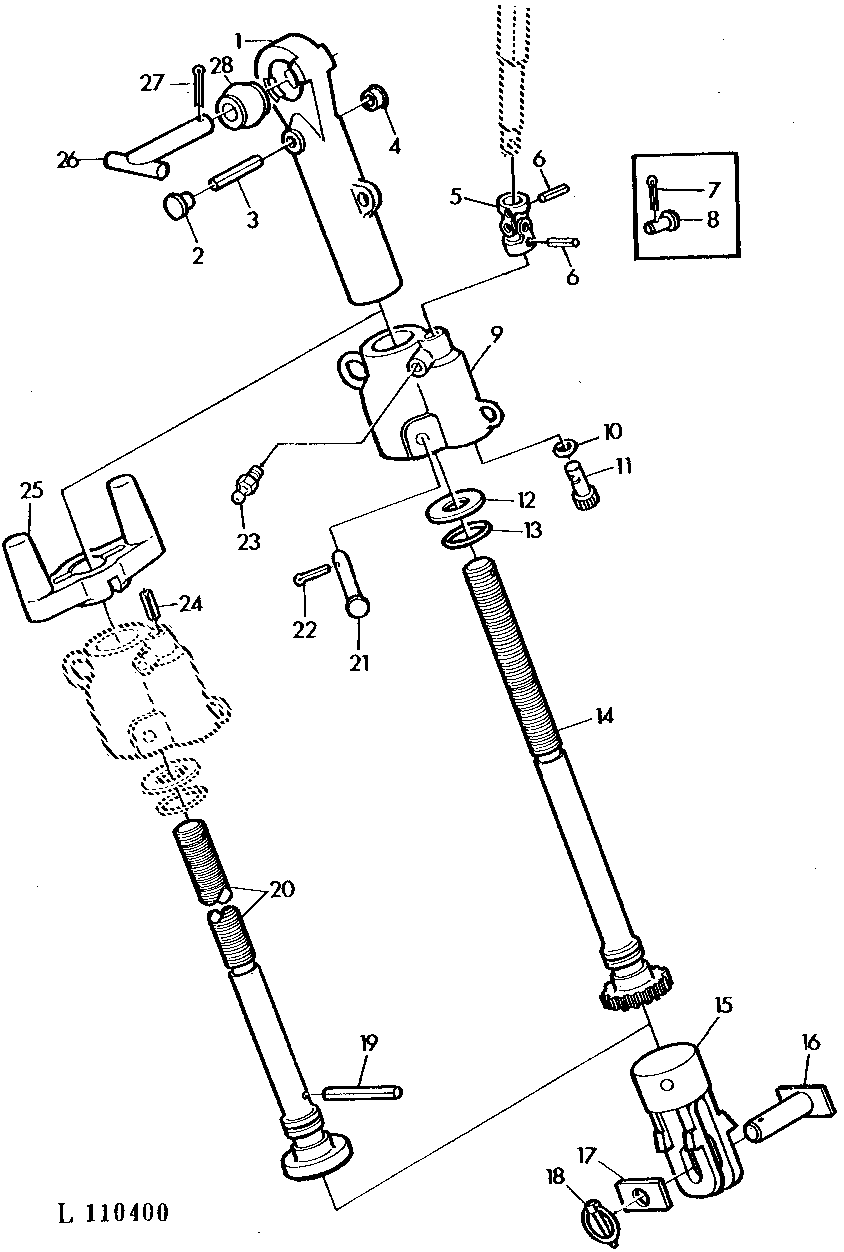

THREE POINT HITCH LIFT LINKS RH (SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L33539	1	Link Body	-
2	99M6986	1	PLUG	-
3	34H282	1	Spring Pin	3/16" X 1", 3/16"X1"
4	58M6987	1	LUBRICATION FITTING	-
5	AL36196	1	Universal Joint	-
6	34M7141	2	Spring Pin	5 X 30 mm, 5X30MM
7	11M7075	2	Cotter Pin	1.200 X 12 mm, 1.2X12MM
8	45M7069	2	Pin Fastener	5 X 35 mm, 5X35MM
9	L39213	1	Housing	(SUB FOR L31642)
10	L53976	1	O-Ring	10X1.5MM
11	L31648	1	Shaft	Z= 8
12	L31653	1	Washer	-
13	L53975	1	O-Ring	29X3MM
14	L31655	1	Lift Link	Z= 27, RH
15	L38625	1	YOKE	-
16	AR55695	1	Pin Fastener	-
17	T21759	1	STRAP	-
17	L39249	1	Strap	(WITH AXLA TRAILER HITCH)
18	AL14540	1	Quick Lock Pin	-
19	34M7043	1	Spring Pin	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT) 6 X 45 mm, 6X45MM
20	L42025	1	Lift Link	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT)
21	45M7030	1	Pin Fastener	16 X 95 mm, 11X95MM
22	11M7020	1	COTTER PIN	4 X 22 mm, 4X22MM
23	JD7798	1	Lubrication Fitting	1/8"
24	34M7109	1	Spring Pin	(WITH SIMPLIFIED LIFT LINK ADJUSTMENT) 13 X 32 mm, 13X32MM
25	L41147	1	Grip	-
26	AT21754	1	PIN	-
27	11H218	1	Cotter Pin	3/16" X 1-1/2", 3/16"X1-1/2"

THREE POINT HITCH LIFT LINKS RH (SG2 CAB)
