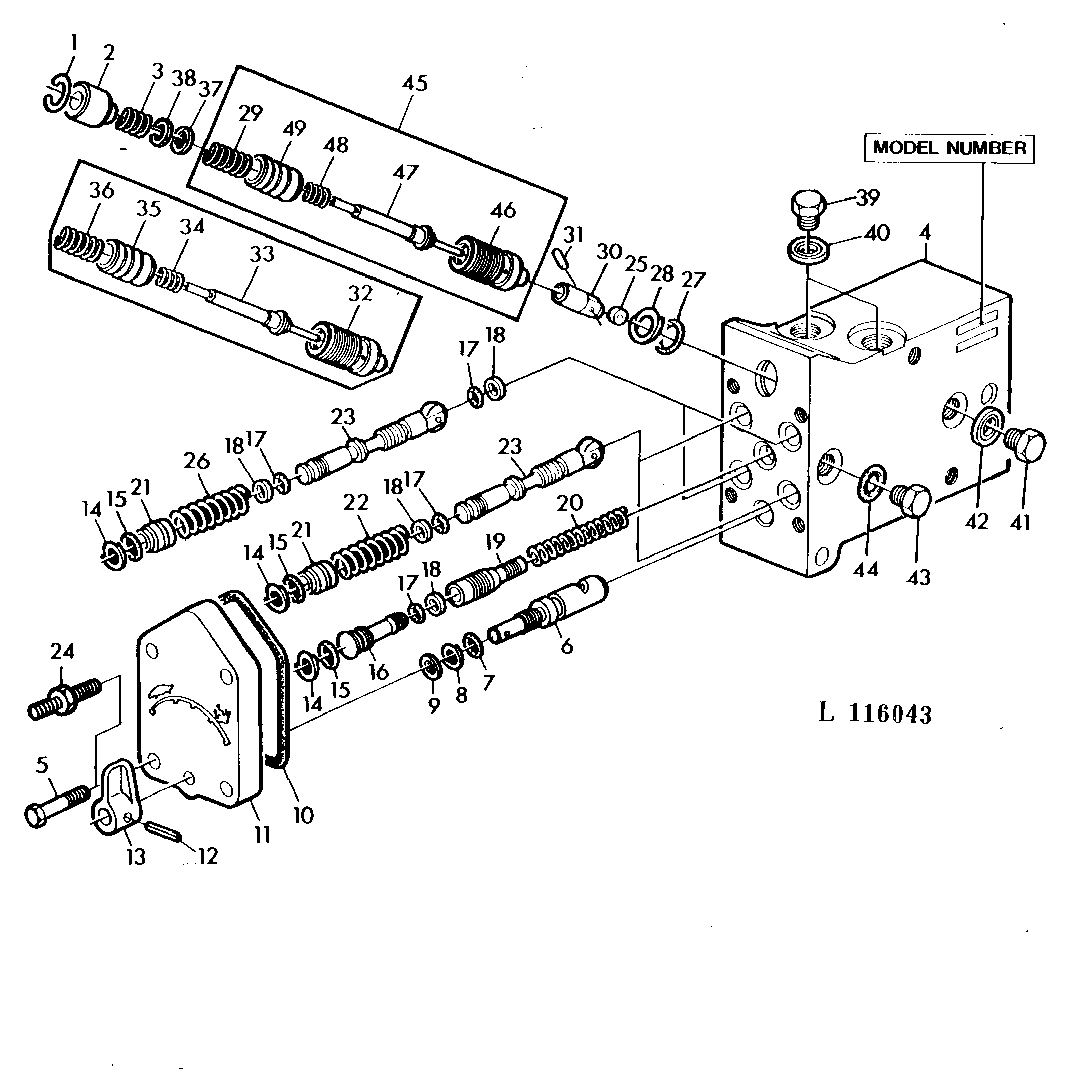

SELECTIVE CONTROL VALVE (POPPET TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46722	1	Snap Ring	-
2	R70979	1	Guide	(MODEL NUMBER) (ORDER RE15926, R79778) 36SC1
2	R79778	1	Guide	(MODEL NUMBER) 36SC2
3	R64607	1	Spring	-
4	RE22582	1	Housing	(MODEL NUMBER) 36SC1 OR 36SC2
5	19H2545	4	CAP SCREW	3/8" X 1-3/8", 3/8"X1-3/8"
6	R70034	1	Valve	-
7	P46051	1	O-Ring	-
8	R40937	1	Back-Up Ring	-
9	R41339	1	Shim	-
10	R74695	1	Washer	(SUB FOR R49187)
11	R59629	1	Cap	-
12	34H231	1	SPRING PIN	3/32" X 3/4", 3/32"X3/4"
13	R62652	1	Arm	-
14	R41057	5	BACK-UP RING	-
15	R27166	5	O-Ring	-
16	R71054	1	Control Valve	-
17	A3917R	7	O-Ring	(SUB FOR R65286)
18	R26484	7	Back-Up Ring	-
19	R71055	1	Valve	-
20	R71056	1	Spring	-
21	R66416	4	Bushing	-
22	R65501	2	Spring	-
23	AR86535	4	Valve	-
24	R39225	4	Stud	(WITH SG2 CAB)
25	R51409	1	SPACER	-
26	R65502	2	Spring	-
27	B2762R	1	O-Ring	-
28	R26546	1	BACK-UP RING	-
29	R79774	1	Spring	(MODEL NUMBER) 36SC2
30	R70985	1	Cam Follower	-
31	R51411	1	Pin	-
32	R70986	1	Detent	(MODEL NUMBER) (ORDER RE15926, R79778) 36SC1
33	R70987	1	Spring Pin	(MODEL NUMBER) (ORDER RE15926, R79778) 36SC1
34	R70978	1	Spring	(MODEL NUMBER) (ORDER RE15926, R79778) 36SC1
35	R70968	1	Piston	(MODEL NUMBER) (ORDER RE15926, R79778) 36SC1
36	R65812	1	Spring	(MODEL NUMBER) (ORDER RE15926, R79778) 36SC1
37	24H1289	1	Washer	21/64" X 5/8" X 0.049", 21/64"X5/8"X0.048"
38	R43816	1	Snap Ring	-
39	R39112	1	Fitting	-
40	R26375	1	O-Ring	-
41	R41155	1	Fitting Plug	-
42	AR26697	1	Sealing Washer	-
43	R27218	1	Fitting Plug	-
44	R26448	1	O-Ring	-
45	RE15926	1	Detent	(MODEL NUMBER) 36SC2
46	R79777	1	Detent	(MODEL NUMBER) 36SC2
47	R79775	1	Spring Pin	(MODEL NUMBER) 36SC2
48	R79773	1	Spring	(MODEL NUMBER) 36SC2
49	R79776	1	Piston	(MODEL NUMBER) 36SC2

SELECTIVE CONTROL VALVE (POPPET TYPE)
