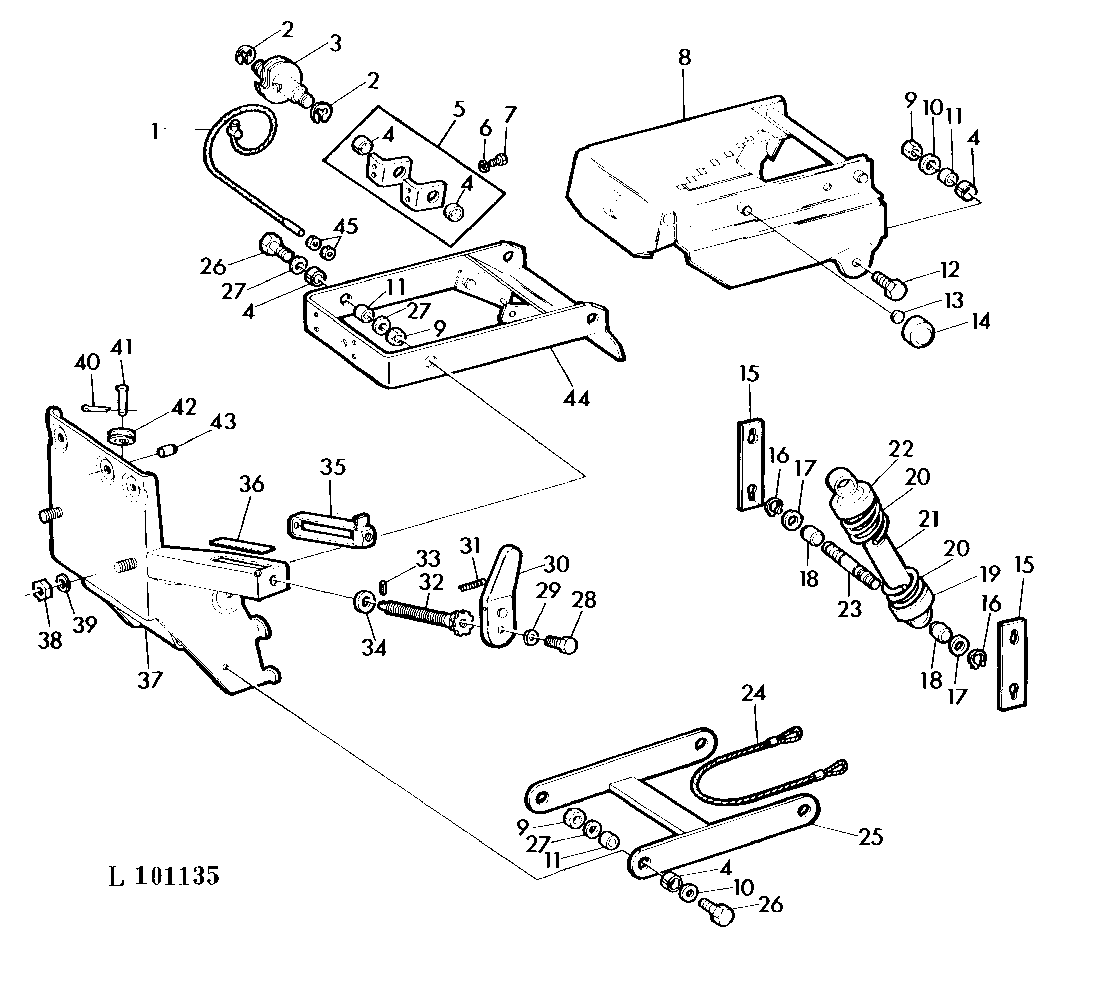

SEAT SUSPENSION (PERSONAL POSTURE SEAT WITH SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR79813	1	Cable	USE WITH RE11426
1	AR72840	1	CABLE	UP, USE WITH AR72056
2	R27434	2	Snap Ring	-
3	AR72842	1	REEL	-
4	R51648	10	WASHER	-
5	AR72848	2	BRACKET	-
6	12M7056	4	Lock Washer	8 mm
7	19H2127	4	Cap Screw	5/16" X 7/8", 5/16"X7/8"
8	AR71099	1	FRAME	-
9	C744DN	8	LOCK NUT	-
10	R27441	8	Washer	-
11	R51649	8	Bearing Race	-
12	19H2552	4	CAP SCREW	3/8" X 1-1/8", 3/8"X1-1/8"
13	R26872	1	SOLID SHIM	0.25MM (.010")
13	R26873	1	Solid Shim	0.51MM (.020")
14	R26436	4	ROLLER	-
15	R60024	2	LINK	-
16	F2863R	2	Snap Ring	-
17	R1836R	2	Washer	-
18	R26832	2	BUSHING	-
19	R26879	1	CAP	LOW
20	R60319	1	SPRING	-
21	AR71976	1	SHOCK ABSORBER	-
22	R27442	1	CAP	UP
23	R60025	1	SHAFT	-
24	AR72841	1	CABLE	LOW
25	AR71098	1	Frame	-
26	19H1800	4	Cap Screw	3/8" X 1-1/2", 3/8"X1-1/2"
27	R53436	4	Washer	-
28	R72371	1	Cap Screw	(SUB FOR R43569)
29	24H1305	1	Washer	13/32" X 13/16" X 0.065", 13/32"X13/16"X.060"
30	AR73562	1	LEVER	-
31	R60657	1	SPRING	-
32	AR73561	1	SCREW	-
33	34H228	1	SPRING PIN	3/32" X 9/16", 3/32"X9/16"
34	R60021	1	Washer	-
35	AR72838	1	FORK	-
36	R65442	1	LABEL	-
37	AR72056	1	SUPPORT	(ORDER RE11426, AR79813)
37	RE11426	1	Support	-
38	14H1040	4	Nut	1/2", 1/2"
39	24M7047	4	Washer	13 X 24 X 2.500 mm, 13X24X2.5MM
40	11H206	1	Cotter Pin	3/32" X 3/4", 3/32"X3/4"
41	R31044	1	Pin Fastener	-
42	R60019	1	IDLER	-
43	R59792	1	CAP	-
44	AR71097	1	ARM	-
45	14H850	2	NUT	1/4", 1/4"

SEAT SUSPENSION (PERSONAL POSTURE SEAT WITH SG2 CAB)
