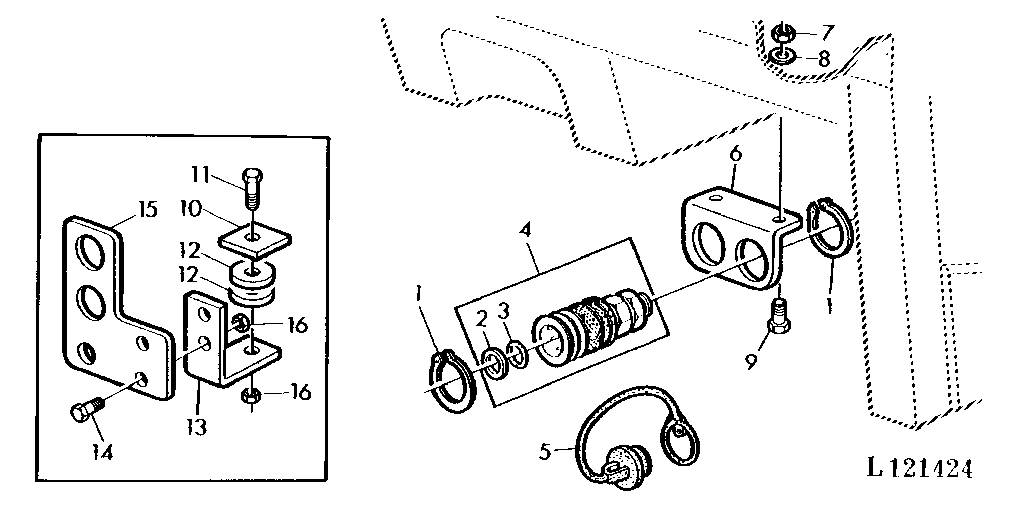

QUICK DISCONNECT COUPLERS, REAR FOR THREE S.C. VALVES (WITH INCREASED LIFT CAPACITY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	40M7062	1	Snap Ring	-
2	L40691	1	Back-Up Ring	-
3	L40690	1	O-Ring	-
4	AL172304	1	Hydr. Quick Coupler Socket	SUB FOR AL41599
5	L62751	1	Dust Shield	(SUB FOR A15899)
6	L41080	1	Angle	-
7	14M7273	2	Nut	M8, M8
8	24M7039	2	Washer	9 X 28 X 3 mm, 9X17X1.6MM
9	19M7139	2	Cap Screw	M8 X 20, M8X20
10	L34166	1	Strap	(WITH 6 QUICK DISCONNECT COUPLERS)
11	19M7183	1	Cap Screw	(WITH 6 QUICK DISCONNECT COUPLERS) M10 X 40, M10X40
12	24M7149	2	WASHER	(WITH 6 QUICK DISCONNECT COUPLERS) 10.500 X 30 X 2.500 mm, 10.5X30X2.5MM
13	L57361	1	Angle	(WITH 6 QUICK DISCONNECT COUPLERS)
14	19M7167	2	Cap Screw	(WITH 6 QUICK DISCONNECT COUPLERS) M10 X 25, M10X25
15	L57362	1	Plate	(WITH 6 QUICK DISCONNECT COUPLERS)

QUICK DISCONNECT COUPLERS, REAR FOR THREE S.C. VALVES (WITH INCREASED LIFT CAPACITY)
