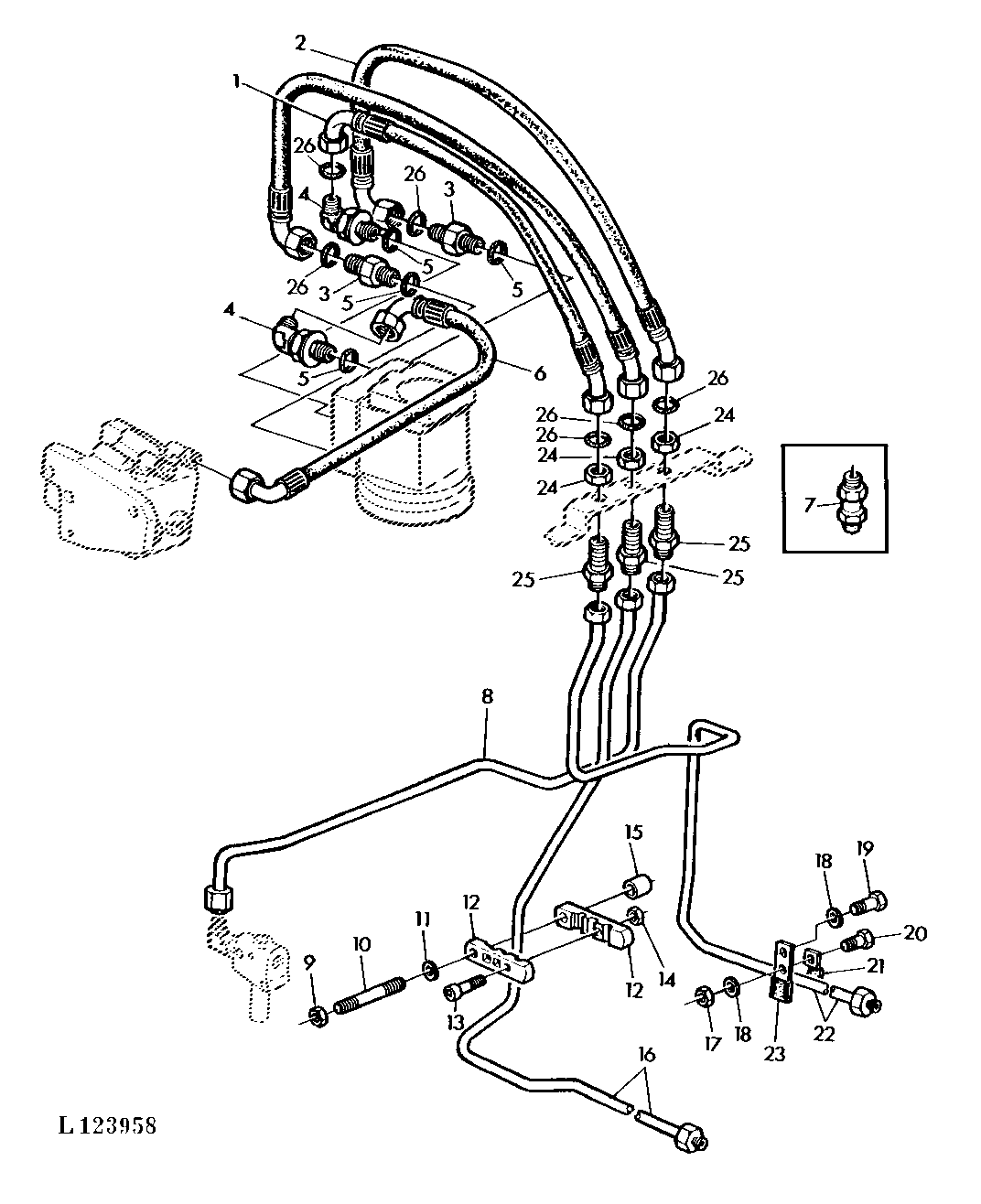

HYDROSTATIC STEERING WITH FRONT WHEEL DRIVE-APL 345 (SG2 CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL41620	1	Hydraulic Hose	(WITH CENTER SHIFT. FROM SER.NO.548181)
2	AL41621	2	Hydraulic Hose	(WITH CENTER SHIFT. FROM SER.NO.548181)
3	L41898	2	Fitting	(WITH CENTER SHIFT. FROM SER.NO.548181)
4	AL41290	2	Elbow Fitting	(WITH CENTER SHIFT. FROM SER.NO.548181)
5	L41383	4	Ring	(WITH CENTER SHIFT. FROM SER.NO.548181)
6	AL35000	1	Hydraulic Hose	(WITH CENTER SHIFT. FROM SER.NO.548181)
7	AL32895	3	Union Fitting	(WITH CENTER SHIFT. FROM SER.NO.548181) (ORDER L63538, 14M7477)
8	AL37488	1	Oil Line	(WITH CENTER SHIFT. FROM SER.NO.548181) (SUB FOR AL35140)
9	14H1076	1	Nut	(WITH CENTER SHIFT. FROM SER.NO.548181) 3/8", 3/8"
10	L38319	1	Stud	-
11	24H1305	1	Washer	13/32" X 13/16" X 0.065", 13/32"X13/16"X.060"
12	L37549	2	Clamp	-
13	19M7966	1	Screw	M6 X 25, M6X25
14	14M7272	1	Nut	M6, M6
15	28H1697	1	Spacer	0.493" X 0.675" X 3/4", 3/8"X3/4"
16	AL57815	1	Oil Line	(WITH FRONT PTO)
16	AL35017	1	Oil Line	(WITH CENTER SHIFT. FROM SER.NO.548181)
17	14M7275	1	Nut	(WITH CENTER SHIFT. FROM SER.NO.548181) M12, M12
18	24M7145	2	Washer	(WITH CENTER SHIFT. FROM SER.NO.548181) 15 X 24 X 2.500 mm, 15MM
19	19H2353	1	Cap Screw	(WITH CENTER SHIFT. FROM SER.NO.548181) 9/16" X 1", 9/16"X1"
20	19M7386	1	Cap Screw	(WITH CENTER SHIFT. FROM SER.NO.548181) M12 X 20, M12X20
21	L28744	1	Clamp	(WITH CENTER SHIFT. FROM SER.NO.548181) (SUB FOR R28538)
22	AL57816	1	Oil Line	(WITH FRONT PTO)
22	AL37127	1	Hydraulic Hose	(WITH CENTER SHIFT. FROM SER.NO.548181)
23	L37268	1	Strap	(WITH CENTER SHIFT. FROM SER.NO.548181)
24	14M7477	3	Nut	(WITH CENTER SHIFT. FROM SER.NO.548181) M18, M18X1.5
25	L63538	3	Union Fitting	(WITH CENTER SHIFT. FROM SER.NO.548181)
26	Z27993	1	O-Ring	-
