HYDROSTATIC STEERING-STEERING COLUMN/CONSOLE SHIFT (SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L64214	1	Bushing	(SUB FOR R50875)
2	R62280	1	Shaft	-
3	AR54808	1	Rod	-
4	JD9931	4	Thrust Bearing Race	-
5	JD8875	2	Needle Bearing	-
6	R50869	1	Splined Coupling	-
7	L38629	1	Steering Shaft	-
8	R42629	1	WASHER	-
9	P46402	4	Snap Ring	-
10	R55498	1	Bushing	-
11	L39033	1	Hollow Screw	-
12	19H1721	2	CAP SCREW	1/2" X 1-1/2", 1/2"X1-1/2"
13	24H1789	2	Washer	17/32" X 1-1/4" X 0.105", 13.5X32X2.7MM
14	L56566	2	Bushing	-
15	R64704	2	Bushing	(ORDER L56566, T27645, 19H1721, 24H1798)
16	19H1792	2	Cap Screw	1/2" X 1", 1/2"X1"
17	T27645	2	NUT	-
18	L65007	2	Guard	(SUB FOR L37189, L39233)
19	R67938	1	Shim	-
20	14H1076	1	Nut	3/8", 3/8"
21	12H304	1	Lock Washer	3/8", 3/8"
22	R58614	1	Spacer	-
23	19H3181	1	CAP SCREW	3/8" X 2", 3/8"X2"
24	AL57743	1	Lever	-
25	R59953	1	Extension Spring	-
26	19H2284	4	Cap Screw	3/8" X 7/8", 3/8"X7/8"
27	12M7135	4	Lock Washer	10 mm
28	19M7166	4	Cap Screw	M10 X 20, M10X20
29	AL38553	1	Tube	(SUB FOR AL37351)
30	R72858	1	Seal	(SUB FOR R32730)
31	R51153	1	Sleeve	-
32	AR78405	1	Steering Wheel	(SUB FOR AL28457)
33	T17148	1	Lock Washer	-
34	14H904	1	Nut	3/4", 3/4"
35	R50871	1	Knob	(ORDER R117246, (2) L100436)
35	R117246	1	Knob	(SUB FOR R91298)
36	12M7056	1	Lock Washer	8 mm
37	14H650	1	Nut	5/16", 5/16"
38	B3690R	1	O-Ring	-
39	AL36533	1	COVER	OD= 74MM
40	AL38552	1	Lever	(ORDER AL57743, L55209) (SUB FOR AR70442)
41	L55209	1	Grip	-
42	L61603	1	Washer	(ORDER (2) L100436)
43	L100436	2	Washer	-

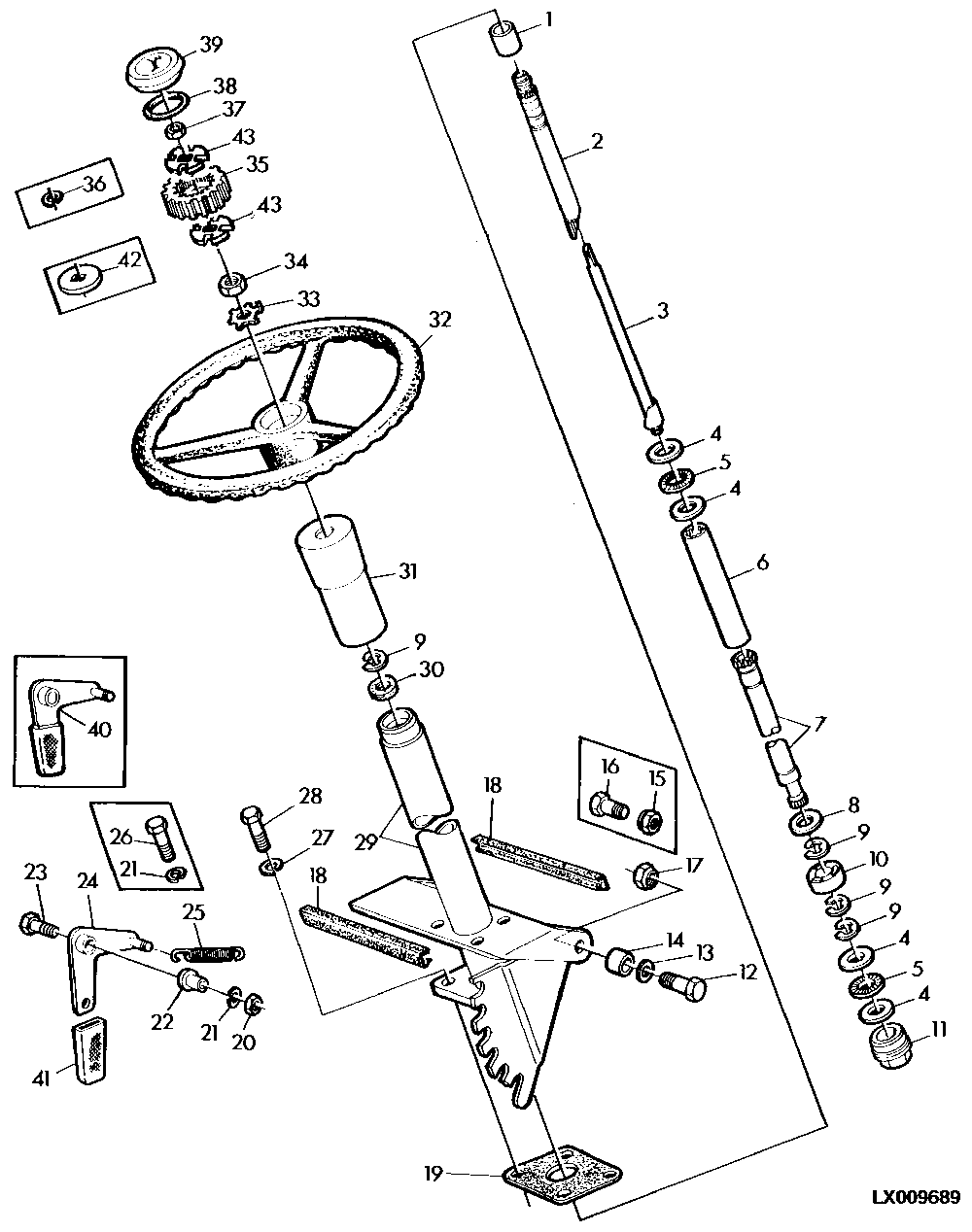

HYDROSTATIC STEERING-STEERING COLUMN/CONSOLE SHIFT (SG2 CAB)
