HYDRAULIC TRAILER BRAKE WITH INCREASED LIFTING CAPACITY (SG2 CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL160559	1	Hyd. Quick-Connect Coupler	(SUB FOR AR52361)
2	AL39859	1	Hydr. Quick Coupler Plug	-
3	14M7257	1	Nut	M20
4	L41526	1	O-Ring	-
5	L41525	1	Fitting	-
6	AL55028	1	Oil Line	-
7	R27139	2	FITTING	-
8	R26287	8	O-Ring	-
9	AL25103	2	Valve	(ORDER L30719, L30720, L30721, L30722, R26448)
10	L30719	2	Valve	-
11	L30722	2	Poppet	-
12	L30720	2	Compression Spring	-
13	R26448	4	O-Ring	-
14	L30721	2	Valve Cover	-
15	L38240	1	Adapter Fitting	-
16	AR26746	3	Elbow Fitting	-
17	14M7274	2	Nut	M10
18	AL39852	1	Bracket	(ORDER AL58729, Z23870)
19	19H1936	1	Cap Screw	3/8" X 3/4", 3/8"X3/4"
20	L37858	1	Fitting	-
21	AL39854	1	Oil Line	-
22	AL39855	1	Oil Line	-
23	24M7028	1	Washer	10.500 X 20 X 2 mm
24	19H1732	1	Cap Screw	3/8" X 1-1/4", 3/8"X1-1/4"
25	AL35582	1	Hydraulic Hose	-
26	51M4234	1	Sealing Ring	-
27	L53811	1	O-Ring	-
28	AL37494	1	Elbow Fitting	1.2MM
28	AL37495	1	Elbow Fitting	1.4MM
29	AL59555	1	Oil Line	(SUB FOR AL55024)
30	19M7724	2	Cap Screw	M10 X 45, M10X45
31	AL36994	1	Tee Fitting	(ORDER AL62904, R26448)
32	R27453	1	Nut	-
33	L39582	1	Fitting	-
34	AR45251	1	Tee Fitting	-
35	AL39857	1	Oil Line	-
36	R78436	1	O-Ring	-
37	AL37332	1	Fitting	-
38	L41524	1	Adapter Fitting	-
39	AL39856	1	Oil Line	-
40	AL19023	1	Tee Fitting	-
41	AL62904	1	Elbow Fitting	-
42	AL58729	1	Bracket	-
43	Z23870	1	Spacer	-

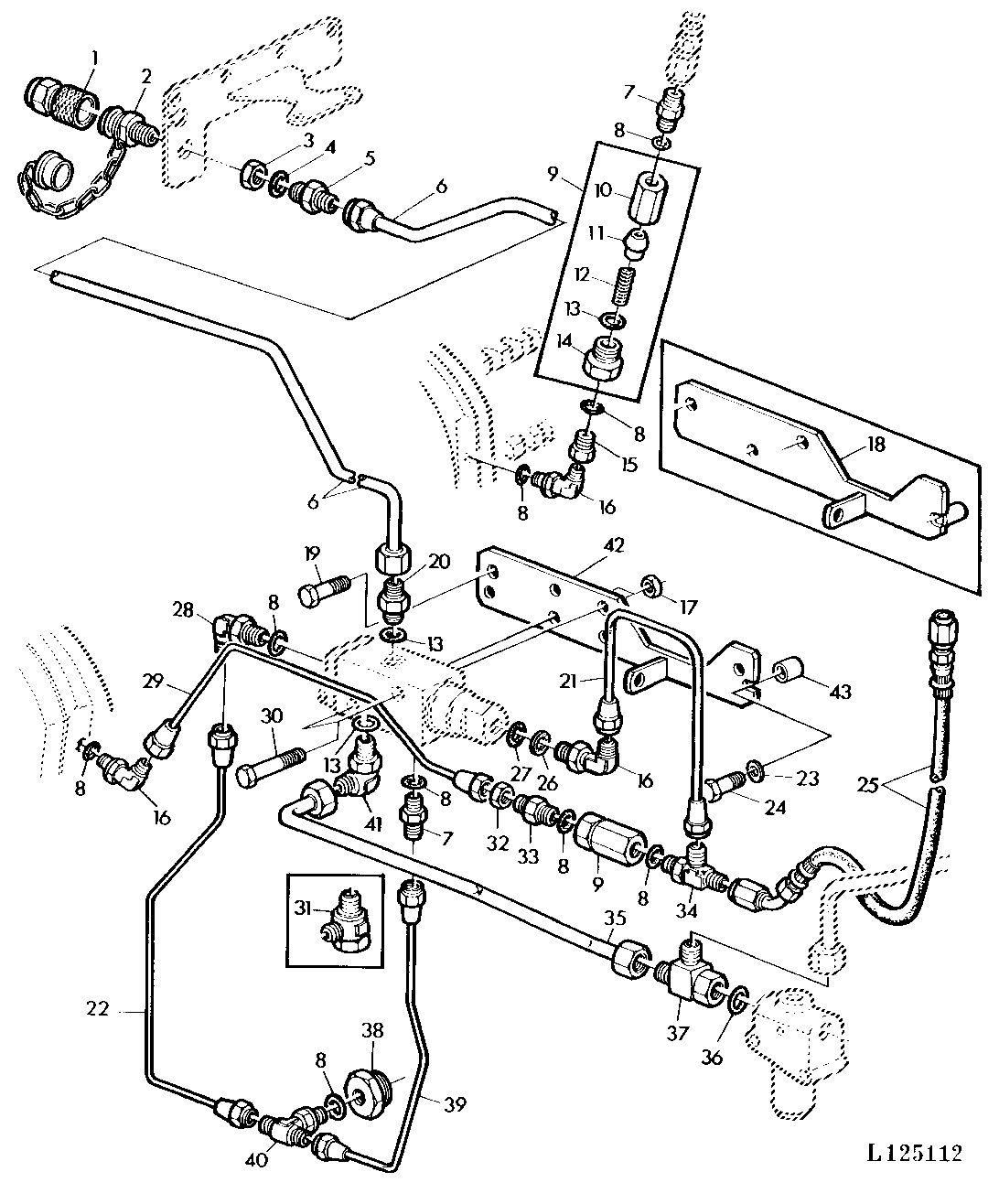

HYDRAULIC TRAILER BRAKE WITH INCREASED LIFTING CAPACITY (SG2 CAB)
