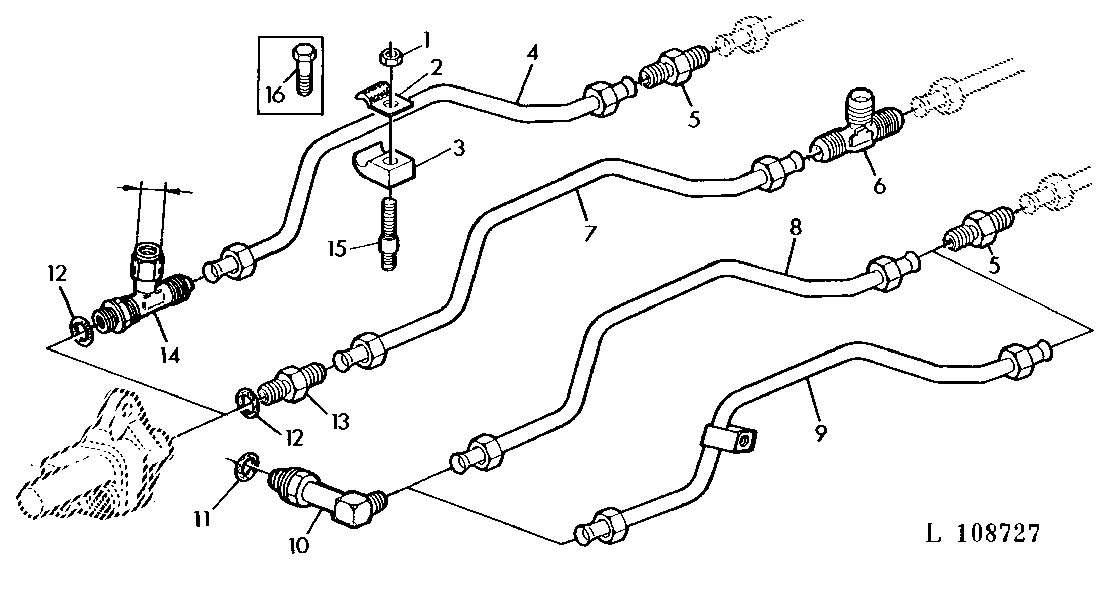

HYDRAULIC LINES WITH MANUAL AND HYDROSTATIC STEERING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1076	1	Nut	3/8", 3/8"
2	L37521	1	Clamp	-
3	L37547	1	Clamp	-
4	AL34788	1	OIL LINE	(WITH HYDROSTATIC STEERING)
5	R35717	1	Fitting	-
6	L38238	1	Tee Fitting	(WITH SG2 CAB) (WITH HYDROSTATIC STEERING)
7	AL35251	1	Oil Line	(WITH SG2 CAB) (WITH HYDROSTATIC STEERING)
8	AL35088	1	OIL LINE	-
9	AL35087	1	Oil Line	(WITH HYDR.TRAILER BRAKES)
10	AL30019	1	ELBOW FITTING	-
11	R26375	1	O-Ring	-
12	R26906	1	O-Ring	-
13	R27270	1	Fitting	(WITH SG2 CAB) (WITH HYDROSTATIC STEERING)
14	AL33569	1	FITTING	(WITH HYDROSTATIC STEERING) 9/16", (ORDER AL37360, L37858)
14	AL37360	1	TEE FITTING	(WITH HYDROSTATIC STEERING) M18
15	T32508	1	Stud	(SUB FOR L39334 APPL)
16	19H1732	1	Cap Screw	3/8" X 1-1/4", 3/8"X1-1/4"

HYDRAULIC LINES WITH MANUAL AND HYDROSTATIC STEERING
