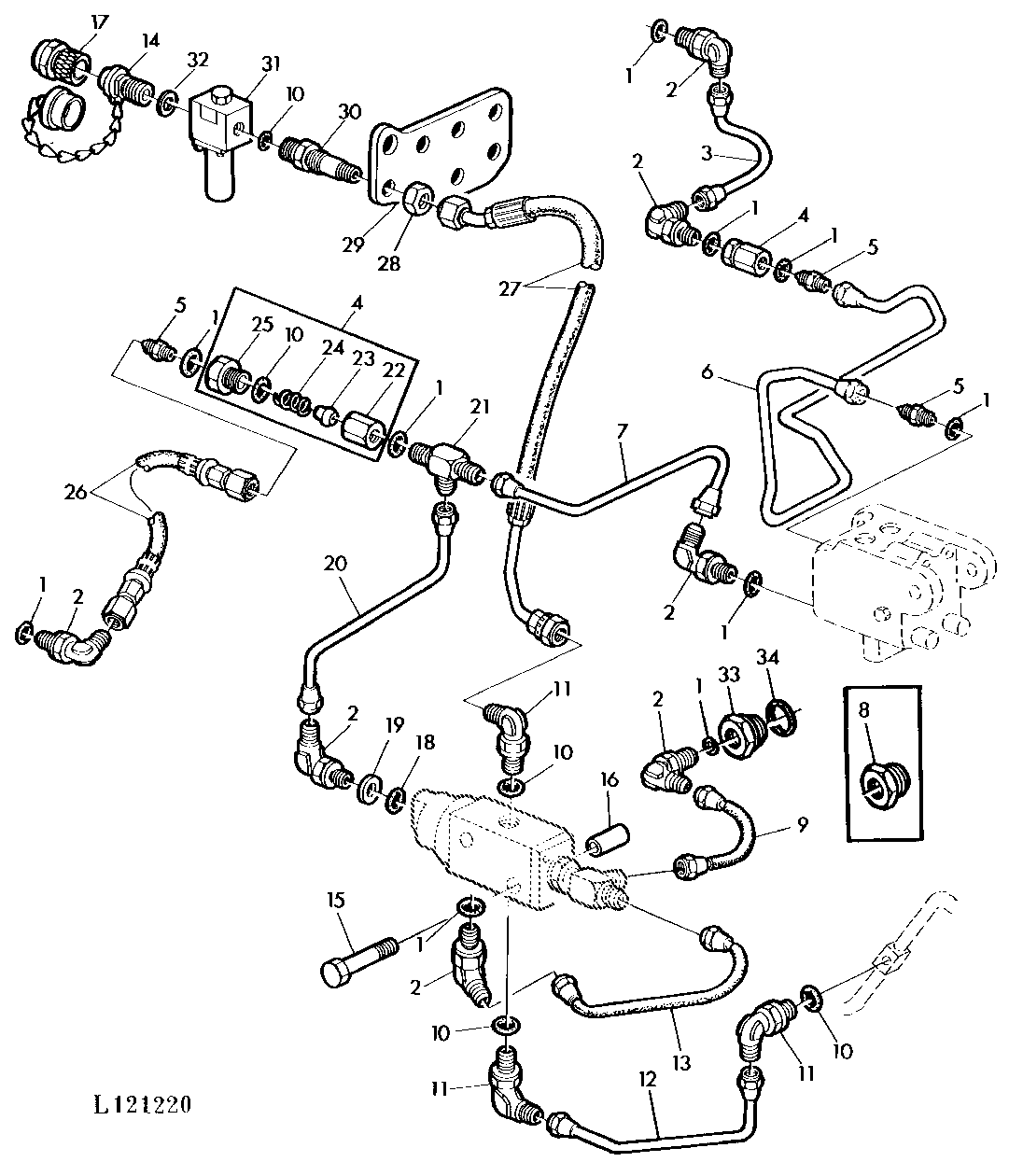

HYDR. TRAILER BRAKE WITH MANUAL OR POWER STEERING (OLD TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26287	10	O-Ring	-
2	AR26746	7	Elbow Fitting	-
3	AL33371	1	Oil Line	-
4	AL25103	2	Valve	(ORDER L30719, L30720, L30721, L30722, R26448)
5	R27139	3	FITTING	-
6	AL33373	1	Oil Line	-
7	AL25110	1	OIL LINE	-
8	L28639	1	Pipe Plug	(ORDER L41524, L41547)
9	AL36122	1	Hose	(SUB FOR AL23076)
10	R26448	6	O-Ring	-
11	AT35121	3	Elbow Fitting	(SUB FOR AR26725)
12	AL35072	1	Oil Line	(WITH POWER STEERING)
12	AL35439	1	Oil Line	(WITH MANUAL STEERING)
13	AL36123	1	Hydraulic Hose	(SUB FOR AL25104)
14	AR52372	1	PLUG	-
15	19H2054	1	CAP SCREW	3/8" X 4-3/4", 3/8"X4-3/4"
16	28H1521	1	Spacer	(WITH POWER STEERING) 0.493" X 0.675" X 9/16", 3/8"X.562"
16	L28809	1	SPACER	(WITH MANUAL STEERING) 14X66MM
17	AL160559	1	Hyd. Quick-Connect Coupler	(SUB FOR AR52361)
18	L53811	1	O-Ring	-
19	51M4234	1	Sealing Ring	12X16MM
20	AL25109	1	OIL LINE	-
21	AR45251	1	Tee Fitting	-
22	L30719	2	Valve	-
23	L30722	2	Poppet	-
24	L30720	2	Compression Spring	-
25	L30721	2	Valve Cover	-
26	AL36198	1	Hydraulic Hose	(SUB FOR AL29859)
27	AL35090	1	Hose	(SUB FOR AL24017)
28	14M7257	1	Nut	M20, M20
29	L30207	1	PLATE	-
30	L35882	1	Union Fitting	NLA
31	AL34676	1	VALVE	-
32	L37599	1	Sealing Ring	-
33	L41524	1	Adapter Fitting	-
34	L41547	1	O-Ring	-

HYDR. TRAILER BRAKE WITH MANUAL OR POWER STEERING (OLD TYPE)
