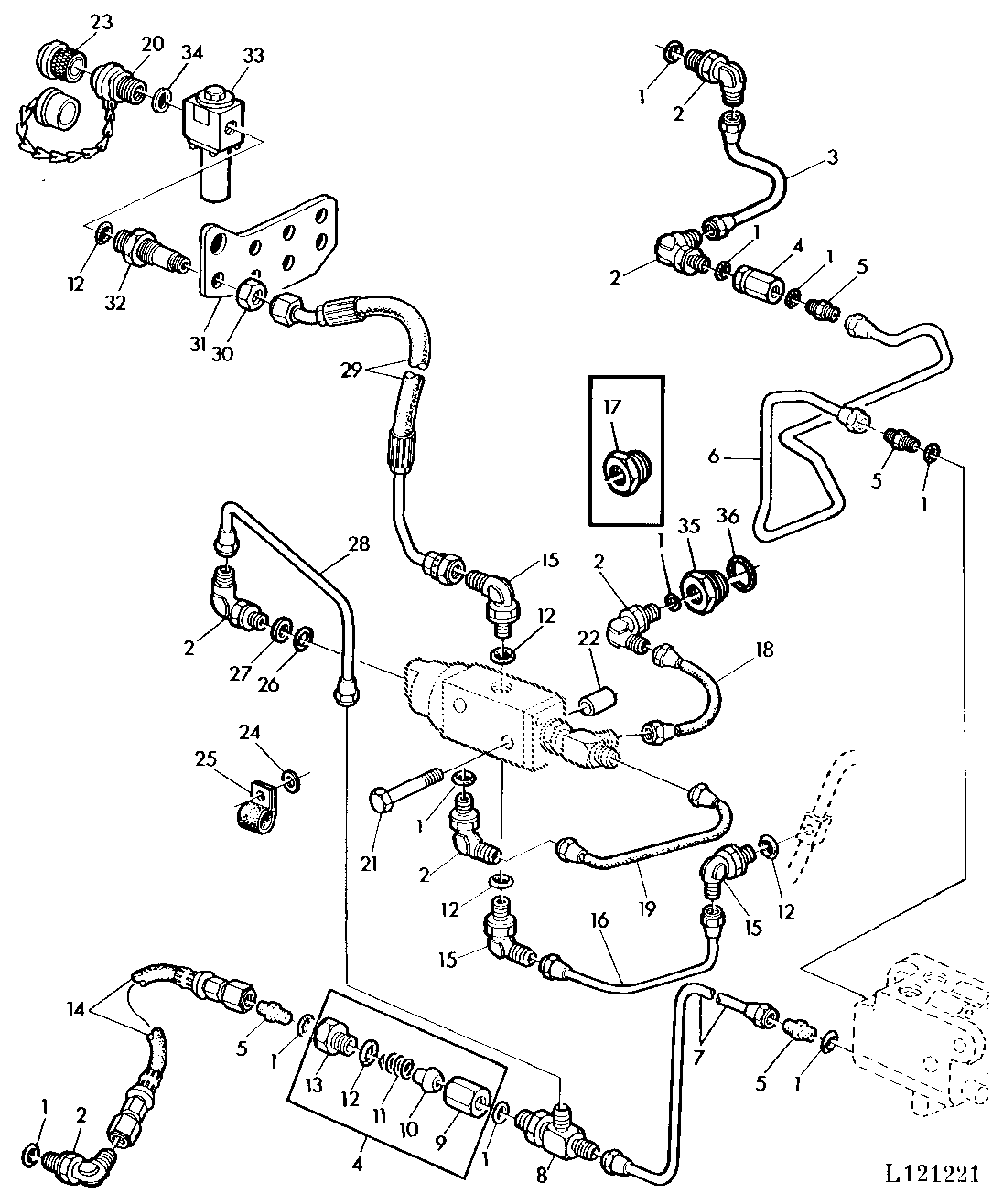

HYDR. TRAILER BRAKE WITH MANUAL OR POWER STEERING (NEW TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26287	10	O-Ring	-
2	AR26746	7	Elbow Fitting	-
3	AL33371	1	Oil Line	-
4	AL25103	2	Valve	(ORDER L30719, L30720, L30721, L30722, R26448)
5	R27139	4	FITTING	-
6	AL33373	1	Oil Line	-
7	AL36188	1	Oil Line	-
8	AR45251	1	Tee Fitting	-
9	L30719	2	Valve	-
10	L30722	2	Poppet	-
11	L30720	2	Compression Spring	-
12	R26448	6	O-Ring	-
13	L30721	2	Valve Cover	-
14	AL36198	1	Hydraulic Hose	-
15	AT35121	3	Elbow Fitting	(SUB FOR AR26725)
16	AL35072	1	Oil Line	(WITH POWER STEERING)
16	AL35439	1	Oil Line	(WITH MANUAL STEERING)
17	L28639	1	Pipe Plug	(ORDER L41524, L41547)
18	AL36122	1	Hose	-
19	AL36123	1	Hydraulic Hose	-
20	AR52372	1	PLUG	-
21	19H2054	1	CAP SCREW	3/8" X 4-3/4", 3/8"X4-3/4"
22	28H1521	1	Spacer	(WITH POWER STEERING) 0.493" X 0.675" X 9/16", 3/8"X.562"
22	L28809	1	SPACER	(WITH MANUAL STEERING) 14X66MM
23	AL160559	1	Hyd. Quick-Connect Coupler	(SUB FOR AR52361)
24	24M7028	1	Washer	10.500 X 20 X 2 mm, 10.5X21X2MM
25	L37536	1	Clamp	-
26	L53811	1	O-Ring	-
27	51M4234	1	Sealing Ring	12X16MM
28	AL36187	1	Oil Line	-
29	AL35090	1	Hose	-
30	14M7257	1	Nut	M20, M20
31	L30207	1	PLATE	-
32	L35882	1	Union Fitting	NLA
33	AL34676	1	VALVE	-
34	L37599	1	Sealing Ring	-
35	L41524	1	Adapter Fitting	-
36	L41547	1	O-Ring	-

HYDR. TRAILER BRAKE WITH MANUAL OR POWER STEERING (NEW TYPE)
