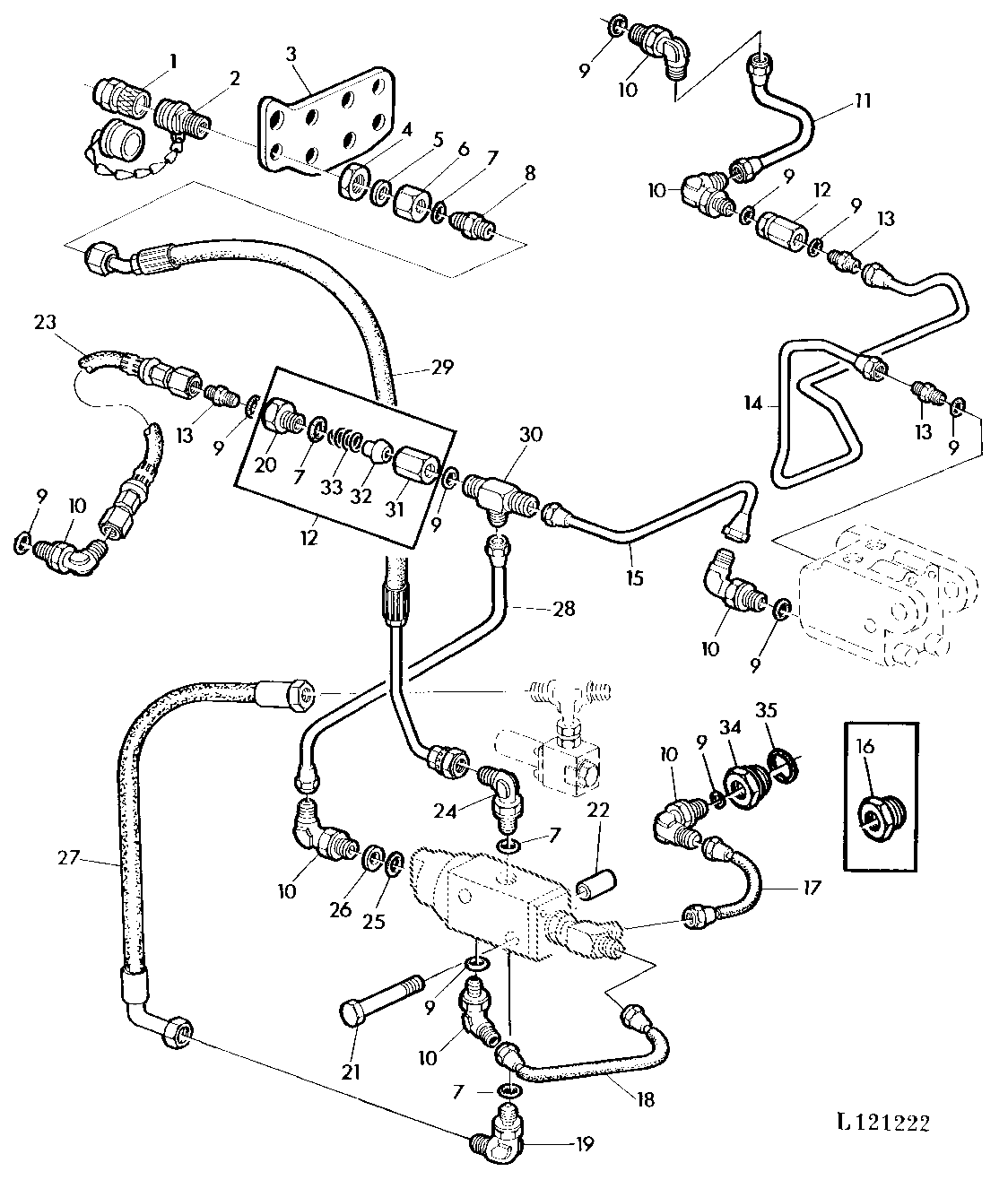

HYDR. TRAILER BRAKE WITH HYDROST. STEERING (OLD TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL160559	1	Hyd. Quick-Connect Coupler	(SUB FOR AR52361)
2	AR52372	1	PLUG	-
3	L30207	1	PLATE	-
4	14M7257	1	Nut	M20, M20
5	L37599	1	Sealing Ring	-
6	L40525	1	Nut	(SUB FOR L30206)
7	R26448	5	O-Ring	-
8	R27212	1	Fitting	-
9	R26287	11	O-Ring	-
10	AR26746	6	Elbow Fitting	-
11	AL33371	1	Oil Line	-
12	AL25103	2	Valve	(ORDER L30719, L30720, L30721, L30722, R26448)
13	R27139	3	FITTING	-
14	AL33373	1	Oil Line	-
15	AL25110	1	OIL LINE	-
16	L28639	1	Pipe Plug	(ORDER L41524, L41547)
17	AL36122	1	Hose	(SUB FOR AL23076)
18	AL36123	1	Hydraulic Hose	(SUB FOR AL25104)
19	AL55385	1	Elbow Fitting	(SUB FOR AT35120)
20	L30721	2	Valve Cover	-
21	19H2054	1	CAP SCREW	3/8" X 4-3/4", 3/8"X4-3/4"
22	28H1521	1	Spacer	0.493" X 0.675" X 9/16", 3/8"X.562"
23	AL36198	1	Hydraulic Hose	(SUB FOR AL29859)
24	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
25	L53811	1	O-Ring	-
26	51M4234	1	Sealing Ring	12X16MM
27	AL35837	1	Hose	(SUB FOR AL34910)
28	AL25109	1	OIL LINE	-
29	AL35090	1	Hose	(SUB FOR AL24715)
30	AR45251	1	Tee Fitting	-
31	L30719	2	Valve	-
32	L30722	2	Poppet	-
33	L30720	2	Compression Spring	-
34	L41524	1	Adapter Fitting	-
35	L41547	1	O-Ring	-

HYDR. TRAILER BRAKE WITH HYDROST. STEERING (OLD TYPE)
