HYDR. STEERING (WITH ONE DOUBLE ACTING CYLINDER)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L34371	4	Fitting	(SUB FOR L38680)
2	Z27993	1	O-Ring	-
3	AL31249	2	Hydraulic Hose	-
4	AL34418	1	Hydraulic Hose	-
5	AL31644	1	Hydraulic Hose	-
6	AL32895	2	Union Fitting	(ORDER L63538, 14M7477)
7	24M7051	2	Washer	21 X 37 X 3 mm, 21X37X3MM
8	28H1518	1	Washer	0.493" X 0.675" X 5/16"
9	14M7272	1	Nut	M6, M6
10	L37549	2	Clamp	-
11	AL34766	1	Oil Line	-
12	AL34765	1	Oil Line	-
13	19M7966	1	Screw	M6 X 25, M6X25
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	L38319	1	Stud	(SUB FOR 19H1944 APPL)
16	14H1076	1	Nut	3/8", 3/8"
17	AL36118	1	Hydraulic Hose	-
18	L37858	1	Fitting	-
19	R26448	1	O-Ring	-
20	R27212	1	Fitting	-
21	L34653	1	Union Fitting	-
22	L38741	1	Ball	-
23	15M7054	2	Tube Nut	-
24	AL37132	1	Tee Fitting	(WITH HYDRAULIC TRAILER BRAKES)
25	AL37133	1	Elbow Fitting	-
26	Z32994	1	Tapered Sleeve	-
27	L34868	1	Tee Fitting	-
28	R46414	1	Clamp	-
29	AL36337	1	Oil Line	-
30	AL31402	2	Elbow Fitting	-
31	28H1689	1	Spacer	0.493" X 0.675" X 5/8"
32	T35126	1	Clamp	-
33	AL34241	1	Oil Line	(ORDER AL36118, AL36337, R46414)
34	19H1800	1	Cap Screw	3/8" X 1-1/2", 3/8"X1-1/2"
35	R78436	1	O-Ring	-
36	14M7477	2	Nut	M18, M18X1.5
37	L63538	2	Union Fitting	-

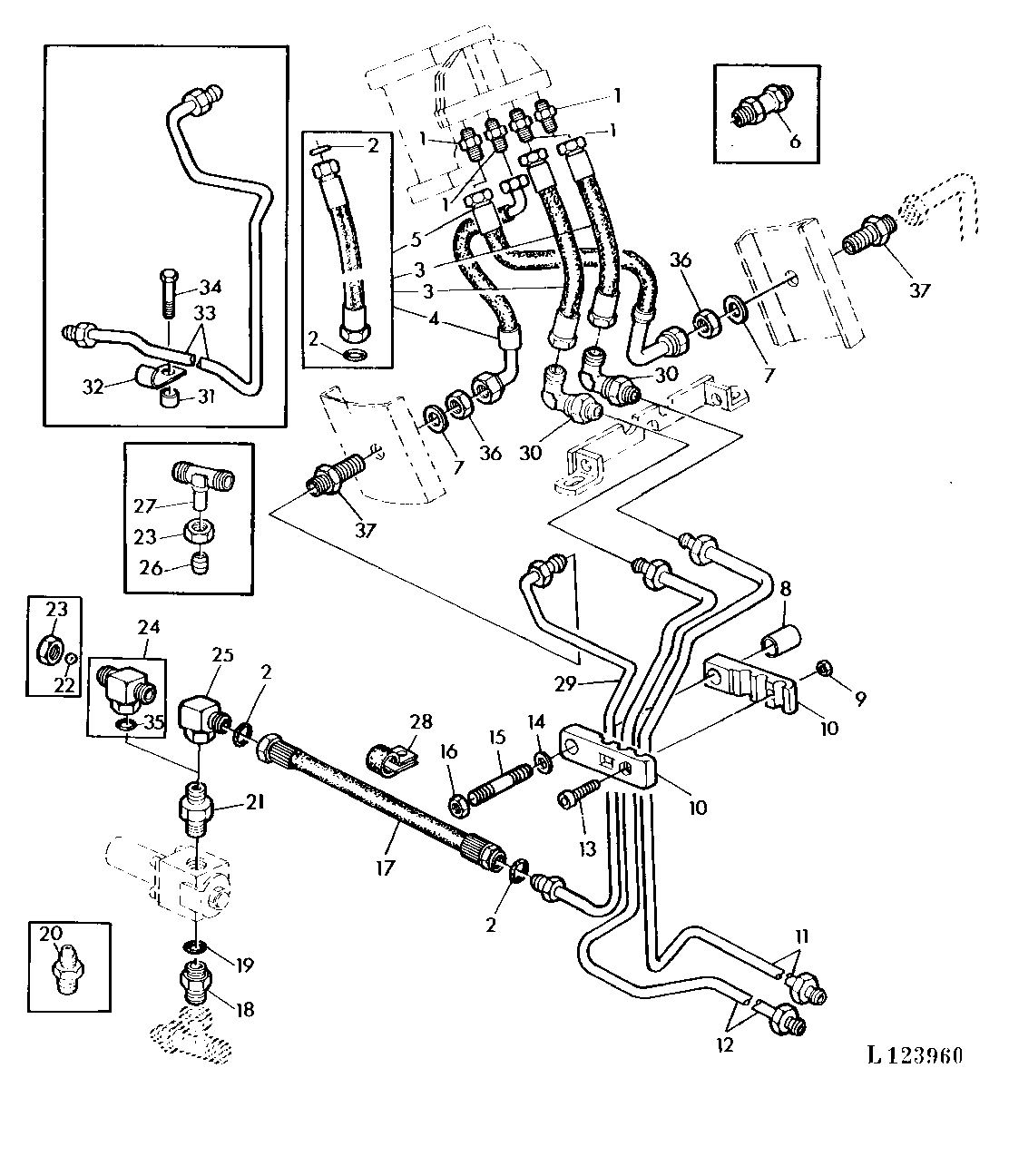

HYDR. STEERING (WITH ONE DOUBLE ACTING CYLINDER)
