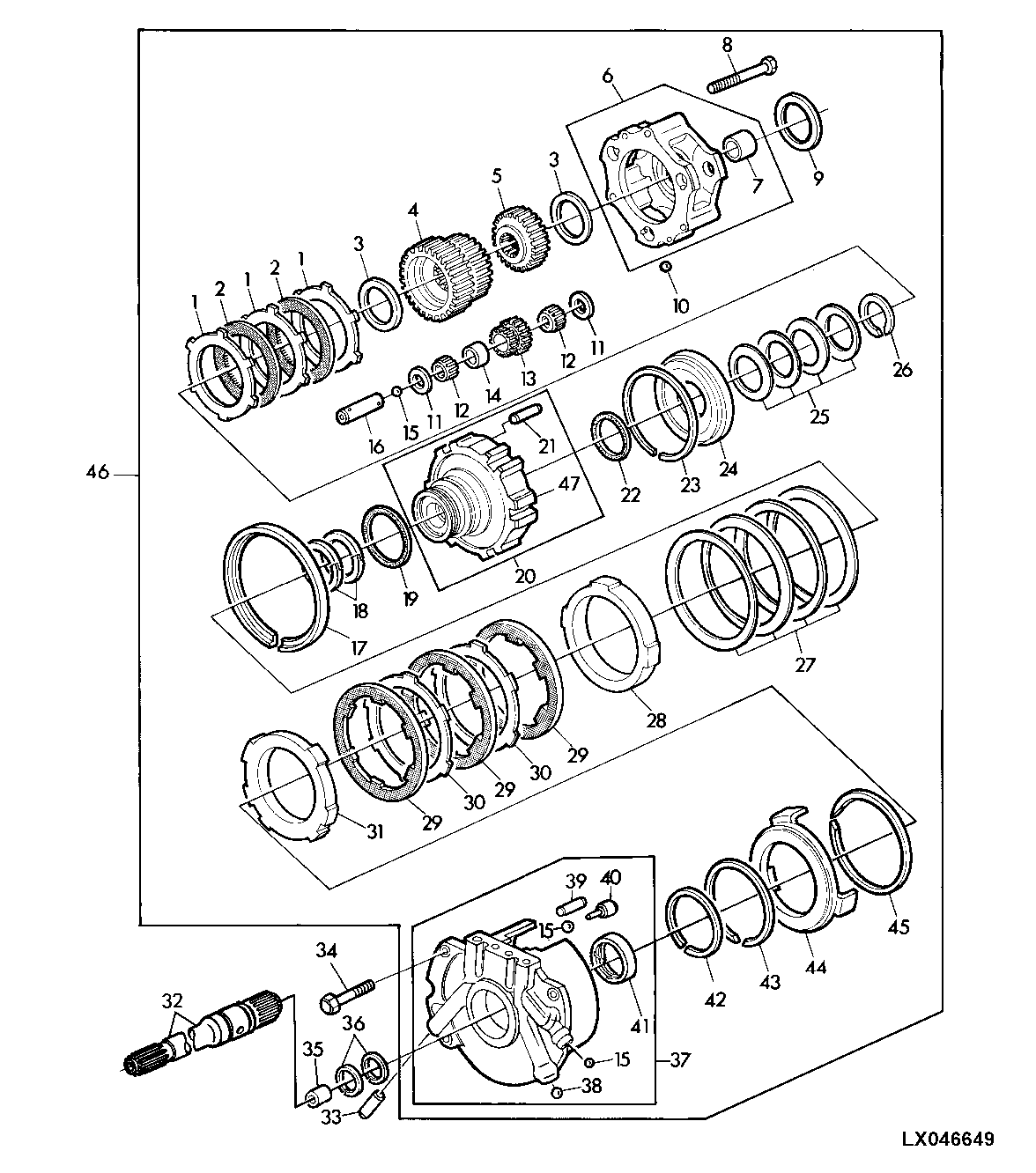

HI-LO CLUTCH (COLLAR-SHIFT TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64197	3	Clutch Plate	-
2	AL38239	2	Disk With Inner Spline	(SUB FOR AR78361)
3	R33083	2	Washer	-
4	AL28751	1	Pinion	-
5	L33156	1	Pinion	-
6	AL30686	1	Planet Pinion Carrier	-
7	L34116	1	Bushing	-
8	19H1904	3	Cap Screw	5/16" X 3", 5/16"X3"
9	L33159	1	Thrust Washer	-
10	H871R	8	Ball	5MM (3/16")
11	R54961	6	Thrust Washer	-
12	JD9932	6	Needle Bearing	(ORDER (2) AL39254, L41032)
12	AL39254	6	Needle Bearing	-
13	L33157	3	Pinion	-
14	L41032	3	Washer	TK= 3.15MM
14	R58209	3	Washer	TK= 8.15MM, (ORDER L41032, (2) AL39254)
15	L38718	5	Ball	6MM (1/4")
16	L33158	3	Pinion Shaft	-
17	L33303	1	Snap Ring	-
18	L33155	2	Ring	-
19	R50349	1	Washer	-
20	AL28748	1	Drum	(ORDER L33168, R38295)
21	R38295	3	Needle Roller	-
22	R39304	1	Washer	-
23	R39280	1	Piston Ring	-
24	R39285	1	Piston	-
25	R50348	4	Disk Spring	-
26	R39299	1	Snap Ring	-
27	L62954	4	Disk Spring	(SUB FOR L33161)
28	L33162	1	Plate	-
29	AL38238	3	Disk With Inner Spline	(SUB FOR AL30687)
30	L33163	2	Clutch Plate	-
31	L33164	1	Plate	-
32	L35243	1	Shaft	-
33	L33334	1	Dowel Pin	-
34	19H2552	4	CAP SCREW	3/8" X 1-1/8", 3/8"X1-1/8"
35	L33134	1	Bushing	-
36	T28807	2	Piston Ring	-
37	AL40807	1	Housing	(MARKED L41677) (ORDER W/ L40773, L33334) (SUB FOR AL30685, AL38868)
38	R26552	1	Ball	8MM (5/16")
39	R30587	2	Dowel Pin	-
40	L33369	1	Pin Fastener	-
41	L34115	1	Bushing	-
42	L62161	1	Seal	(SUB FOR L34185)
43	L62272	1	Seal	(SUB FOR L33167)
44	AL64922	1	Piston	(SUB FOR AL28756)
45	L33165	1	Snap Ring	-
46	AL40808	1	High-Low Clutch	Order Components (ORDER W/ L33334) (SUB FOR AL28739)
47	L33168	1	Drum	-

HI-LO CLUTCH (COLLAR-SHIFT TRANSMISSION)

Нет текстового описания
