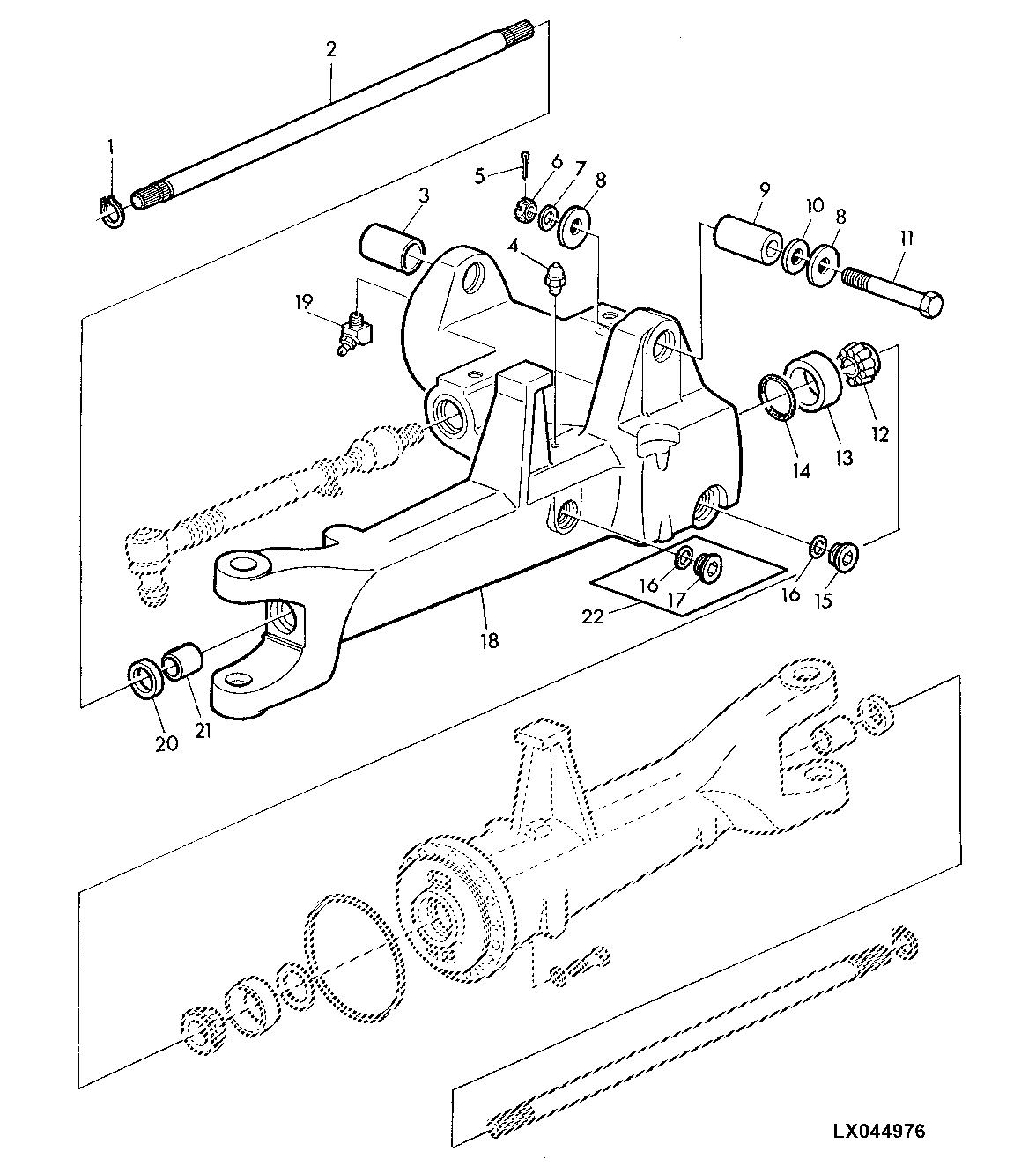

FWD-AXLE BRIDGE HOUSING, RIGHT (APL 735)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L60092	1	Snap Ring	(SUB FOR L60146)
2	L60145	1	SHAFT	-
3	L62836	1	Bushing	(SUB FOR L57310)
4	AL32877	1	Vent	-
5	11H218	1	Cotter Pin	3/16" X 1-1/2", 3/16"X1-1/2"
6	14H1086	1	Nut	3/4", 3/4"
7	T10510	1	Washer	-
8	T25922	2	WASHER	-
9	T21669	1	BUSHING	-
10	T25921	1	SHIM	TK= 0.40MM
11	T25840	1	CAP SCREW	-
12	JD8902	1	Bearing Cone	(SUB FOR JD10406)
13	JD8237	1	Bearing Cup	-
14	L40015	1	WASHER	TK= 1.80MM
14	L40104	1	Washer	TK= 1.60MM
14	L40103	1	Washer	TK= 1.50MM
14	L40102	1	Washer	TK= 1.40MM
14	L40086	1	Washer	TK= 1.35MM
14	L40101	1	Washer	TK= 1.30MM
14	L40087	1	Washer	TK= 1.25MM
14	L40100	1	Washer	TK= 1.20MM
14	L40097	1	Washer	TK= 0.90MM
14	L40088	1	Washer	TK= 1.15MM
14	L40099	1	Washer	TK= 1.10MM
14	L40098	1	Washer	TK= 1.00MM
14	L40093	1	Shim	TK= 0.50MM
14	L60119	1	Shim	TK= 0.55MM
14	L40094	1	Shim	TK= 0.60MM
14	L60118	1	Shim	TK= 0.65MM
14	L40095	1	Shim	TK= 0.70MM
14	L40092	1	Shim	TK= 0.75MM
14	L40096	1	Washer	TK= 0.80MM
14	L40091	1	Washer	TK= 0.85MM
14	L40090	1	Washer	TK= 0.95MM
14	L40089	1	Washer	TK= 1.05MM
15	L40037	1	Pipe Plug	-
16	L55580	2	O-Ring	-
17	15M7030	1	Pipe Plug	M36X1.5, (ORDER AL150585)
18	L60116	1	HOUSING	-
19	JD7847	1	Lubrication Fitting	-
20	AL61448	1	Seal	-
21	L60147	1	Bushing	-
22	AL150585	1	Fitting Plug	M36X1.5

FWD-AXLE BRIDGE HOUSING, RIGHT (APL 735)
