Открытый узел

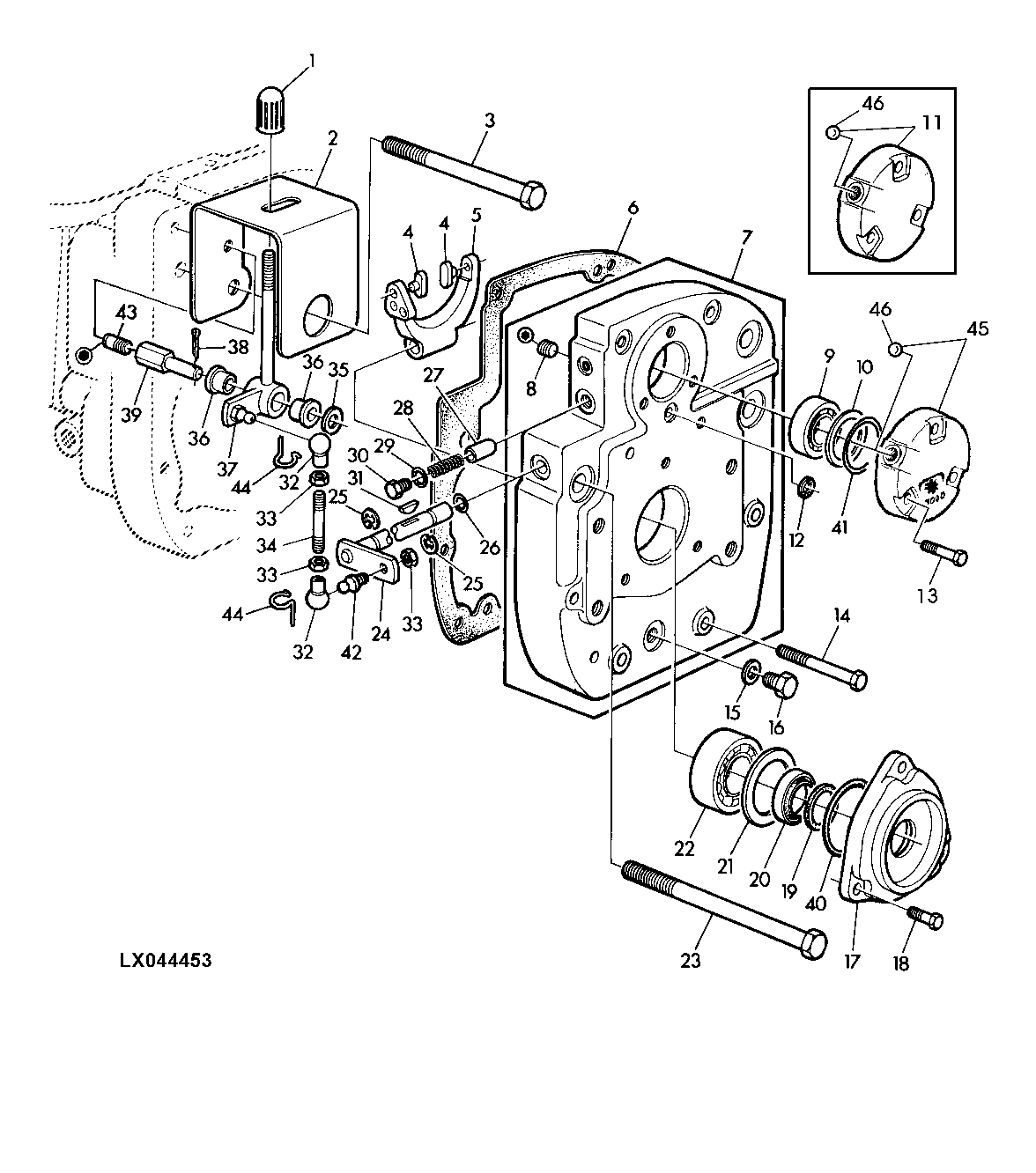

FRONT PTO/SHIFT LINKAGE AND BEARING COVER

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L57987	1	Grip	(SUB FOR AR62028 APPL)
2	L41437	1	Guard	-
3	19H3307	1	Cap Screw	3/4" X 6", 3/4"X6"
4	T21841	2	Shoe	-
5	L41430	1	Shifter	-
6	L62428	1	Gasket	(SUB FOR L41433)
7	AL39725	1	Cover	-
8	U40054	1	Pipe Plug	(FOR FRONT PTO(ROTATES CLOCKWISE - SEEN FROM OP.SEAT)) (SUB FOR T35599 APPL)
9	AL112628	1	Tapered Roller Bearing	(SUB FOR JD10137)
10	24M4813	1	Washer	50 X 62 X 1 mm, TK= 1.0MM (.04")
10	24M7221	1	Shim	TK= 0.3MM (.012")
10	24M7220	1	Shim	TK= 0.2MM (.008")
10	L36302	1	Shim	TK= 0.15MM (.006")
10	24M7219	1	Shim	TK= 0.1MM (.004")
11	AL39727	1	Cover	(ORDER AL112252 OR AL112253)
12	A4847R	1	Washer	-
13	19M7288	3	Cap Screw	M8 X 30, M8X30
14	19M7385	6	Cap Screw	M10 X 70, M10X70
15	R64857	1	Washer	-
16	R64929	1	Drain Plug	-
17	L41435	1	Bearing Housing W/O Bearing	-
18	19M7139	3	Cap Screw	M8 X 20, M8X20
19	L39491	1	Washer	-
20	48M7038	1	Seal	-
21	L33260	1	Shim	TK= 0.5MM (.02")
21	L33247	1	Shim	TK= 0.15MM (.006")
21	L33252	1	Shim	TK= 0.2MM (.008")
22	JD37047	1	Tapered Roller Bearing	-
23	08H4422	3	Cap Screw	3/4" X 7-1/2", 3/4"X7-1/2"
24	AL57873	1	Shifter Rod	-
25	F2863R	2	Snap Ring	-
26	L53813	1	O-Ring	-
27	L41431	1	Pin Fastener	-
28	L41432	1	Spring	-
29	R26448	1	O-Ring	-
30	R45010	1	Fitting	-
31	26H77	1	Shaft Key	3/16" X 3/4"
32	56M7003	2	Ball Joint Socket	-
33	14M7273	3	Nut	M8, M8
34	42M7014	1	Stud	-
35	24M7047	1	Washer	13 X 24 X 2.500 mm, 13X24X2.5MM
36	L30470	2	Bushing	-
37	AL39730	1	Lever	-
38	11M7059	1	Cotter Pin	3.200 X 20 mm, 3.2X20MM
39	L41438	1	Weld Stud	-
40	L33257	1	O-Ring	-
41	L41434	1	O-Ring	-
42	L57005	1	Ball Stud	-
43	22M7108	1	Set Screw	M10 X 35, M10X35
44	56M7004	2	Ball Joint Retainer	-
45	AL112252	1	Cover	(FOR FRONT PTO(ROTATES CLOCKWISE - SEEN FROM OP.SEAT))
45	AL112253	1	Cover	-
46	400R	1	Ball	-

FRONT PTO/SHIFT LINKAGE AND BEARING COVER
