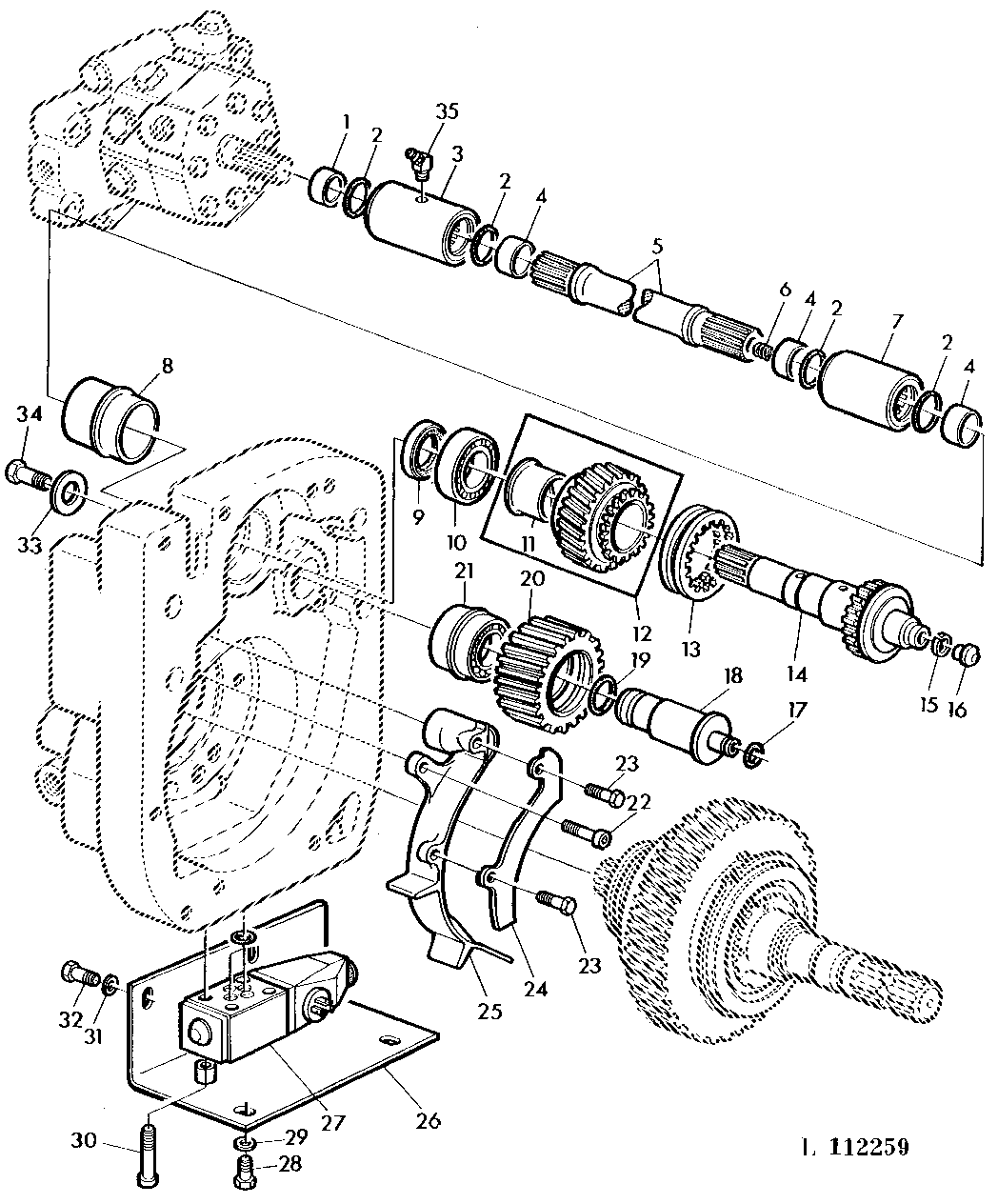

Front PTO - Drive And Solenoid (Rotates Anti Clockwise- Seen From Operator Seat)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L41810	1	Bushing	-
2	L53825	4	O-Ring	-
3	L56971	1	Splined Coupling	50X87MM
4	L56969	3	Bushing	35X16.4MM
5	L56973	1	Shaft	-
6	L30092	1	Compression Spring	-
7	L56970	1	Splined Coupling	50X88.5MM
8	L41439	1	Bushing	-
9	T22069	1	SEAL	-
10	AL39722	1	Tapered Roller Bearing	-
11	L41448	1	Bushing	-
12	AL55427	1	Gear	Z= 26
13	L34195	1	Shift Collar	-
14	L41425	1	Shaft	-
15	R34140	1	Ring	-
16	R39279	1	Retainer	-
17	L53824	1	O-Ring	-
18	L42130	1	Shaft	-
19	M4125T	1	O-Ring	-
20	L42129	1	Gear	Z= 27
21	AL41619	1	Tapered Roller Bearing	-
22	19M7603	1	Screw	M6 X 20, M6X20
23	37M7060	2	Screw	M4 X 10, M4X10
24	L42125	1	Cover	-
25	L42127	1	Deflector	-
26	L41436	1	Angle	-
27	AL68437	1	Solenoid Valve	(SUB FOR AL39728)
28	19M7139	2	Cap Screw	M8 X 20, M8X20
29	24M7055	2	Washer	8.400 X 16 X 1.600 mm, 8.4X17X1.6MM
30	19H3070	4	Screw	0.190" X 1-1/4", NO. 10 X 1-1/4"
30	19H3390	4	Screw	0.190" X 2", NO. 10 X 2"
31	24M7028	2	Washer	10.500 X 20 X 2 mm, 10.5X21X2MM
32	19M7167	2	Cap Screw	M10 X 25, M10X25
33	L42131	1	Washer	-
34	19M7662	1	Cap Screw	M10 X 30, M10X30
35	58M5632	1	Lubrication Fitting	M6

Front PTO - Drive And Solenoid (Rotates Anti Clockwise- Seen From Operator Seat)
