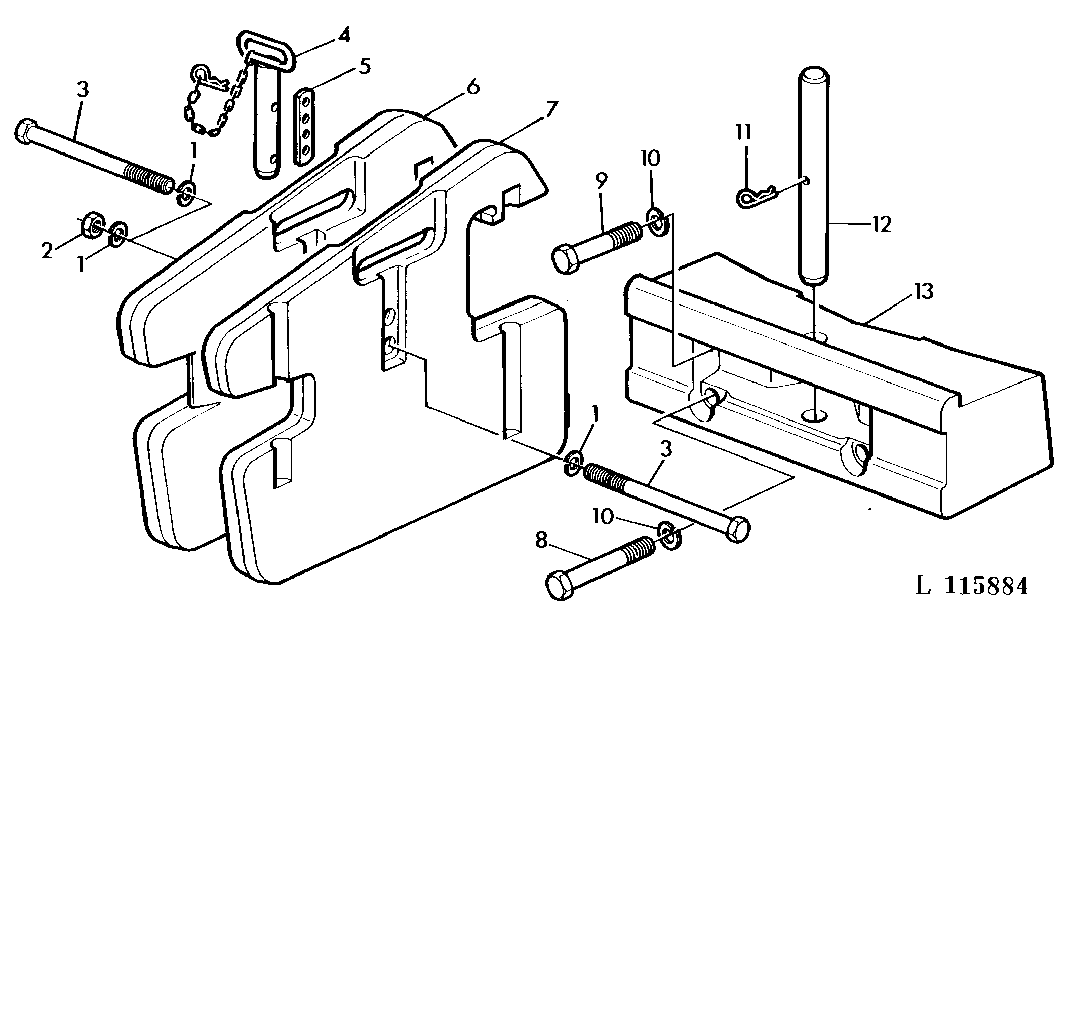

FRAME WEIGHTS (WITH INCREASED LIFTING CAPACITY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12M7044	1	Lock Washer	18.500 mm
2	14H821	1	Nut	(NUMBER OF WEIGHTS) 5/8", 6, 8
3	08H4738	1	Bolt	(NUMBER OF WEIGHTS) 5/8" X 9", 6
3	08H4482	1	Cap Screw	(NUMBER OF WEIGHTS) 5/8" X 12", 8
3	08H4738	2	Bolt	(NUMBER OF WEIGHTS) 5/8" X 9", 10
3	19H3650	2	Cap Screw	(NUMBER OF WEIGHTS) 5/8" X 11", 12
3	08H4482	2	Cap Screw	(NUMBER OF WEIGHTS) 5/8" X 12", 14
4	AL31229	1	Pin Fastener	-
5	AR68801	2	Retainer	(NUMBER OF WEIGHTS) 10, 12, 14, SUB FOR T32148
6	L38451	2	Weight	-
7	L38449	1	Weight	LH
7	L38450	1	Weight	RH
8	19H3405	2	Cap Screw	3/4" X 7"
9	19H3210	2	Cap Screw	3/4" X 5-1/4"
10	12H236	4	Lock Washer	3/4"
11	L12491	1	Spring Locking Pin	-
12	T32146	1	Pin Fastener	-
13	L77732	1	Weight	SUB FOR L35460 APPL

FRAME WEIGHTS (WITH INCREASED LIFTING CAPACITY)
