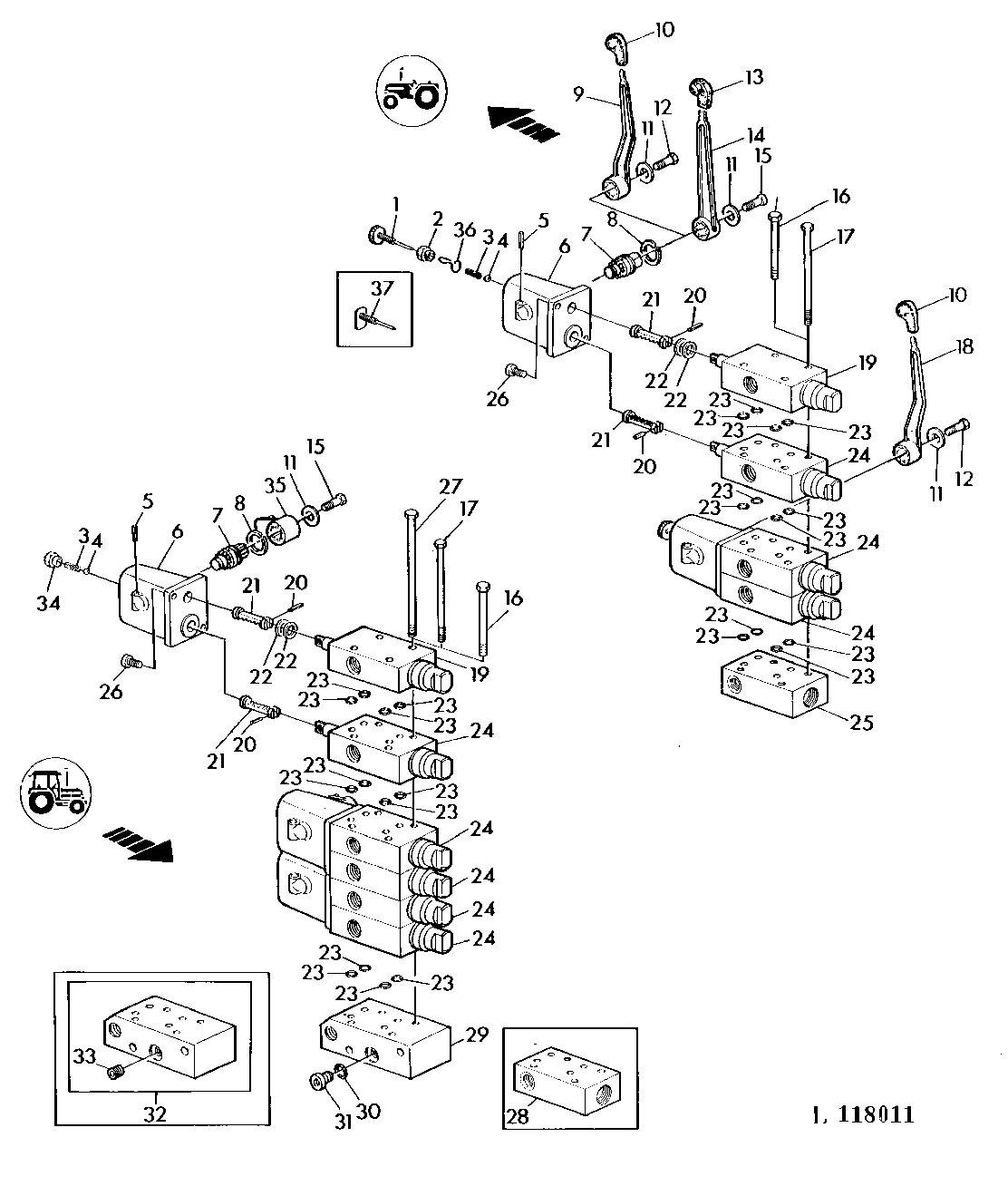

DOUBLE ACTING SELECTIVE CONTROL VALVE (SPOOL TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L62225	1	Set Screw	(SUB FOR AR61165)
2	R53800	1	Screw	-
3	R53801	1	Spring	-
4	R26552	1	Ball	-
5	34M7023	1	Spring Pin	3 X 24 mm, 3X24MM
6	L39172	1	Cover	(SUB FOR T32133)
7	T32547	1	Drive Shaft	-
8	T32143	1	Snap Ring	-
9	AL24081	1	Lever	-
10	L56926	1	Grip	(SUB FOR R54275 APPL)
11	24H1288	1	Washer	9/32" X 1" X 1/16", 9/32"X1"X.060"
12	19H2036	1	Cap Screw	1/4" X 7/8"
13	L56925	1	Grip	(FOR 2 SELECT.CONTROL VALVES) (SUB FOR R54274 APPL)
14	AL24082	1	Lever	(FOR 2 SELECT.CONTROL VALVES)
15	19H1919	1	Cap Screw	1/4" X 5/8", 1/4"X5/8"
16	19H1904	4	Cap Screw	5/16" X 3", 5/16"X3"
17	19H2343	4	Cap Screw	5/16" X 5-1/2", 5/16"X5-1/2"
18	AL24081	1	Lever	(FOR 2 SELECT.CONTROL VALVES)
19	AL34593	1	Selective Control Valve	-
20	R53218	1	Needle Roller	-
21	T32132	1	Rack	-
22	L17658	1	Washer	-
23	L34378	1	O-Ring	-
24	AL34595	1	Selective Control Valve	-
25	L34376	1	Valve Stack	-
26	19M7603	1	Screw	M6 X 20, M6X20
27	08H4397	4	Cap Screw	(FOR 3 SELECT.CONTROL VALVES) 5/16" X 8", 5/16"X8"
28	L34376	1	Valve Stack	-
29	L41708	1	Housing	-
30	L41526	1	O-Ring	-
31	L41709	1	Pipe Plug	-
32	AL37949	1	Housing	(ORDER L41708, L41709, L41526)
33	15M6643	1	Drain Plug	-
34	R31631	1	DRAIN PLUG	-
35	AL35432	1	Lever	-
36	L61890	1	Ball Joint Retainer	-
37	AR61165	1	Lever	(ORDER L62225, L61890)

DOUBLE ACTING SELECTIVE CONTROL VALVE (SPOOL TYPE)
