Crankshaft/Bearings For Tractor W/ Front PTO

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE27353	1	Bearing Kit	ID= -0.254MM (0.010"), (KIT (2) R87750)
1	RE27360	1	Bearing	ID= -0.508MM (0.020"), (KIT (2) R87756)
1	RE27368	1	Bearing	ID= -0.762MM (0.030"), (KIT (2) R87759)
1	RE27352	4	Bearing Kit	ID STANDARD, (KIT (2) R83380)
2	RE521350	1	Bearing Kit	TK STANDARD, (KIT (2) R123563) (SUB FOR R13571) (KIT (3) R78598) (SUB FOR AR95931)
2	AR95932	1	Thrust Washer	TK= +0.17MM (.007"), (MARKED R64851)
3	RE60350	1	Bearing Kit	ID STANDARD, REAR, (KIT (2) R121413) (SUB FOR RE27350) (KIT (2) R83381) (SUB FOR AR81786) (KIT (2) R64264)
3	RE27351	1	KIT	ID= -0.254MM (0.010"), REAR, (KIT (2) R87749)
3	RE27359	1	Bearing	ID= -0.508MM (0.020"), REAR, (KIT (2) R87755)
3	RE27366	1	Bearing Kit	ID= -0.762MM (0.030"), REAR, (KIT (2) R87758)
4	R48685	1	Dowel Pin	(SUB FOR A120R)
5	T28041	1	Shaft Key	1/8"X5/8", (SUB FOR 26H72)
6	T20094	1	Helical Gear	Z= 24
7	RE20585	1	Crankshaft	(ORDER RE65224)
7	RE65224	1	Crankshaft	-
7	SE501650	1	Crankshaft Reman	(With Bearings) REMAN FOR RE65224
8	RE44574	1	Seal	(SUB FOR AR92893, RE11036)
9	T20046	1	Oil Slinger	-
10	H35244	1	Ring	-
11	R81989	1	Sleeve	-
12	AR67942	1	Seal	-

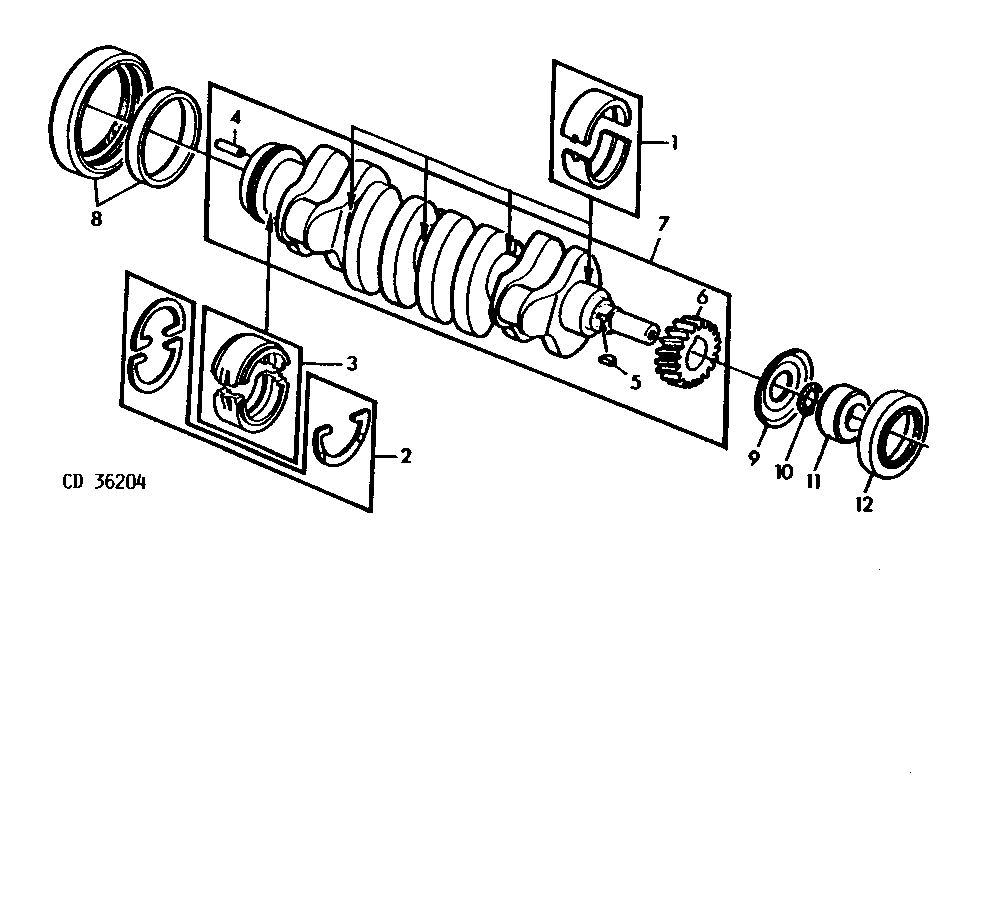

Crankshaft/Bearings For Tractor W/ Front PTO

Нет текстового описания
