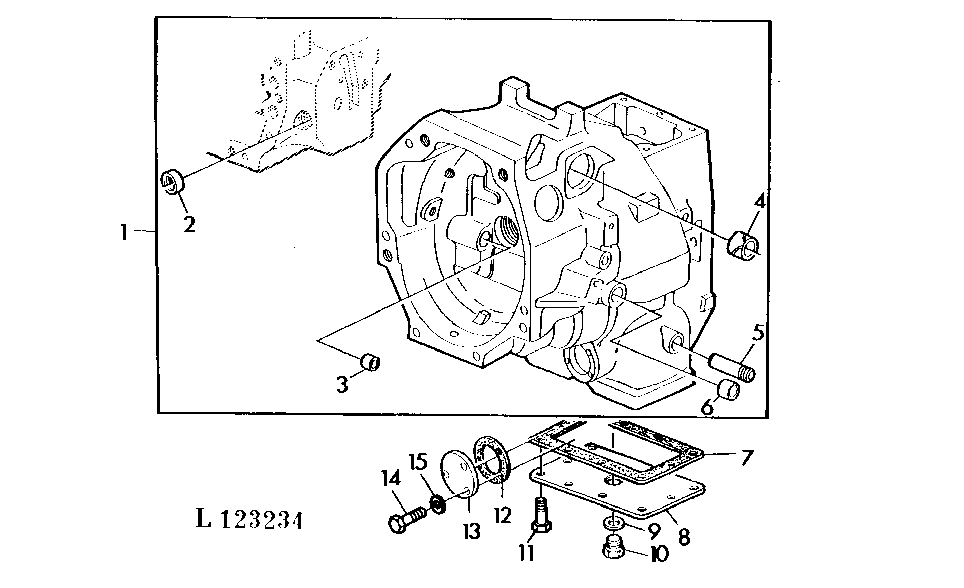

CLUTCH HOUSING (WITH INCREASED LIFTING CAPACITY)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL38671	1	Housing	(MARKED L39731)
2	T28797	1	VALVE SEAT INSERT	-
3	L40445	1	Bushing	28X31X20MM
4	L64255	1	Bushing	(SUB FOR T21445)
5	T21448	1	PIN	-
6	L39935	1	Bushing	28X32X20MM
7	L61920	1	Gasket	(WITHOUT FWD) (SUB FOR L36699)
8	AL30588	1	Cover	(WITHOUT FWD)
9	A4827R	1	Washer	(WITHOUT FWD) (SUB FOR 51M7019 APPL)
10	R51895	2	Fitting	(WITHOUT FWD) 1", ORDER L41295
10	L41295	2	Drain Plug	-
11	19M7163	10	Cap Screw	(WITHOUT FWD) M8 X 25, M8X25
12	L62424	1	Gasket	(WITHOUT FWD) (SUB FOR L36700)
13	L33141	1	Cover	(WITHOUT FWD) ORDER L65089
13	L65089	1	Bearing Housing W/O Bearing	(WITHOUT FWD)
14	19M7139	3	Cap Screw	(WITHOUT FWD) M8 X 20, M8X20
15	51M4231	3	Sealing Ring	(WITHOUT FWD)

CLUTCH HOUSING (WITH INCREASED LIFTING CAPACITY)
