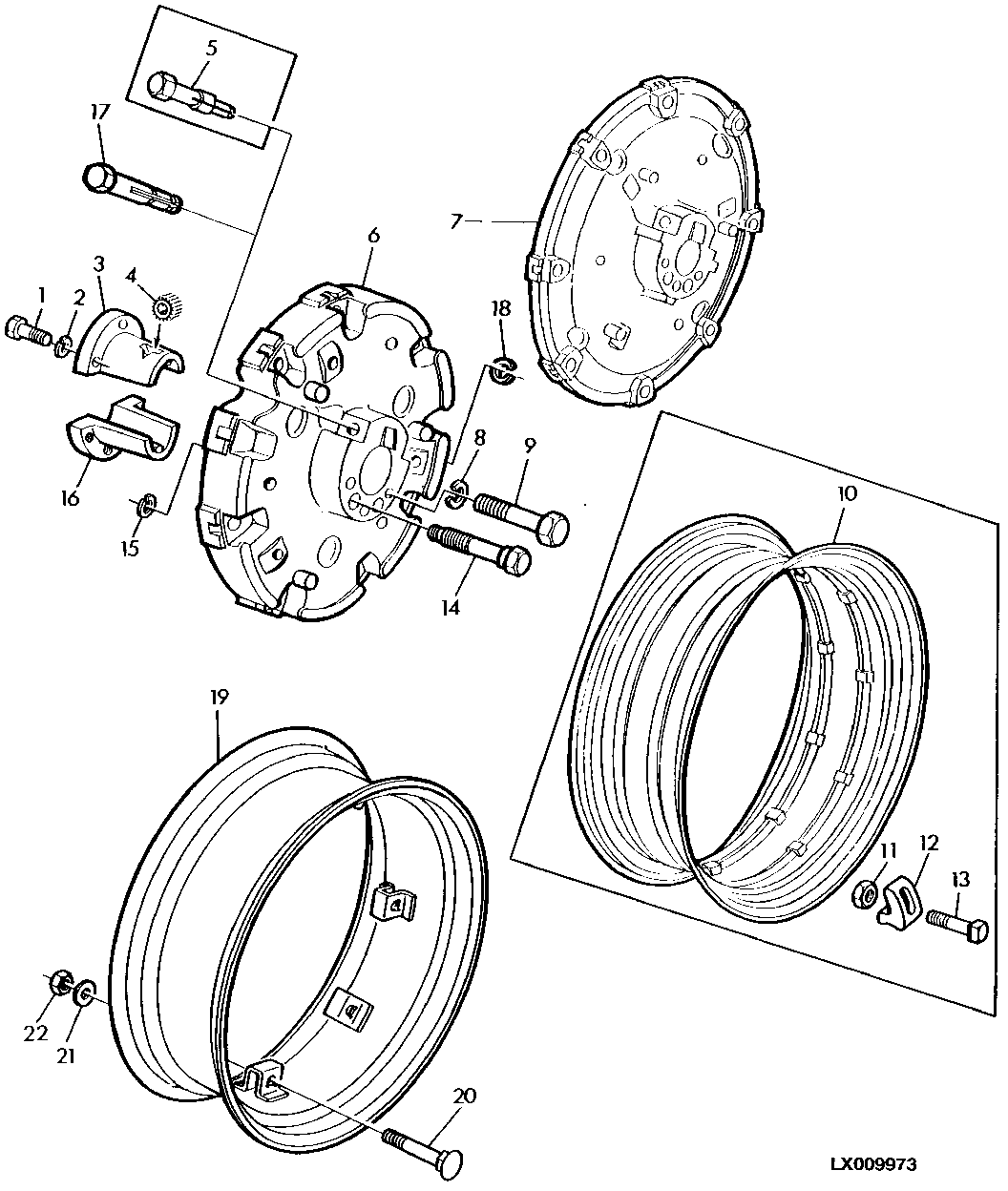

CAST REAR WHEELS FOR PINION ADJUSTED AXLE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2600	6	Cap Screw	3/4" X 2-5/8", 3/4"X2-5/8"
2	12H236	6	Lock Washer	3/4", 3/4"
3	B3016R	2	HALF SLEEVE	-
4	B3014R	2	PINION	Z= 14
5	A4380R	2	PINION SHAFT	(ORDER R83588, R73380)
6	T22817	2	WHEEL	(FOR TIRE SIZE) 16.9-30, 18.4-30
7	T22818	2	Wheel	(FOR TIRE SIZE) 15.5-38
8	12H245	6	Lock Washer	7/8", 7/8"
9	08H4419	6	Cap Screw	7/8" X 6-1/2", 7/8", (SUB FOR R34828)
10	T24157	2	Rim	(FOR TIRE SIZE) 16.9-30, 18.4-30, (ORDER AL82375, (9) L65341, (9) L208869, (9) 14M7276)
10	T27720	2	Rim	(FOR TIRE SIZE) 15.5-38, (ORDER AL82378, (8) L65341, (8) L208869, (8) 14M7276)
11	14H800	16	Nut	5/8", 5/8"
12	L38141	16	Clamp	-
13	08H4766	16	Bolt	5/8" X 4-1/4", 5/8"X4-1/4"
14	R58303	4	Cap Screw	7/8", (SUB FOR R33706, R39758)
15	A4883R	4	Snap Ring	-
16	B3018R	2	BUSHING	-
17	R83588	2	Drive Shaft	-
18	R73380	2	Snap Ring	(SUB FOR A369R)
19	AL82375	1	Rim	(FOR TIRE SIZE) 16.9-30, 18.4-30
19	AL82378	1	Rim	(FOR TIRE SIZE) 15.5-38, 16.9-38
20	L65341	1	Bolt	-
21	L208869	1	Washer	SUB FOR R106793
22	14M7276	1	Nut	M16

CAST REAR WHEELS FOR PINION ADJUSTED AXLE
