Engine Control Unit (ECU) and Engine Interface Wiring Harness, Machine Control (528988 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT458826	1	Electronic Control Unit	ECU
2	RE548097	1	Engine Controller	-
3	AT510304	1	Wiring Harness	Interface
4	AT471264	1	Wiring Harness	Cooling And Fan
5	AT501090	1	Wiring Harness	Diesel Exhaust Fluid (DEF)
6	AT510300	1	Wiring Harness	Aftertreatment Device
7	FF520117	1	Bracket	-
8	FF529062	1	Bracket	-
9	57M8736	1	Elec. Connector Accessory	-
10	4190261	5	Clip	-
11	4193848	1	Clip	SUB FOR 4190264
12	4190266	2	Clip	-
13	AH79175	5	Clip	SUB FOR 4190272
14	T28949	1	Clamp	SUB FOR 4190273
15	4190274	4	Clip	-
16	4190275	6	Clamp	-
17	4190277	1	Clamp	-
18	T32854	1	Clamp	SUB FOR 4190282
19	4193848	5	Clip	SUB FOR 4190291
20	4193848	2	Clip	-
21	T269640	8	Clamp	-
22	DH400240	16	Tie Band	-
23	H77698	6	Tie Band	SUB FOR 4055311
24	19M7938	5	Cap Screw	M10 X 20, SUB FOR J901020
25	19M7402	26	Cap Screw	M10 X 25, SUB FOR J901025
26	19M7301	4	Cap Screw	M8 X 40, SUB FOR J900840
27	19M7560	2	Cap Screw	M6 X 16, SUB FOR J900616
28	19M7162	1	Cap Screw	M8 X 16, SUB FOR J900816
29	19M9837	8	Screw	M8 X 25
30	24M7346	31	Washer	11 X 20 X 2 mm, SUB FOR DH400703
31	24M7028	1	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
32	24M7055	5	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
33	24M7054	6	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
34	14M7274	1	Nut	M10, SUB FOR J950010
35	14M7027	4	NUT	M6, SUB FOR J950006
36	AT228722	1	Indicator Lamp	24 V
37	19M7785	2	Screw	M10 X 25
38	T271650	1	Clamp	-
39	19M10399	1	Screw	M6 X 16

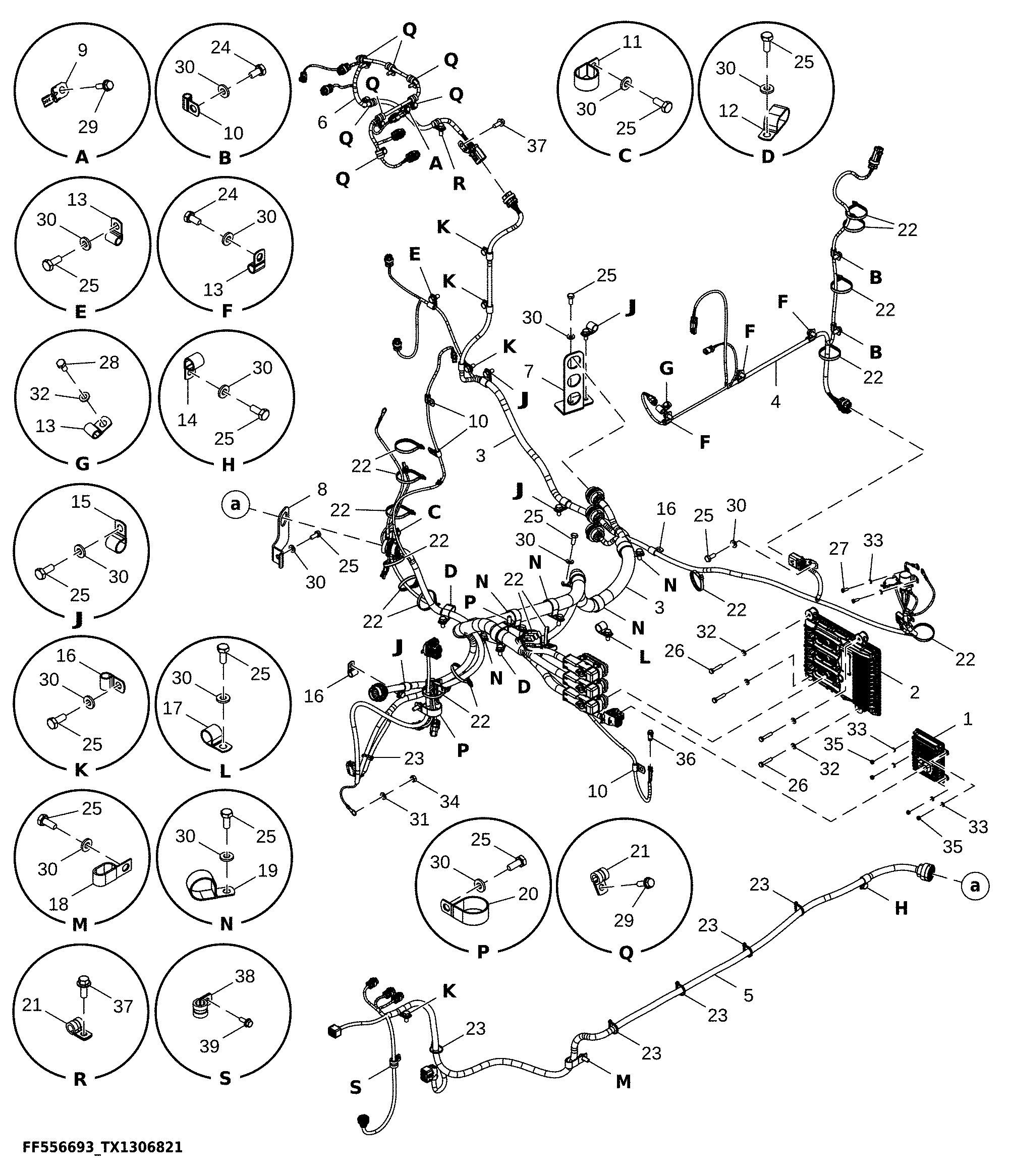

Engine Control Unit (ECU) and Engine Interface Wiring Harness, Machine Control (528988 - )
