Progressive Hydraulic Thumb Kit (Kits Built 28 June 2010 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AT379651	1	Field Installation Kit	With Coupler Whole Goods
0	AT379650	1	Field Installation Kit	Without Coupler Whole Goods
1	-	1	Part 3	NSEP
2	AT387237	1	Pin	-
3	AT383862	1	Pin	-
4	T277101	1	Pin	-
5	AT383883	1	Link	-
6	-	1	Part 8	NSEP
7	T277102	2	Pin	-
8	T229481	1	Pin	-
9	T229312	1	Cap	-
10	-	1	Part 12	NSEP
11	-	1	Part 13	NSEP
12	T276469	1	Spacer	-
13	T229499	2	Thrust Washer	-
14	T276673	2	Spacer	-
15	AT342742	1	Hydraulic Hose	-
16	19H2826	1	Cap Screw	3/4" X 4-1/2"
17	19H3105	2	Cap Screw	3/4" X 5"
18	14H1058	3	Nut	3/4"
19	T276470	1	Spring Locking Pin	-
20	19H2633	3	Cap Screw	3/8" X 1-1/2"
21	12H304	3	Lock Washer	3/8"
22	T229330	10	Shim	-
23	T229509	6	Shim	-
24	AT383885	1	Link	-
25	AT383886	1	Link	-
26	AT383426	1	Pin	-
27	12H301	1	Lock Washer	1/2"
28	19H3544	1	Cap Screw	1/2" X 4-1/2"
29	AT383236	1	Hydraulic Cylinder	Components On Separate Page, ALSO ORDER AT383237
29	AT383237	1	Seal Kit	-
30	T229515	7	Shim	-
31	JD7759	4	Lubrication Fitting	-
32	U16721	1	Lock Nut	-
33	T277117	2	Stop	-
34	-	1	Part 37	NSEP
40	AT389295	1	Plate Kit	For Use With Hydraulic Thumb Kit With Coupler Whole Goods

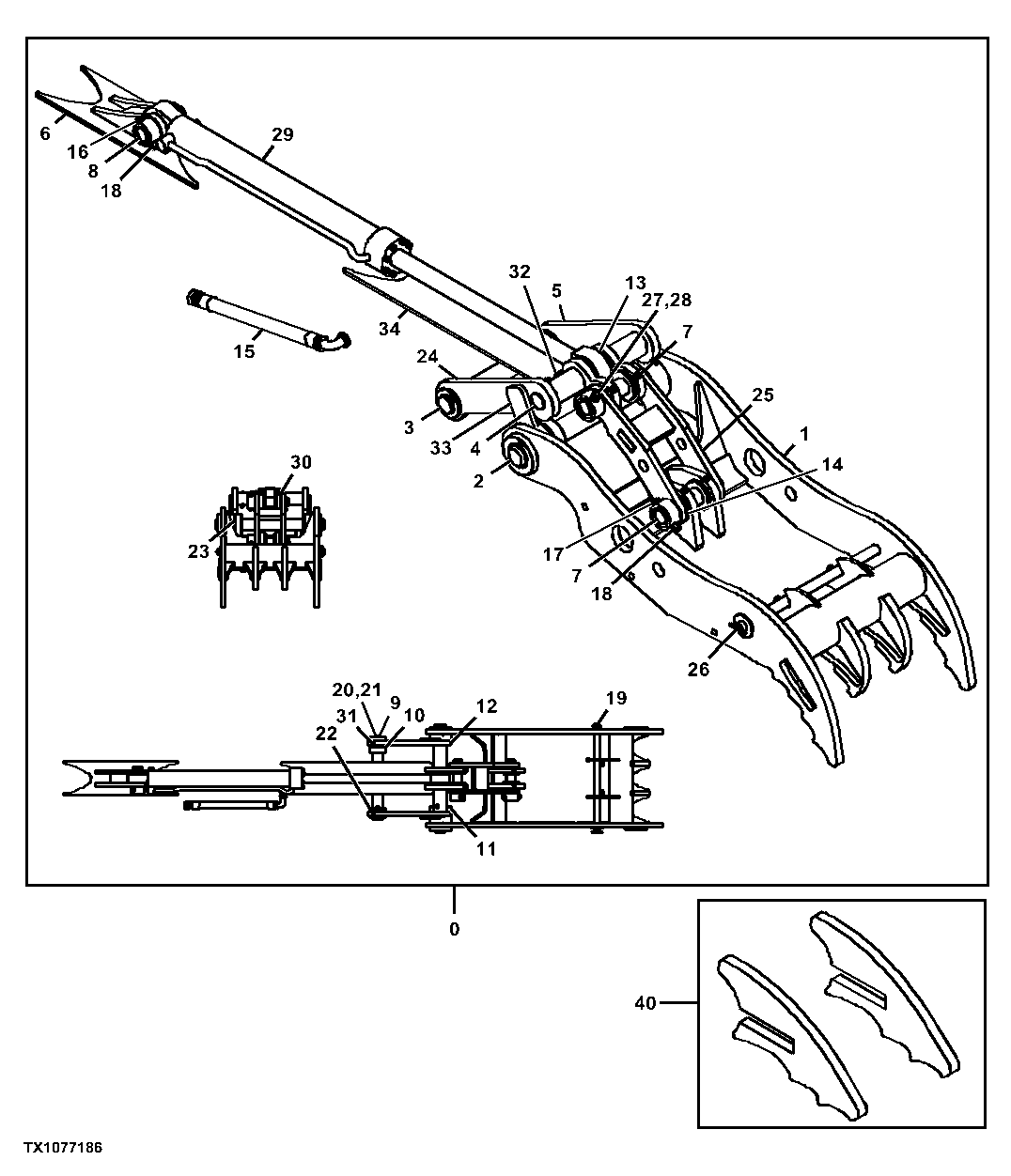

Progressive Hydraulic Thumb Kit (Kits Built 28 June 2010 - )
