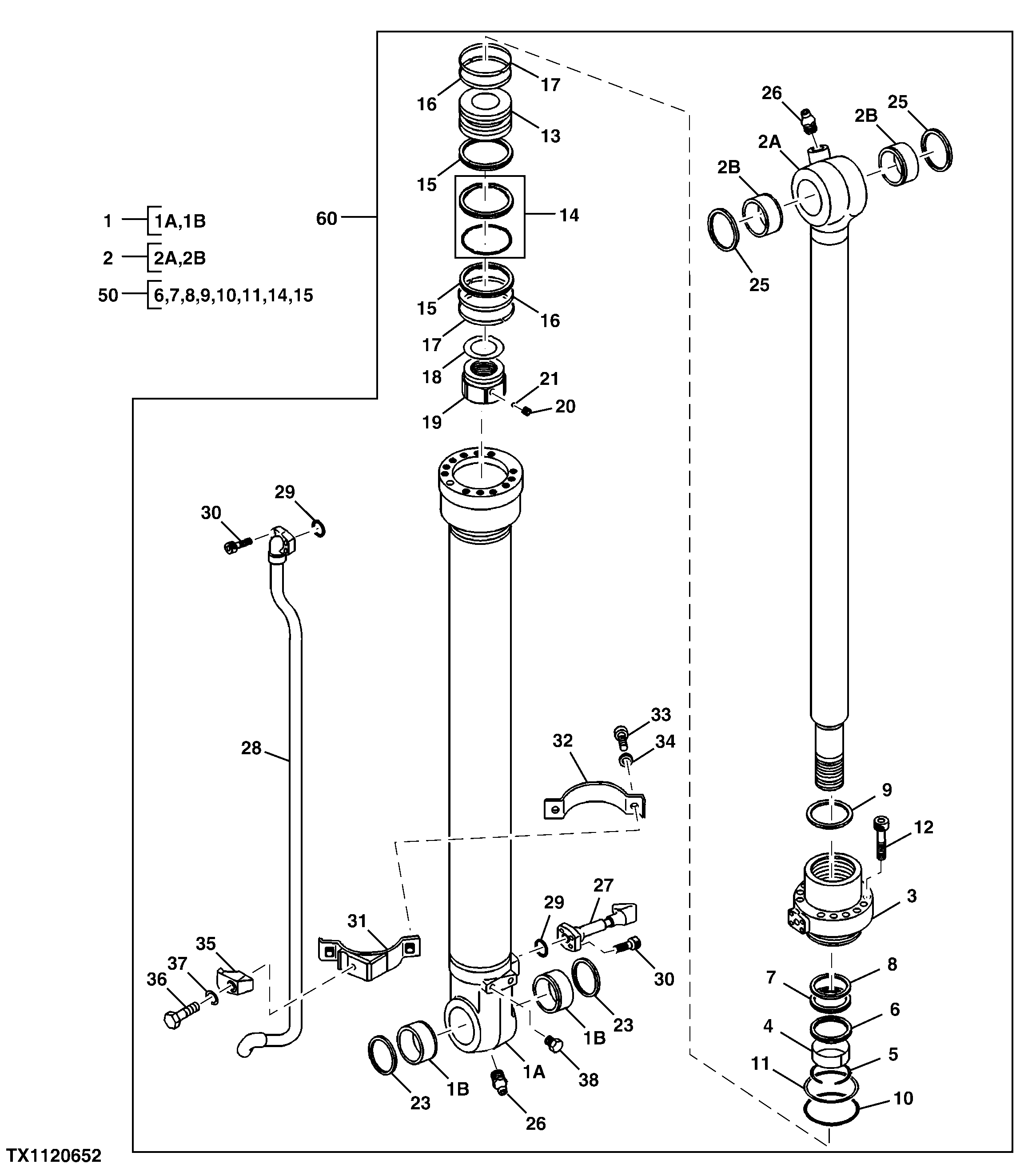

Bucket Cylinder Components, Super Long Front

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0667101	1	Hydraulic Cylinder Barrel	-
2	0667103	1	Rod	-
3	0790005	1	Hydr. Cylinder Rod Guide	SUB FOR H155194 AND 0667105
4	AT264389	1	Wear Ring	SUB FOR 0310604
5	4510494	1	Snap Ring	-
6	AT153949	1	Ring	SUB FOR 0409104
7	AT264374	1	Seal	SUB FOR 0225611
8	AT264375	1	Back-Up Ring	SUB FOR 0225612
9	H158164	1	Scraper Ring	SUB FOR 0409117
10	CH18696	1	Packing	SUB FOR A811090
11	AT264391	1	Back-Up Ring	SUB FOR 0310606
12	19M8929	10	Screw	M14 X 55, SUB FOR 0667107
13	H158173	1	Piston	SUB FOR 0409106
14	AT264392	1	Ring	SUB FOR 0310608
15	AT153951	2	Back-Up Ring	SUB FOR 0409107
16	H158170	2	Scraper Ring	SUB FOR 0667108
17	AT264394	2	Ring	SUB FOR 0310610
18	TH110253	1	Shim	SUB FOR 0326007
19	H158175	1	Nut	SUB FOR 0667109
20	22M7139	1	Set Screw	M10 X 10, SUB FOR 0310612
21	400R	1	Ball	SUB FOR 0111818
23	TH105979	2	Seal	SUB FOR 4094086
25	TH100374	2	Seal	SUB FOR 4065687
26	TH100074	2	Lubrication Fitting	SUB FOR J75481
27	0679001	1	Line	-
28	0686101	1	Line	-
29	4509181	2	O-Ring	-
30	19M8439	8	Screw	M8 X 25, SUB FOR M340825
31	AH234868	1	Clamp	SUB FOR 0667111
32	0409116	1	Band	-
33	19M7550	2	Cap Screw	M10 X 35, SUB FOR 0408815
34	12M7066	2	Lock Washer	10 mm, SUB FOR 0325913
35	0310616	1	Clamp	-
36	19M7361	1	Cap Screw	M12 X 50, SUB FOR 0309022
37	12M7067	1	Lock Washer	12 mm, SUB FOR 0208516
38	19M8017	2	Cap Screw	M12 X 20, SUB FOR 0409110
50	AT196469	1	Seal Kit	SUB FOR 4369766
60	9156726	1	Hydraulic Cylinder	SUB FOR 4379259
1A	0667101	1	Hydraulic Cylinder Barrel	SUB FOR 0667102
1B	4365897	2	Bushing	-
2A	0667103	1	Rod	SUB FOR 0667104
2B	4365448	2	Bushing	-

Bucket Cylinder Components, Super Long Front
