Открытый узел

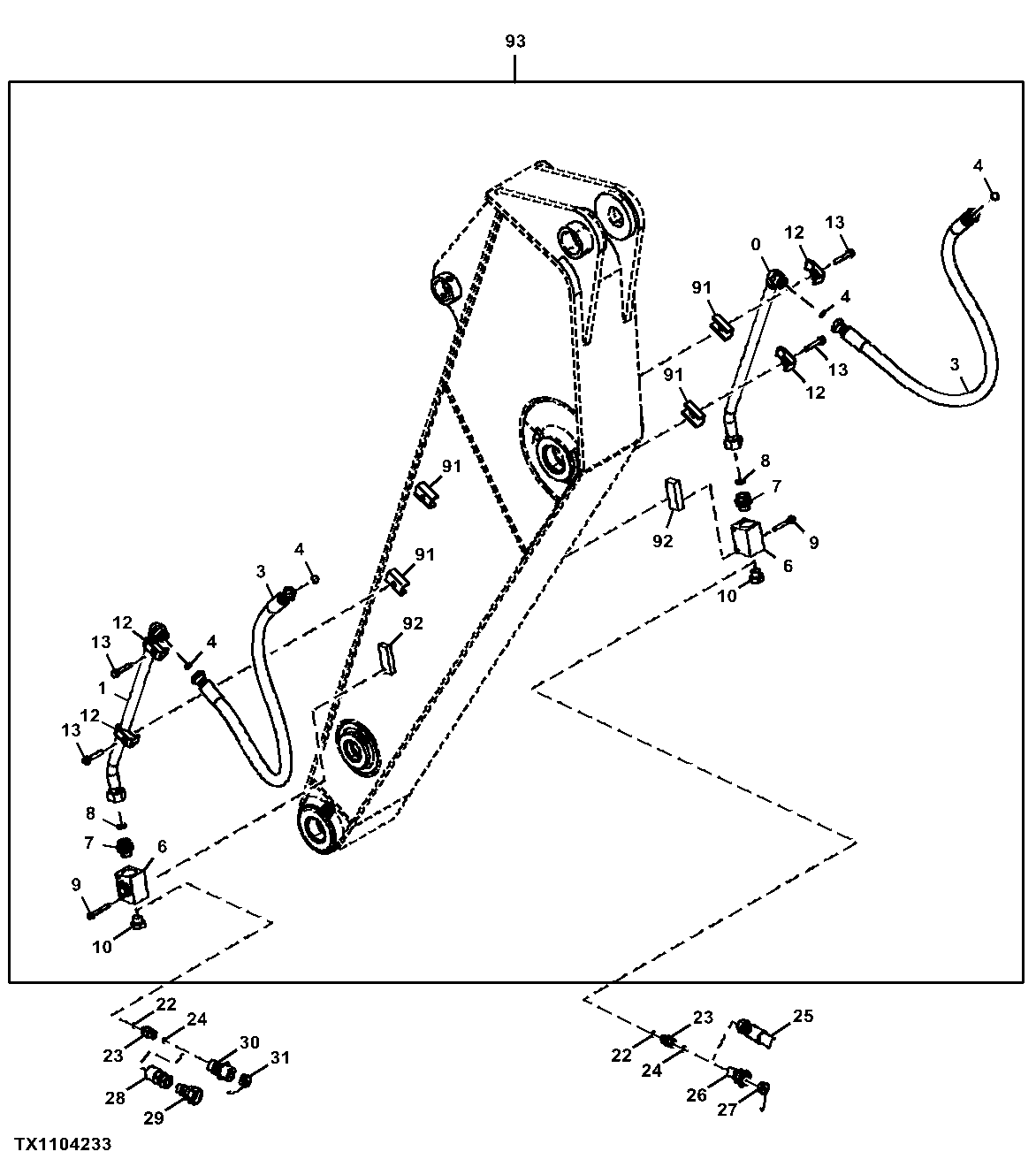

Arm High Flow Auxiliary Lines, Short

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	8087257G	1	Pipe	SUB FOR 8087257
1	8087377G	1	Pipe	SUB FOR 8087377
3	4628902	2	Hydraulic Hose	-
4	T76938	4	O-Ring	SUB FOR 4187328
6	4447675	2	Flow Control Hyd. Valve	-16, British
7	4205196	2	Adapter Fitting	INCLUDES TH101926
7	TH101926	1	O-Ring	SUB FOR 4506429
8	T78612	2	O-Ring	SUB FOR 4187329
9	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
9	19M8197	4	Cap Screw	M10 X 85, SUB FOR J901085
9	-	4	Part 9	J271085 NLA
10	A885008	2	Pipe Plug	INCLUDES TH101926
10	TH101926	1	O-Ring	SUB FOR 4506429
12	4190127	4	Clamp	SUB FOR TH108313
13	-	4	Part 15	J271275 NLA
13	19M8767	4	Screw	M12 X 75, SUB FOR J901275
13	24M7047	4	Washer	13 X 24 X 2.500 mm
22	TH101926	2	O-Ring	-
23	AT318016	2	Adapter Fitting	.75 in, ORFS, SUB FOR 4189537
23	AT305641	2	Fitting	.75 in, SAE, Male
23	X16F4OMXS	2	Adapter Fitting	1 in., 37 Degrees
23	AT301151	2	Fitting	1 in., SAE, Male
23	4189535	2	Adapter Fitting	1 in., ORFS
23	X1216F4OMXS	2	Adapter	.75 in, 37 Degrees
24	R29936	2	O-Ring	-
25	X1JS782016	2	Hose Fitting	Hose End - Straight 1.25 in.x 1 in.
25	X1J9782016	2	Hose Fitting	Hose End - 90 Degrees 1.25 in. x 1 in.
26	AT186111	1	Quick Coupler	1 in. Female Screw Together Coupler
27	AT186114	1	Plug	-
28	AT117364	1	Hydr. Quick Coupler Socket	Female Quick Coupler (-12) 1 1/16 SAE O -Ring
28	AT120499	1	Coupling	Female Quick Coupler (-16) 1 5/16 SAE O -Ring
29	AT117365	1	Hydr. Quick Coupler Plug	Male Quick Coupler (-12) 1 1/16 SAE O -Ring
29	AT120498	1	Coupling	Male Quick Coupler (-16) 1 5/16 SAE O -Ring
30	AT186112	1	Quick Coupler	1 in. Male Screw Together Coupler
31	AT186113	1	Cap	-
91	9763817	4	Weld Nut	-
92	4429829	2	Weld Nut	-
93	-	1	Part 38	2.42 m, Order Components Arm High Flow Auxiliary Lines Whole Goods Additional Components On Separate Pages, AT390759 NLA

Arm High Flow Auxiliary Lines, Short
