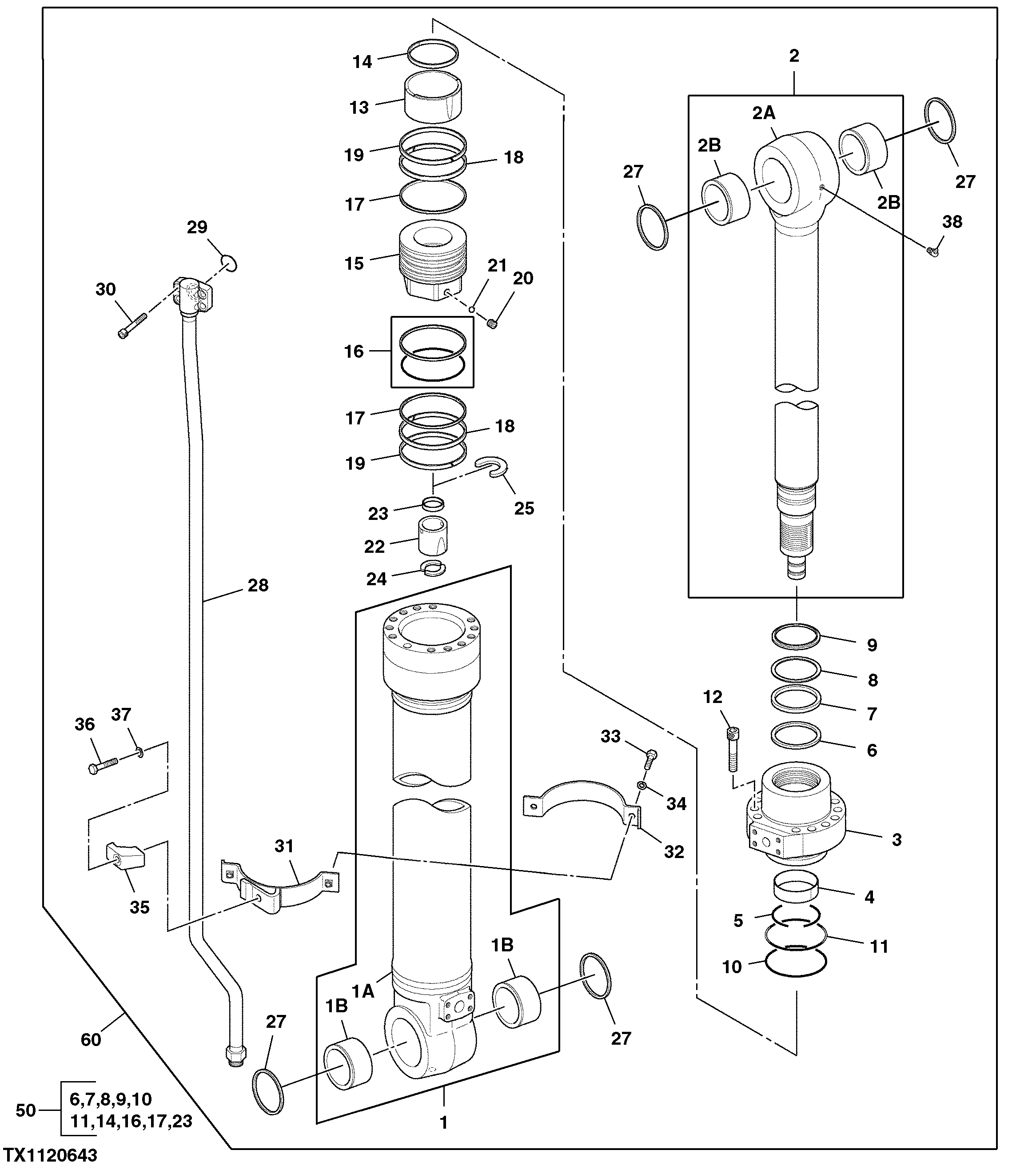

Arm Cylinder Components (Super Long Front)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	1112701G	1	Cylinder	SUB FOR 1112701
2	1112702G	1	Rod	SUB FOR 1112702
3	0836103G	1	Cylinder Head	SUB FOR 0836103
4	0836104	1	Bushing	-
5	0208504	1	Wear Ring	-
6	1112703	1	Ring	SUB FOR 4S00703
7	1112704	1	Seal	SUB FOR 4S00704
8	0836107	1	Back-Up Ring	-
9	0807904	1	O-Ring	SUB FOR 4S00772
10	AT264224	1	O-Ring	SUB FOR A811130
11	H178691	1	Back-Up Ring	SUB FOR 0789107
12	19M8913	12	Screw	M18 X 80, SUB FOR 0219305
13	0836108	1	Bearing	-
14	0836109	1	Seal	SUB FOR 4S00800
15	1112705	1	Piston	SUB FOR 1112705G
16	AH173446	1	Ring	SUB FOR 0309210
17	H178694	2	Back-Up Ring	SUB FOR 0789109
18	H227905	2	Ring	SUB FOR 0962104
19	H178696	2	Back-Up Ring	SUB FOR 0309212
20	H228111	1	Set Screw	SUB FOR 0352715
21	R26552	1	Ball	SUB FOR 0104404
22	0492210	1	Bearing	-
23	0937410	1	Seal	SUB FOR 4S00770
24	0492212	2	Stop	-
25	0492213	1	Snap Ring	-
27	TH102446	4	Seal	SUB FOR 4067902
28	1112706G	1	Pipe	SUB FOR 1112706
29	AT264348	1	O-Ring	SUB FOR 984614
30	19M8448	4	Screw	M12 X 35, SUB FOR M341236
31	AH225133	1	Clamp	SUB FOR 0962106
32	H227901	1	Clamp	SUB FOR 0309221
33	19M7550	2	Cap Screw	M10 X 35, SUB FOR J901035
34	12M7066	2	Lock Washer	10 mm, SUB FOR A590910
35	0309219	1	Clamp	-
36	19M8348	1	Cap Screw	M12 X 65, SUB FOR 0224115
37	12M7067	1	Lock Washer	12 mm, SUB FOR 0208516
38	T116334	1	Lubrication Fitting	SUB FOR 0271312
50	4672004	1	Seal Kit	-
60	9268243G	1	Hydraulic Cylinder	Super Long Front
1A	-	1	Part 2	-
1B	4332285	2	Bushing	-
2A	-	1	Part 5	-
2B	4332285	2	Bushing	-

Arm Cylinder Components (Super Long Front)
