RADIATOR AND OIL COOLER COMPARTMENT ACCESS DOORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7042069	1	Cover	-
1	-	1	Part 6	( <service-part>7042062</service-part> NLA) (SUB <service-part>7051104</service-part >, ALONG WITH <service-part>4654114</service-part> AND <service-part >4654115</service-part>
1	7051104	1	Cover	-
1	4654114	1	Isolator	(NOT ILLUSTRATED)
1	4654115	1	Isolator	(NOT ILLUSTRATED)
3	4609950	2	Stop	(SUB FOR 4424157)
4	9751797	1	Latch	-
5	4431357	1	Stop	-
6	4146559	1	Grommet	-
7	CH10542	1	Pin	(SUB FOR 4022696)
8	24M7054	1	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
9	-	4	Part 16	( J281030 NOT AVAILABLE FOR SERVICE)
9	4486055	4	Washer	-
9	19M7662	4	Cap Screw	M10 X 30, (SUB FOR J901030)
10	-	1	Part 19	( J281025 NOT AVAILABLE FOR SERVICE)
10	19M7402	1	Cap Screw	M10 X 25, (SUB FOR J901025)
10	4486055	1	Washer	-
11	-	1	Part 22	( J271035 NOT AVAILABLE FOR SERVICE)
11	19M7550	1	Cap Screw	M10 X 35, (SUB FOR J901035)
11	24M7346	1	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
12	-	7	Part 25	( J271030 NOT AVAILABLE FOR SERVICE)
12	19M7662	7	Cap Screw	M10 X 30, (SUB FOR J901030)
12	24M7346	7	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
13	-	2	Part 28	( J260635 NOT AVAILABLE FOR SERVICE)
13	19M7177	2	Cap Screw	M6 X 35, (SUB FOR J900635)
13	24M7054	2	Washer	6.400 X 12 X 1.600 mm, (SUB FOR A590106)
15	7042925	1	Cover	-
16	4486055	1	Washer	-
16	-	1	Part 32	( J281035 NOT AVAILABLE FOR SERVICE)
16	19M7550	1	Cap Screw	M10 X 35, (SUB FOR J901035)
0A	6020848	1	Cover	-
0B	4470382	1	Isolator	-
0C	4470477	1	Isolator	-
0D	4425577	1	Isolator	-

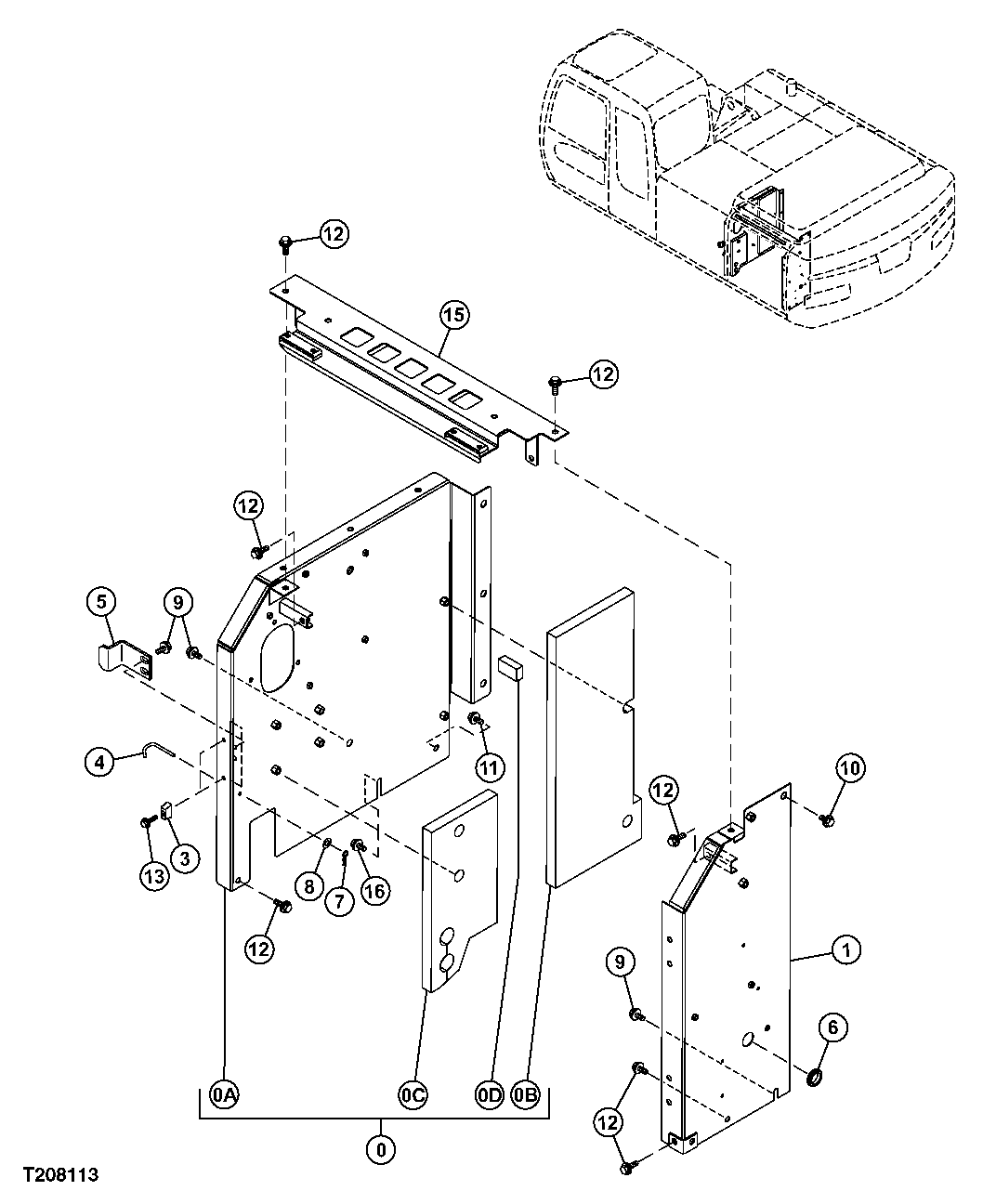

RADIATOR AND OIL COOLER COMPARTMENT ACCESS DOORS
