BOOM CYLINDER, LH (MONO BOOM)

BOOM CYLINDER, LH (MONO BOOM)

BOOM CYLINDER, LH (MONO BOOM)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

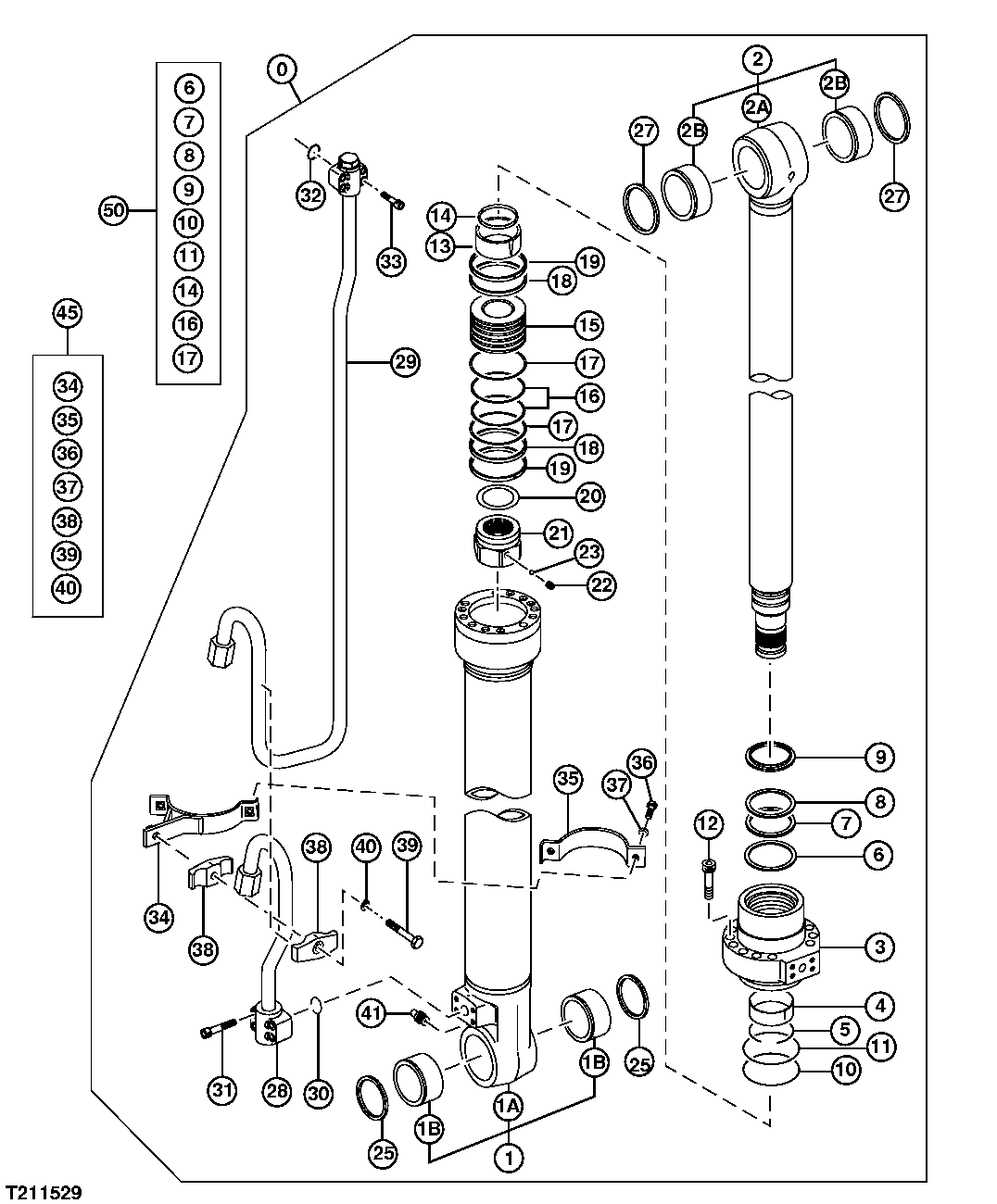

BOOM CYLINDER, LH (MONO BOOM)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9175423	1	Hydraulic Cylinder	( 4410247 NOT AVAILABLE FOR SERVICE)
1	0789001	1	Structural Tube	-
2	0788903	1	Rod	-
3	H227906	1	Ring	(SUB FOR 0788905)
4	AT264272	1	Bushing	(SUB FOR 0309004)
5	TH104944	1	Snap Ring	(SUB FOR 0208304)
6	H227911	1	Seal	(B) (SUB FOR 0788906 OR 0788911)
7	H227912	1	Seal	(B) (SUB FOR 0208305 OR AT309613)
8	AT309614	1	Back-Up Ring	(B) (SUB FOR 0208306)
9	H155911	1	Seal	(B) (SUB FOR 0667204)
10	AT264342	1	O-Ring	(B) (SUB FOR A811115)
11	4S00175	1	Back-Up Ring	(B) (SUB FOR 0261310)
12	19M8931	12	Screw	M16 X 75, (SUB FOR 0409705)
13	H155920	1	Ring	(SUB FOR 0409706)
14	H155919	1	Seal	(B) (SUB FOR 0667205)
15	H155921	1	Piston	(SUB FOR 0409708)
16	AT264355	1	Seal	(B) (SUB FOR 0258205)
17	H155916	2	Back-Up Ring	(B) (SUB FOR 0409709)
18	H227906	2	Ring	(SUB FOR 0788908)
19	AT264356	2	Wear Ring	(SUB FOR 0261308)
20	T108030	1	Shim	(SUB FOR 0309013)
21	0788907	1	Nut	-
22	22M6684	1	Set Screw	M12 X 12, (SUB FOR 0309011)
23	T13624	1	Ball	(SUB FOR 0111707)
25	TH102446	2	Seal	(SUB FOR 4067902)
27	TH102445	2	Seal	(SUB FOR 4067901)
28	0789003	1	Line	-
29	AH233836	1	Oil Line	(SUB FOR 0789004)
30	AT264348	1	O-Ring	(SUB FOR 984614)
31	19M8448	4	Screw	M12 X 35, (SUB FOR 0697201)
32	AT264360	1	O-Ring	(SUB FOR 4506430)
33	19M8337	4	Screw	M10 X 30, (USE WITH 0789004)
33	19M7662	4	Cap Screw	M10 X 30, (SUB FOR 4486953)
34	AH233834	1	Clamp	(A) (SUB FOR 0409713 OR AH148790)
35	T108048	1	Clamp	(A) (SUB FOR 0309314)
36	19M7550	2	Cap Screw	(A) M10 X 35, (SUB FOR 0408815)
37	12M7066	2	Lock Washer	(A) 10 mm, (SUB FOR 0325913)
38	0236915J	2	Holder	(A) (SUB FOR 0236915)
39	19M4789	1	Cap Screw	(A) M14 X 80, (SUB FOR 0254312)
40	12H317	1	Lock Washer	(A) 9/16", (SUB FOR A590914)
41	TH100074	1	Lubrication Fitting	(SUB FOR J75481)
45	-	1	Part 46	BAND ( 0667210 NOT AVAILABLE FOR SERVICE) (INCLUDES PARTS MARKED (A))
50	AH225136	1	Seal Kit	(INCLUDES PARTS MARKED (B)), (SUB FOR 4448398 OR 4661485)
1A	-	1	Part 3	( 0789002 NOT AVAILABLE FOR SERVICE)
1B	4352398	2	Bushing	-
2A	-	1	Part 6	( 0788904 NOT AVAILABLE FOR SERVICE)
2B	4355875	2	Bushing	-
