BLADE AND OUTRIGGER POWER TAKEOFF COMPONENTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7042052	1	Bracket	-
1	-	4	Part 2	( J271035 NOT AVAILABLE FOR SERVICE)
1	19M7550	4	Cap Screw	M10 X 35, (SUB FOR J901035)
1	24M7346	4	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
3	J921280	3	Bolt	-
4	12H301	3	Lock Washer	1/2", (SUB FOR A590912)
13	H77698	3	Tie Band	(SUB FOR 4055312)
14	A853344	2	Elbow Fitting	-
14	4506418	1	O-Ring	-
15	A853144	1	Adapter Fitting	-
15	4506418	1	O-Ring	-
16	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR 4509180)
16	4198407	1	Adapter Fitting	-
18	-	1	Part 14	( 9230207 NOT AVAILABLE FOR SERVICE)
19	T77857	4	O-Ring	(SUB FOR 4138938)
20	-	1	Part 18	( 9223898 NOT AVAILABLE FOR SERVICE)
22	4202112	1	Elbow Fitting	-
22	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR 4509180)
23	TH110477	3	Fitting	(SUB FOR A885004)
23	4506418	1	O-Ring	-
24	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32"), (SUB FOR 4509180)
24	A885003	2	Pipe Plug	-
30	4467405	1	Control Valve	-
31	4603261	1	Valve	-
18A	4484097	1	Hose	-
18B	-	1	Part 16	(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH), ( 4327294 NLA)
20A	4484096	1	Hose	-
20B	-	3	Part 20	(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH), ( 4327294 NLA)

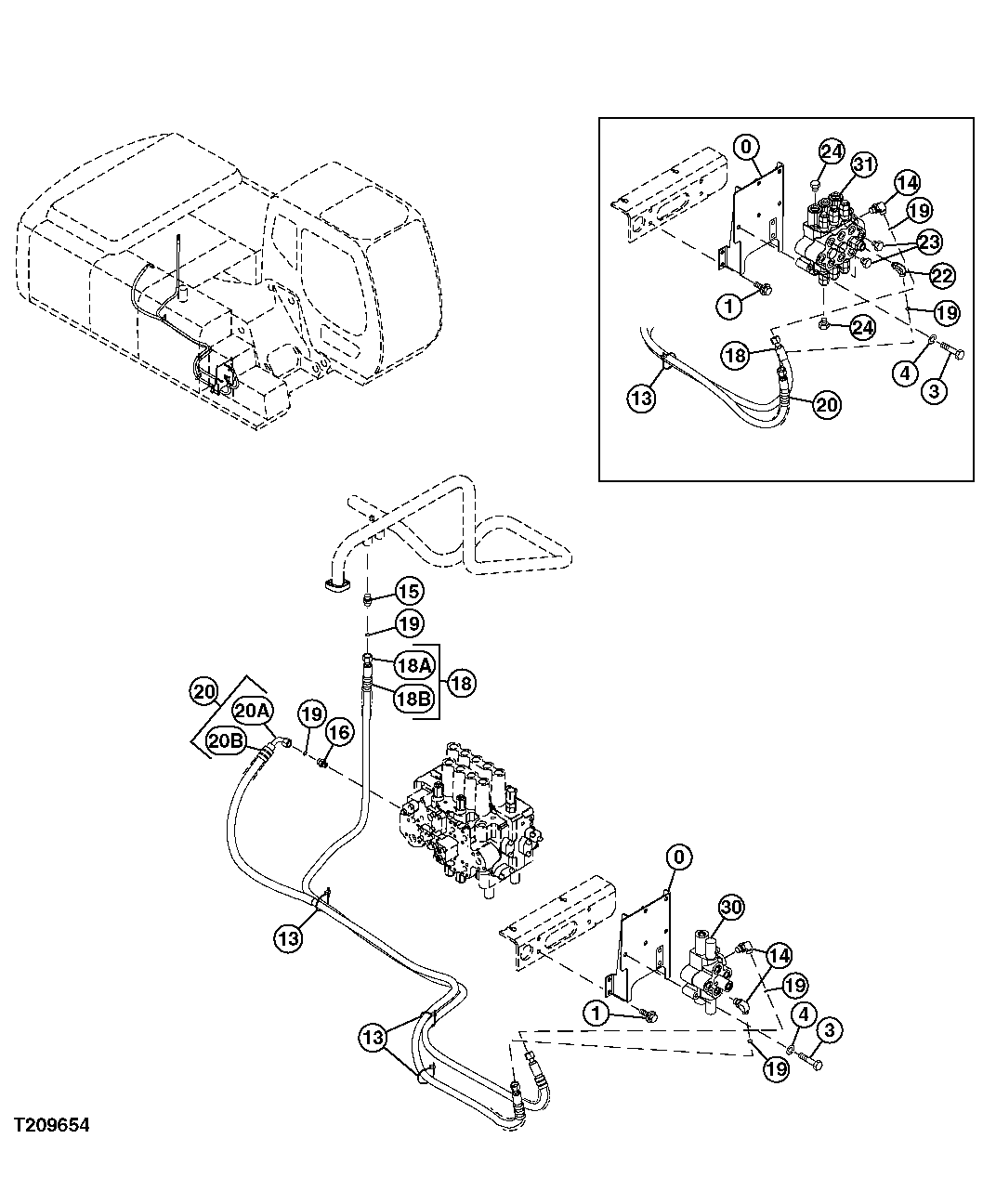

BLADE AND OUTRIGGER POWER TAKEOFF COMPONENTS
