Открытый узел

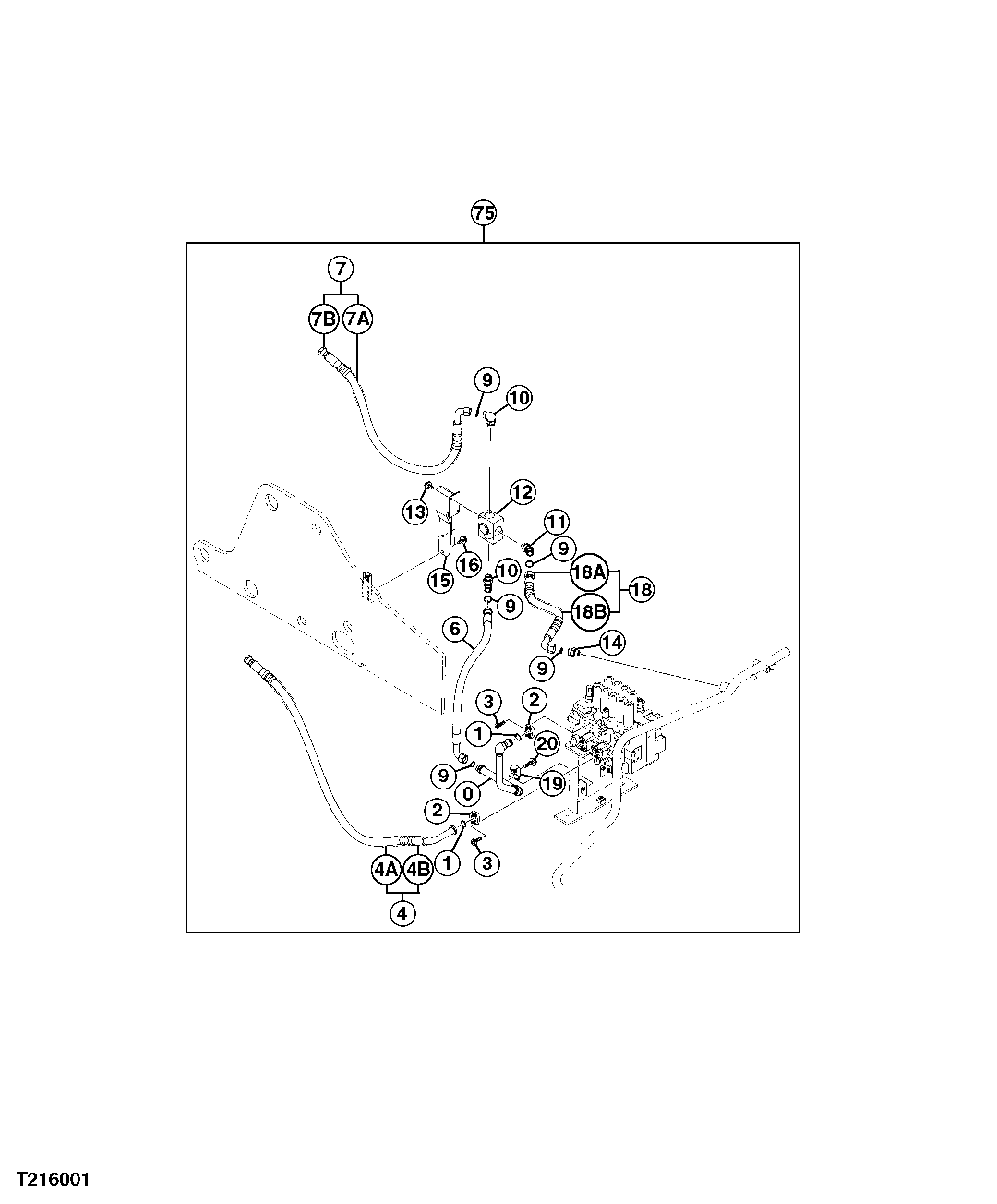

AUXILIARY HYDRAULIC FIELD KIT (HAMMER) (MONO & TWO PIECE BOOM)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	8090125	1	Oil Line	-
1	966993	2	O-Ring	-
2	H61354	4	Flange Fitting	(SUB FOR 962453)
3	19M7576	8	Screw	M10 X 30, (SUB FOR J781030)
4	9210539	1	Hydraulic Hose	-
6	4308972	1	Hydraulic Hose	-
7	9220438	1	Hydraulic Hose	-
9	T76938	5	O-Ring	(SUB FOR 4187328)
10	A853388	2	Elbow Fitting	-
10	TH101926	1	O-Ring	(SUB FOR 4506429)
11	A853288	1	Elbow Fitting	-
11	TH101926	1	O-Ring	(SUB FOR 4506429)
12	4455599	1	Valve	-
13	-	2	Part 18	( J271230 NO LONGER AVAILABLE)
13	24M7345	2	Washer	13.500 X 24 X 2.500 mm, (SUB FOR J222012)
13	19M8011	2	Cap Screw	M12 X 30, (SUB FOR J901230)
14	A853188	1	Adapter Fitting	-
14	TH101926	1	O-Ring	(SUB FOR 4506429)
15	8090231	1	Bracket	-
16	-	2	Part 24	( J271235 NO LONGER AVAILABLE)
16	19M7403	2	Cap Screw	M12 X 35, (SUB FOR J901235)
16	24M7345	2	Washer	13.500 X 24 X 2.500 mm, (SUB FOR J222012)
18	9225079	1	Hydraulic Hose	-
19	4190127	1	Clamp	-
20	24M7047	1	Washer	13 X 24 X 2.500 mm
20	19M8767	1	Screw	M12 X 75
20	-	1	Part 31	( J271275 NLA)
75	-	1	Part 35	(TWO PIECE BOOM) (CONTAINS ALL COMPONENTS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES) (WHOLE GOODS), ( AT320904 NLA)
75	-	1	Part 34	(MONO BOOM) (CONTAINS ALL COMPONENTS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES) (WHOLEGOODS), ( AT317410 NLA)
4A	-	1	Part 6	(MAKE FROM XHG-075 , CUT TO LENGTH) (BULK MATERIAL) ( 4327294 NLA)
4B	4439931	1	Hydraulic Hose	-
7A	-	1	Part 10	(MAKE FROM XHG-075 , CUT TO LENGTH) (BULK MATERIAL) ( 4327294 NLA)
7B	4448914	1	Hydraulic Hose	(SUB FOR 4601098)
18A	4601431	1	Hydraulic Hose	-
18B	-	1	Part 29	(MAKE FROM XHG-075 , CUT TO LENGTH) (BULK MATERIAL) ( 4327294 NLA)

AUXILIARY HYDRAULIC FIELD KIT (HAMMER) (MONO & TWO PIECE BOOM)
