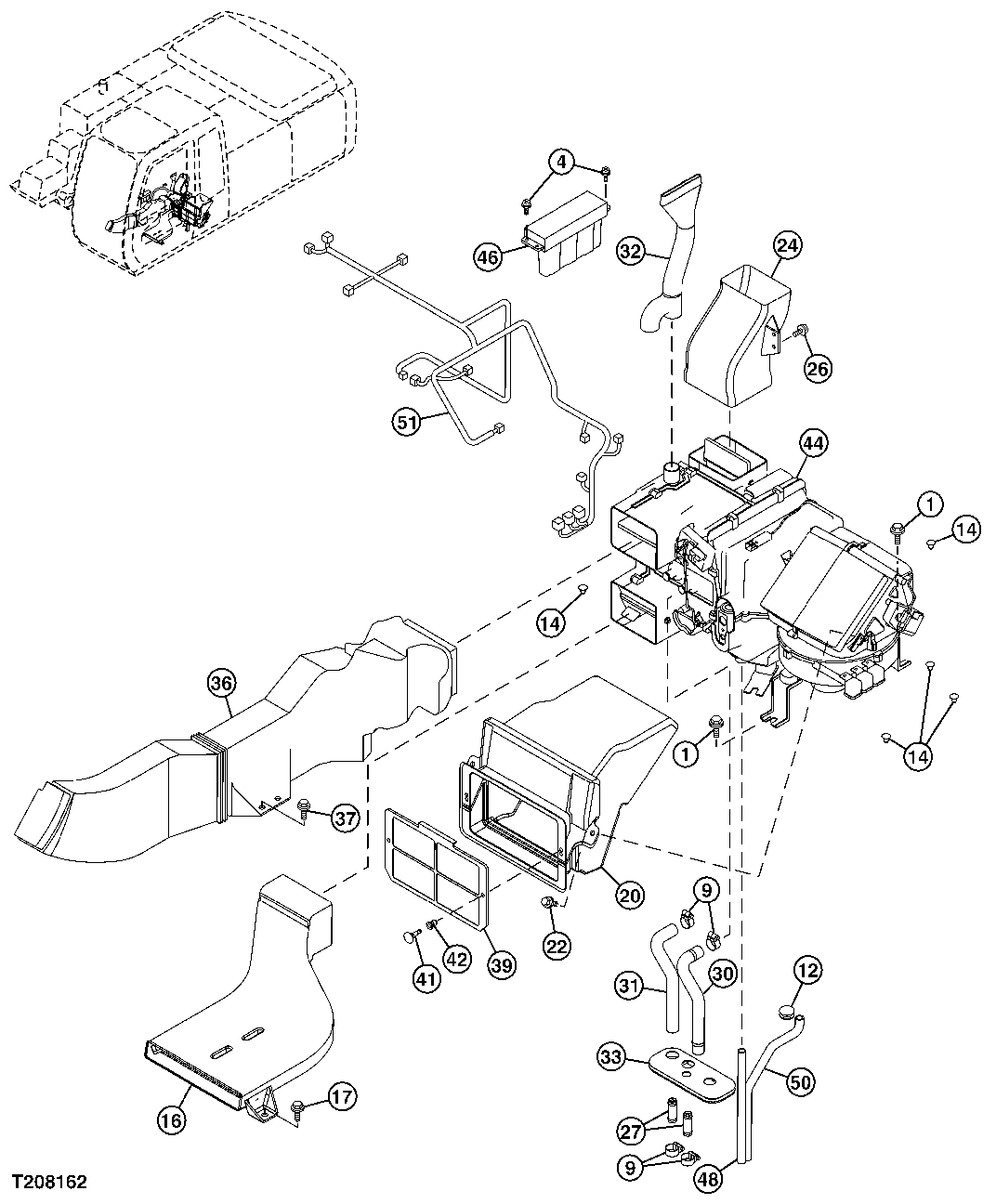

AIR CONDITIONER UNIT DUCTS AND HOSES

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7402	6	Cap Screw	M10 X 25, (SUB FOR J901025)
1	-	6	Part 1	( J271025 NO LONGER AVAILABLE)
1	24M7346	6	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
4	21M7265	4	Screw	M5 X 12, (SUB FOR J460514)
9	FF500010	4	Hose Clamp	(SUB FOR 4514699)
12	4205084	2	Grommet	-
14	4280359	6	Plug	-
16	4426155	1	Air Duct	-
17	-	2	Part 9	( J271030 NOT AVAILABLE FOR SERVICE)
17	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901020)
17	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
20	4426162	1	Air Duct	-
22	-	2	Part 13	( J260820 NOT AVAILABLE FOR SERVICE)
22	19M7139	2	Cap Screw	M8 X 20, (SUB FOR J900820)
22	24M7055	2	Washer	8.400 X 16 X 1.600 mm, (SUB FOR A590108)
24	4426157	1	Air Duct	-
26	12M7006	2	Lock Washer	6 mm
26	24M7293	2	Washer	6.500 X 13 X 1.600 mm
26	-	2	Part 17	( J460616 NOT AVAILABLE FOR SERVICE)
26	19M8425	2	Cap Screw	M6 X 16
27	4347396	2	Fitting	-
30	4430872	1	Hose	(SUB FOR 4430873)
31	4430872	1	Hose	-
32	4436441	1	Air Duct	-
33	2044922	1	Bushing	-
36	4426158	1	Air Duct	-
37	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)
37	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J222010)
37	-	2	Part 27	( J271030 NOT AVAILABLE FOR SERVICE)
39	4441139	1	Grille	-
41	4441059	2	Clip	-
42	4441061	2	Clip	-
44	4609049	1	Air Conditioner	-
46	4713662	1	Air Heater Controller	(SUB FOR 4692239)
48	TY24399	1	Bulk Hose	(CUT TO LENGTH, 275 MM), (SUB FOR 4430870)
50	4430871	1	Hose	-
51	4610412	1	Wiring Harness	-

AIR CONDITIONER UNIT DUCTS AND HOSES
