Air Conditioner Compressor Bracket, Drive Belt And Refrigerant

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	12M7066	5	Lock Washer	10 mm, SUB FOR A590910
5	24M7028	5	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
6	4346770	1	Pulley	-
7	19M8404	4	Cap Screw	M8 X 130, SUB FOR J900806
8	-	4	Part 5	12M7065 NLA
9	24M7055	4	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
11	4413418	1	Hose	-
14	-	4	Part 10	J271020 NOT AVAILABLE FOR SERVICE
14	19M7938	4	Cap Screw	M10 X 20, SUB FOR J901020
14	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR J222010
16	-	1	Part 13	J260835 NOT AVAILABLE FOR SERVICE
16	19M7298	1	Cap Screw	M8 X 35, SUB FOR J900835
16	24M7055	1	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
17	H77698	5	Tie Band	SUB FOR 4055312
19	J241040	1	Bolt	-
21	19M8584	2	Cap Screw	M10 X 30, SUB FOR J241030
22	J241060	2	Bolt	-
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm, SUB FOR A590108
25	9753632	2	Bracket	-
29	7038468	1	Bracket	-
30	4198588	1	V-Belt	SUB FOR 4410219
31	XCL-19	1	Hose Clamp	SUB FOR 4192035
32	-	1	Part 25	J271020 NOT AVAILABLE FOR SERVICE
32	19M7938	1	Cap Screw	M10 X 20, SUB FOR J901020
32	24M7346	1	Washer	11 X 20 X 2 mm, SUB FOR J222010
34	H77698	3	Tie Band	-
35	-	4	Part 29	J260820 NOT AVAILABLE FOR SERVICE
35	19M7139	4	Cap Screw	M8 X 20, SUB FOR J900820
35	24M7346	4	Washer	11 X 20 X 2 mm, SUB FOR A590108
36	24M7054	1	Washer	6.400 X 12 X 1.600 mm, SUB FOR A590106
36	19M7286	1	Cap Screw	M6 X 25, SUB FOR J900625
36	-	1	Part 32	J260625 NOT AVAILABLE FOR SERVICE
11A	4370247	1	Cap	-
11B	4421946	2	O-Ring	-

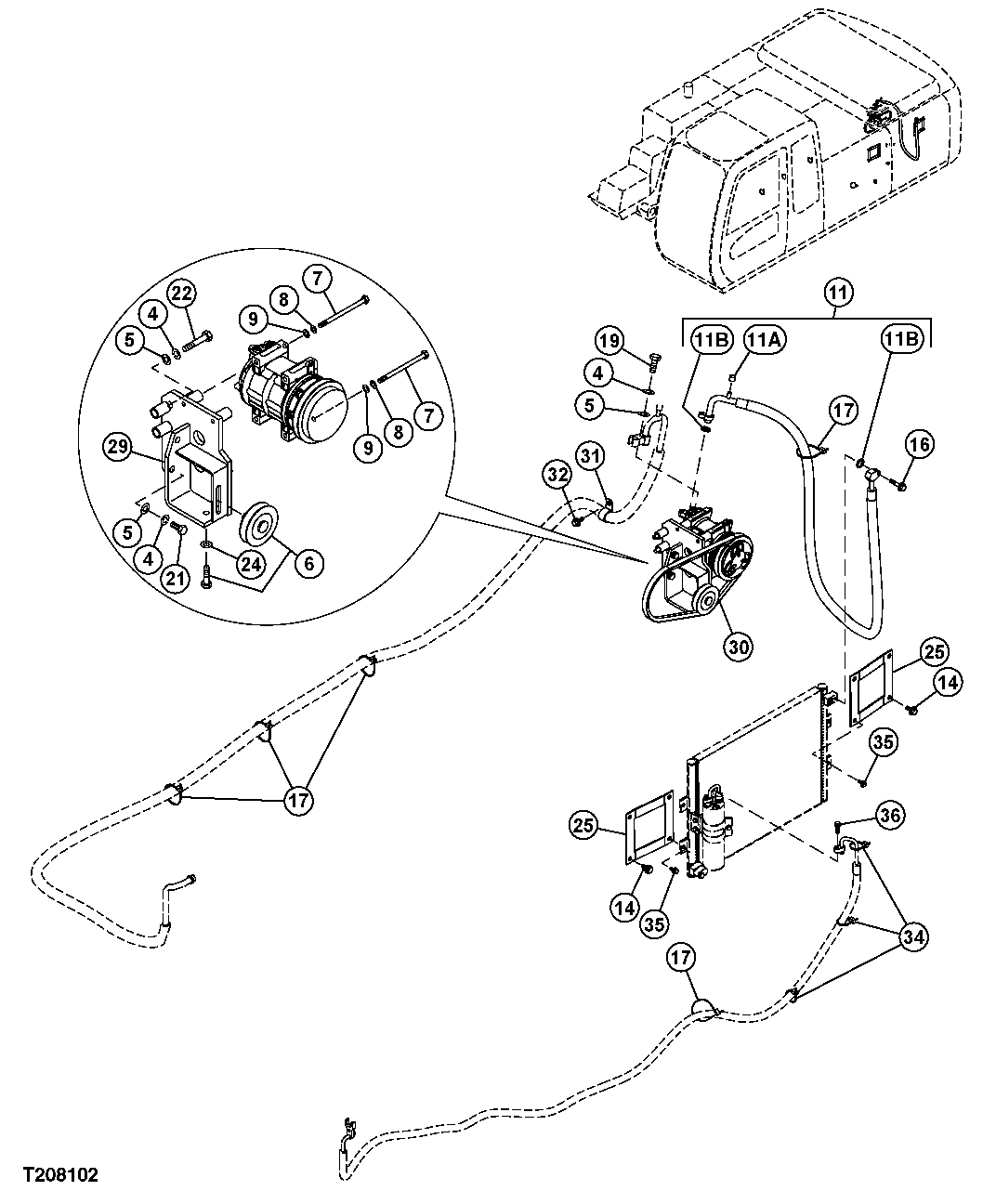

Air Conditioner Compressor Bracket, Drive Belt And Refrigerant

Нет текстового описания
