Transmission Harness, Front End Transmission

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL180297	1	Wiring Harness	-
2	L115277	6	Clip	-
3	L110765	1	Clamp	-
4	L41858	1	Tie Band	-
5	L155049	2	Holder	-
6	19M7008	1	Cap Screw	M8 X 10
7	L153768	5	Clip	-
8	37M7240	2	Screw	-
9	L153769	2	Clamp	-
10	L111827	1	Clamp	-
11	24M7055	1	Washer	8.400 X 16 X 1.600 mm
12	57M8195	1	Elec. Connector Housing	(Cab Transmission Front)
12	57M8097	1	Retainer	-
13	57M7365	1	Elec. Connector Housing	(Sensor Oil Pressure)
13	57M7289	1	Elec.Connect Locking Device	-
14	57M7365	1	Elec. Connector Housing	(Sensor Oil- Filter)
14	57M7289	1	Elec.Connect Locking Device	-
15	57M7213	1	Elec. Connector Housing	(High Temperature Switch)
16	57M7210	1	Elec. Connector Accessory	(Low Temperature Switch)
17	57M7379	1	Elec. Connector Housing	(Front Wheel Drive Solenoid)
18	57M7328	1	Elec. Connector Housing	(Start Safety Switch)
18	57M7289	1	Elec.Connect Locking Device	-
19	57M7255	1	Elec. Connector Housing	(Fuel Gauge)
19	57M7317	1	Elec. Connector Accessory	-
19	57M7259	1	Elec. Connector Seal	-
20	AL161566	1	Wiring Harness	-
21	R232182	1	Clip	-

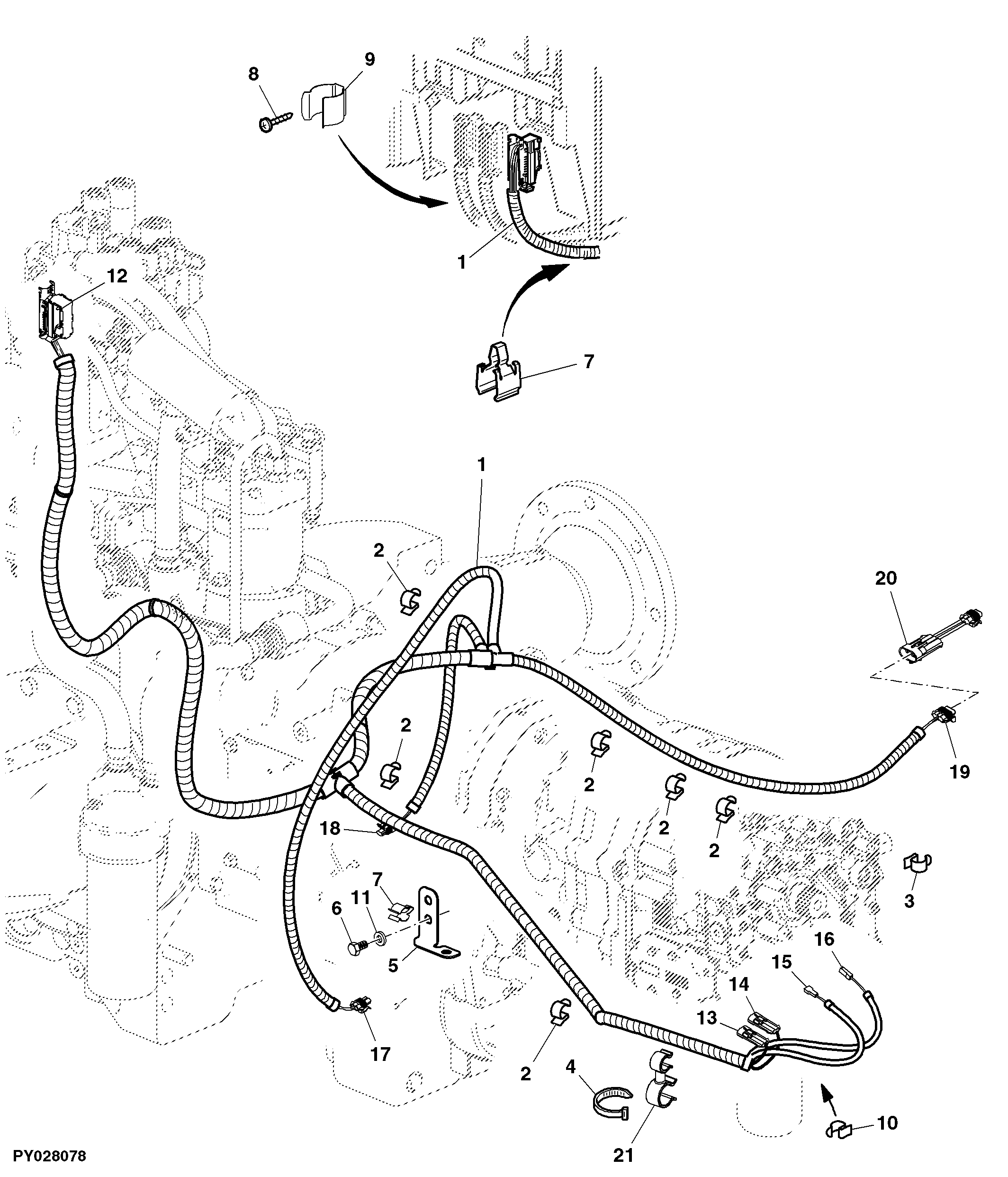

Transmission Harness, Front End Transmission
