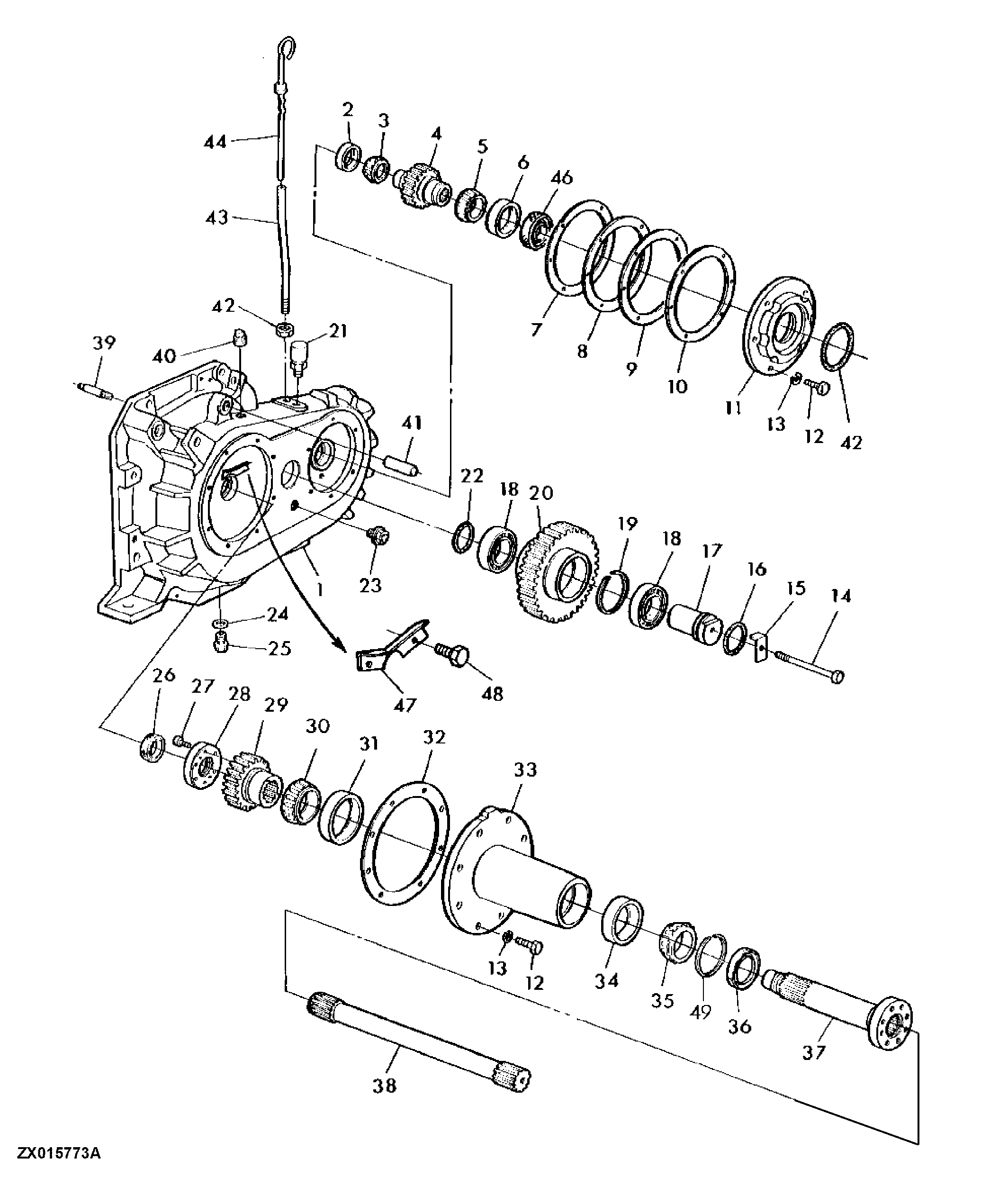

INTERMEDIATE DRIVE, HOUSING AND SHAFTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ49960	1	Housing	(SUB FOR AZ49335)
1	AZ42968	1	Housing	INCL KEY 41 (ORD AZ49335, AT23141, Z61863, 14M7357)
2	Z53552	1	Bearing Cup	-
3	AZ41923	1	Bearing Cone	-
4	Z12885	1	Gear	(SUB FOR Z12521)
5	JD10524	1	Bearing Cone	-
6	JD10526	1	Bearing Cup	-
7	Z53367	1	Shim	-
8	Z53366	1	Shim	-
9	Z53365	1	Shim	-
10	Z53364	1	Shim	-
11	Z12884	1	Cover	(SUB FOR Z12268)
12	19M7168	14	Cap Screw	M10 X 30
13	12M7013	14	LOCK WASHER	10.200 mm
14	19M7346	1	Cap Screw	M10 X 110
15	Z53556	1	Angle	-
16	Z58296	1	O-Ring	-
17	Z58294	1	Pin Fastener	-
18	AZ46065	2	Tapered Roller Bearing	-
19	Z58293	1	Snap Ring	-
20	Z12259	1	Gear	-
21	AZ48187	1	Pressure Relief Fitting	-
22	Z58295	1	O-Ring	(SUB FOR AZ46136)
23	AZ47980	1	Gauge	-
24	51M4234	1	Sealing Ring	-
25	AZ35783	1	Pipe Plug	-
26	AZ41926	1	Seal	-
27	19M7657	1	Screw	M8 X 25
28	Z57919	1	Nut	-
29	Z12353	1	Helical Gear	-
30	AZ43476	1	Bearing Cone	-
31	Z55493	1	Bearing Cup	-
32	Z53563	1	Sealing Washer	-
33	Z12269	1	Housing	-
34	Z53557	1	Bearing Cup	-
35	AZ41924	1	Bearing Cone	-
36	AZ48796	1	Seal	(SUB FOR AZ41925)
37	Z12262	1	Shaft	-
38	Z53560	1	Shaft	-
39	42M7043	2	Stud	-
40	15H238	1	Pipe Plug	3/4"
41	Z51675	1	Pin Fastener	-
42	R63308	1	O-Ring	-
43	Z62517	1	Dipstick Tube	-
43	Z62517	1	Dipstick Tube	-
43	Z62517	1	Dipstick Tube	-
43	Z61863	1	Dipstick Tube	-
44	AT23141	1	Dipstick	-
45	14M7357	1	Nut	M12
46	AZ49370	1	Seal	-
47	Z63708	1	Sheet	-
48	19M7300	2	Cap Screw	M6 X 10
49	Z62549	1	Snap Ring	-

INTERMEDIATE DRIVE, HOUSING AND SHAFTS
