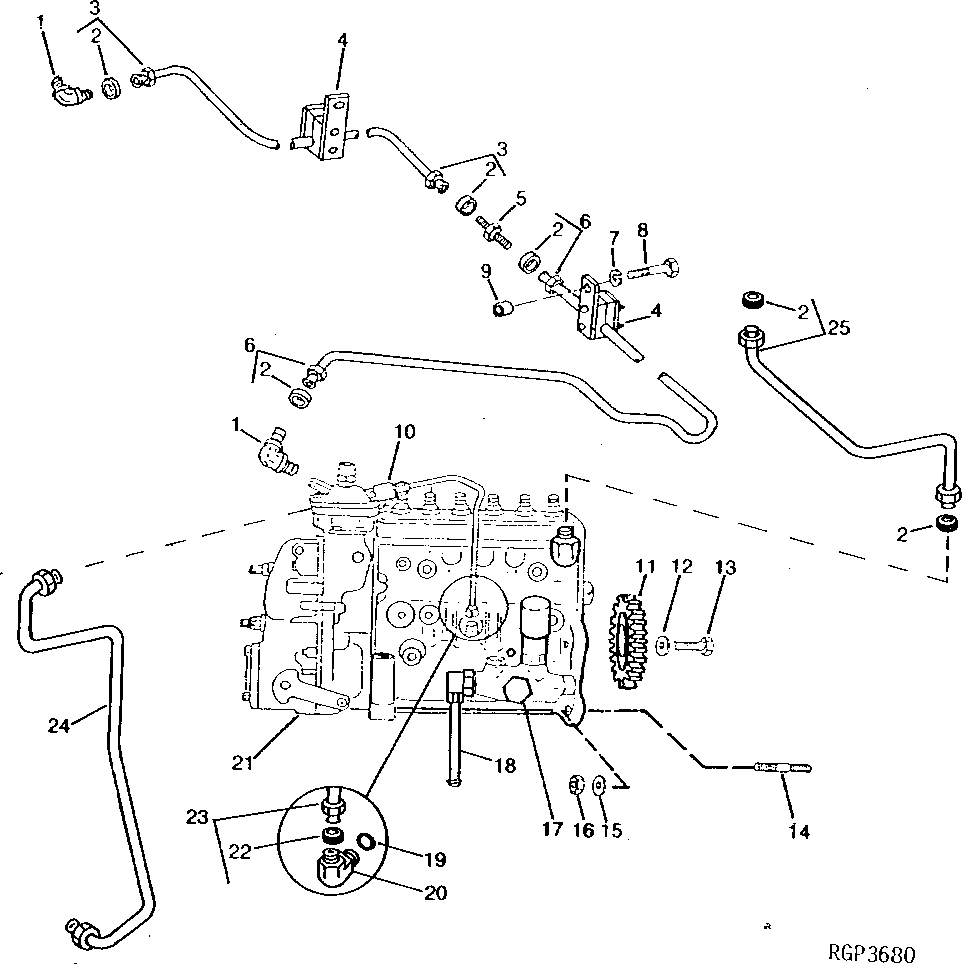

FUEL INJECTION PUMP, FUEL CONTROL LINES AND LUBE PIPE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R67364	2	Elbow Fitting	-
2	R51936	6	Sealing Washer	-
3	AR98655	1	Aneroid Line	-
4	R72818	2	Strap	-
4	R70407	4	Clamp	-
4	R72817	2	Strap	-
4	21H1463	4	Cap Screw	0.190" X 7/8"
4	12H246	4	LOCK WASHER	0.190", NA
5	R67271	1	Union Fitting	-
6	RE49590	1	Aneroid Line	-
7	12H304	1	Lock Washer	3/8"
8	19H3483	1	Cap Screw	3/8" X 1-1/8"
9	28H1522	1	Spacer	0.493" X 0.675" X 11/16", NA
9	28H1518	1	Washer	0.493" X 0.675" X 5/16"
10	AR87636	1	Tee Fitting	-
11	R104590	1	Gear	-
12	R63845	4	Washer	-
13	19H3690	4	Screw	3/8" X 3/4"
14	R114130	4	Stud	(SUB FOR R55396)
15	M72490	4	Washer	(SUB FOR R42729)
16	14H1090	4	Nut	3/8", (SUB FOR R32511, E55662, APPL)
17	RE46252	1	Fuel Pump	(ROBERT BOSCH)
18	RE44843	1	Fuel Line	-
19	R79060	1	O-Ring	-
20	AR88903	1	Elbow Fitting	-
21	RE47398	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED) ROBERT BOSCH PES6P120A720RS3203 (ORD W/ R112128, (2) 19M7692)
21	RE47399	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR PARTS NOT LISTED) ROBERT BOSCH PES6P120A720RS3203 (ORD W/ R112128, (2) 19M7692)
22	R67264	2	Packing	-
23	AR87561	1	Oil Line	-
24	RE44030	1	Oil Line	-
24	R51936	2	Sealing Washer	-
24	R63604	1	Fitting	-
25	RE49589	1	Fuel Line	-

FUEL INJECTION PUMP, FUEL CONTROL LINES AND LUBE PIPE
