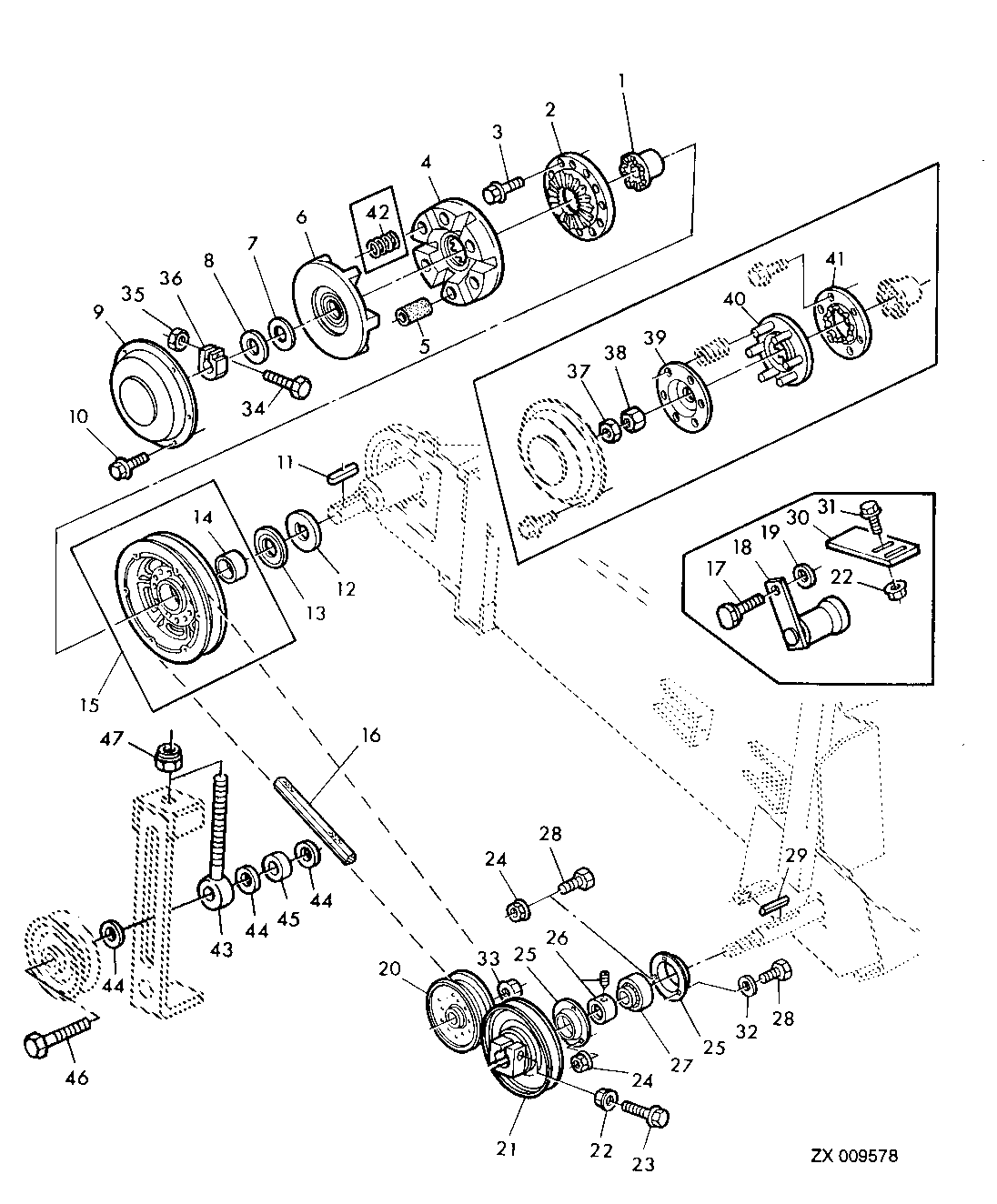

FEEDER HOUSE DRIVE, R.H., HILLMASTER

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	Z12483	1	Hub	-
2	Z12773	1	Clutch Disk	-
3	19M6283	1	Cap Screw	M8 X 18
4	Z12774	1	Clutch Disk	-
5	Z61849	6	Bushing	-
6	Z12679	1	Guard	-
7	24M7052	1	Washer	25 X 44 X 4 mm
8	Z60136	1	Guard	-
9	Z62029	1	Cover	(SUB FOR Z59570)
10	19M7866	1	Screw	M8 X 20
11	49M7013	1	Shaft Key	10 X 8 X 130 mm
12	Z62144	1	Washer	(SUB FOR Z57170)
13	Z57171	1	Washer	-
14	Z53112	1	Bushing	-
15	AZ47254	1	Pulley	-
15	AZ49546	1	Sheave Assembly	-
16	Z58752	1	V-Belt	-
16	Z59419	1	V-Belt	-
17	Z55810	1	Wheel Bolt	-
18	AZ33982	1	TIGHTENER	-
19	Z20360	1	SPACER	-
20	AE22622	1	Idler	-
21	Z12393	1	Pulley	-
21	AZ49543	1	Drive Disk	(SUB FOR Z12900)
22	14M7296	1	Flange Nut	M10
23	19M7810	1	Screw	M10 X 80
24	14M7299	1	Flange Nut	M12
25	Z34740	2	PRESSED FLANGED HOUSING	-
26	JD9201	1	Eccentric Locking Collar	-
27	AE48913	1	Ball Bearing	-
28	03M7200	1	Bolt	M12 X 40
29	N34753	1	Shaft Key	-
30	Z62045	1	Adjusting Strap	(SUB FOR Z55592)
31	19M7785	1	Screw	M10 X 25
32	24M1607	1	Washer	14 X 24 X 2.500 mm
33	14M7291	1	Flange Nut	M16
34	19M8318	1	Screw	M8 X 45
35	14M7166	1	Lock Nut	M8
36	Z62032	1	Clamp	(SUB FOR Z60283)
36	Z62146	1	Locking Collar	-
37	14M7212	1	NUT	M24
38	14M7143	1	Nut	M24
39	Z59571	1	Guard	-
40	AZ47253	1	Clutch Disk	-
41	Z12604	1	Clutch Disk	-
42	Z53296	6	SPRING	-
43	Z60200	1	Bolt	-
44	L18889	3	Washer	-
45	Z29422	1	Spacer	-
46	19M7845	1	Screw	M16 X 90
47	14M7170	1	Lock Nut	M16
