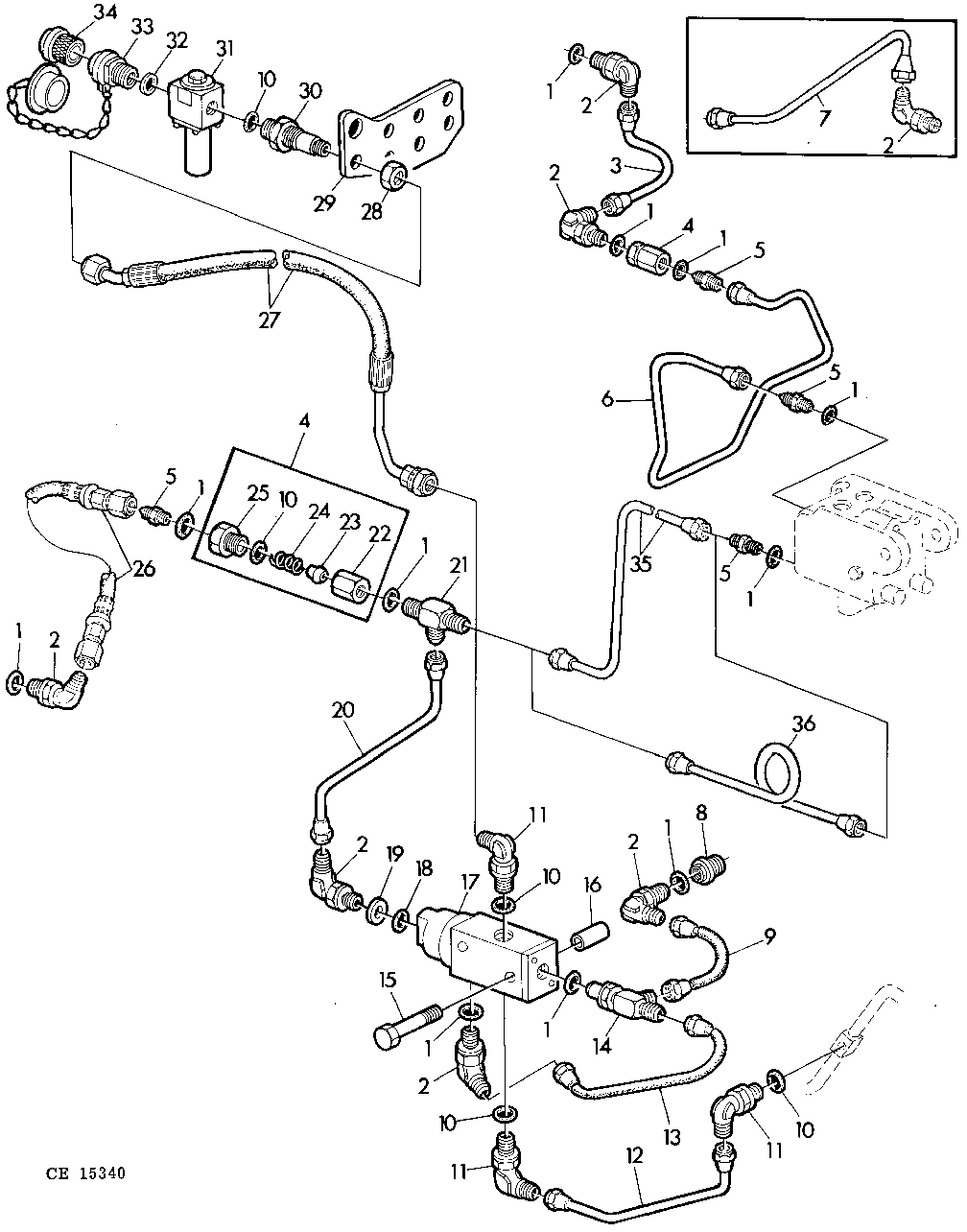

HYDRAULIC TRAILER BRAKE/LINES [02J17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26287	11	O-Ring	-
2	AR26746	7	Elbow Fitting	-
3	AL33371	1	Oil Line	LH
4	AL25103	2	Valve	-
5	R27139	3	FITTING	-
6	AL33372	1	Oil Line	LH
7	AL25110	1	OIL LINE	RH
8	L28639	1	Pipe Plug	-
9	AL36122	1	Hose	(SUB FOR AL23076)
10	R26448	6	O-Ring	-
11	AR26725	3	ELBOW FITTING	-
12	AL23897	1	OIL LINE	(A)
12	AL35439	1	Oil Line	(A)
12	AL35072	1	Oil Line	-
12	AL23899	1	OIL LINE	-
13	AL36123	1	Hydraulic Hose	(SUB FOR AL25104)
14	AL25099	1	TEE FITTING	1,2MM
14	AL25791	1	TEE FITTING	1,4MM
15	19H2054	1	CAP SCREW	3/8"X4-3/4"
16	28H1521	1	Spacer	3/8"X.562"
16	L28809	1	SPACER	(A) 14X66MM
17	AL25867	1	VALVE	ASSY
18	L53811	1	O-Ring	-
19	51M4234	1	Sealing Ring	12X16MM
20	AL25109	1	OIL LINE	-
20	AL36187	1	Oil Line	-
21	AR45251	1	Tee Fitting	-
22	L30719	2	Valve	-
23	L30722	2	Poppet	-
24	L30720	2	Compression Spring	-
25	L30721	2	Valve Cover	-
26	AL36198	1	Hydraulic Hose	RH
27	AL35090	1	Hose	(SUB FOR AL24715)
28	14M7160	1	Nut	20X1,5MM
29	L30207	1	PLATE	-
30	L35882	1	Union Fitting	-
31	AL34676	1	VALVE	-
32	L37599	1	Sealing Ring	-
33	AR52372	1	PLUG	(SUB FOR AL31944)
34	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
35	AL36188	1	Oil Line	-
36	AL36186	1	OIL LINE	-
