Открытый узел

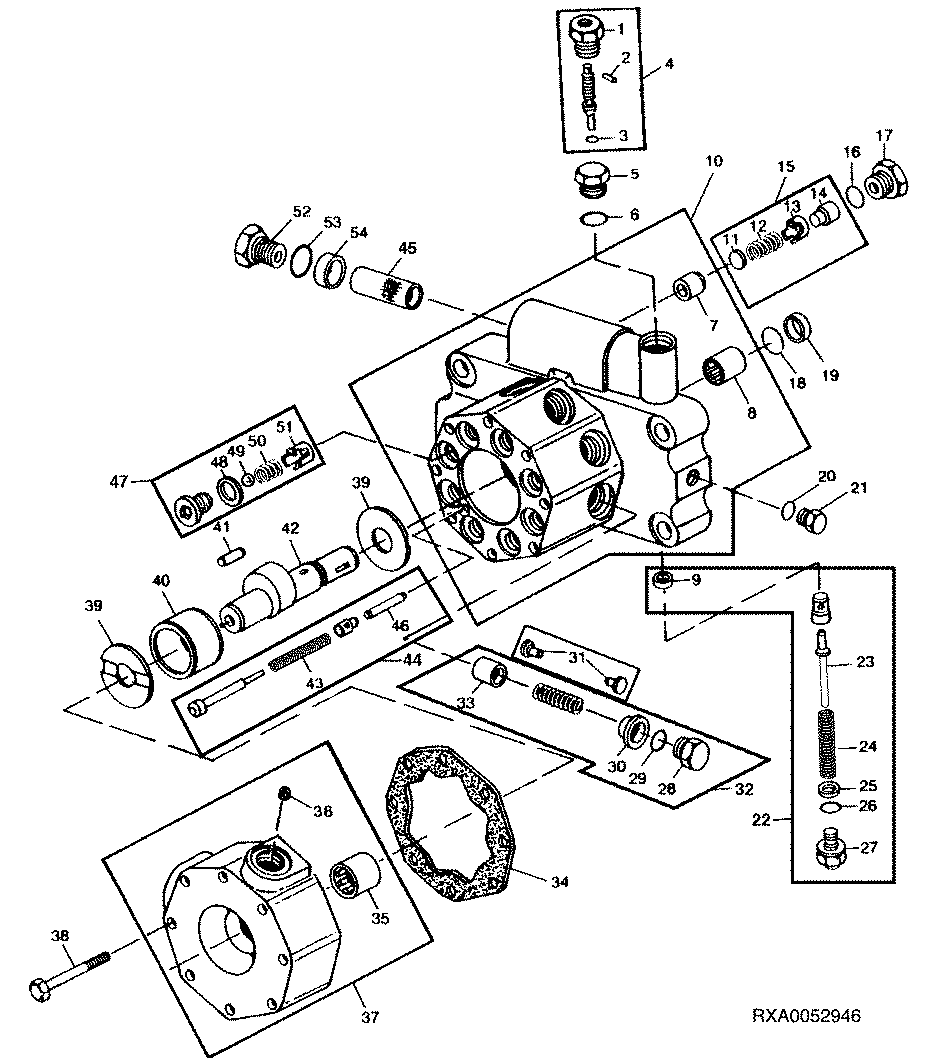

HYDRAULIC PUMP - MODEL CA1 23 CM3 (1.38 IN.3) [02B11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38053	1	DRAIN PLUG	-
2	34H254	1	Spring Pin	1/8" X 1-1/2"
3	R30903	1	O-Ring	-
4	AR38225	1	Hydraulic Pump	(MANUAL DESTROKE)(OPTIONAL)
5	R39112	1	Fitting	(USE WITHOUT MANUAL DESTROKE)
6	R26375	1	O-Ring	-
7	R105583	8	Valve Seat Insert	(SUB FOR R39067)
8	JD9858	1	NEEDLE BEARING	-
9	R72936	1	VALVE SEAT INSERT	(SUB AL71019)
10	AR39170	1	HOUSING	(MARKED R39317 OR R60969) (SUB AR89075) (ALSO ORDER (2) R68382, R68381, R39112 AND R26375)
10	AR89075	1	HOUSING	(MARKED R68385)
11	R49297	8	DISK	-
12	R39228	8	SPRING	-
13	R48738	8	GUIDE	-
14	R83508	8	Stop	(SUB FOR R72886)
15	RE23382	8	Valve	(OUTLET) (SUB FOR AR52785 OR AR96613)
16	R26375	8	O-Ring	-
17	R39112	8	Fitting	-
18	R39182	1	RING	(USE WITH R39317 OR R60969)
18	R63605	1	O-RING	(USE WITH R68385)
19	AR39052	1	SEAL	-
20	R26286	1	O-Ring	-
21	R27094	1	Drain Plug	-
22	AL71019	1	Valve Kit	(SUB FOR R68384)
23	R68383	1	GUIDE	(USE WITH R39317 OR R60969) (SUB AL71019 AND AR103040)
23	R76167	1	GUIDE	(USE WITH R68385)
24	R39240	1	SPRING	-
25	24M7096	1	Washer	10.500 X 18 X 1.600 MM, (USE WITH R39317 OR R60969)
26	R26906	1	O-Ring	-
27	AR39106	1	SCREW	(USE WITH R39317 OR R60969) (SUB AR103040 AND AL71019)
27	AR103040	1	SCREW	(USE WITH R76167) (SUB FOR AR89073) (SUB AL71019)
28	R39112	8	Fitting	-
29	R26375	8	O-Ring	-
30	AR101238	1	SHIELD	(SET OF 8)
31	R39070	16	GUIDE	(USE WITH R39317 OR R60969)
32	AL71018	1	Piston Kit	(SET OF 8) (SUB FOR AR39041)
33	R63022	8	PISTON	(ALSO ORDER R63629)
34	L62442	1	Gasket	(SUB FOR R59234)
35	JD9858	1	NEEDLE BEARING	-
36	R39321	1	ORIFICE	-
37	AR90453	1	COVER	(MARKED R39318, R68380 OR R81065)
38	19H1944	8	Cap Screw	3/8" X 2-3/4"
39	R66164	2	THRUST WASHER	-
40	R63629	1	BEARING RACE	(ALSO ORDER (8) R63022)
41	R39073	33	NEEDLE ROLLER	-
42	R39319	1	SHAFT	-
43	R68390	1	SPRING	-
44	AL71017	1	Valve Kit	(SUB FOR R39181)
45	R27173	1	FILTER ELEMENT	(USE WITH R39317 OR R60969)
45	R68381	1	FILTER	(USE WITH R68385)
46	R39179	1	NEEDLE ROLLER	-
47	AL71016	8	Valve Kit	(SUB FOR R68553)
48	R26375	8	O-Ring	-
49	D2361R	8	Ball	-
50	R39078	8	Spring	-
51	R39076	8	Guide	-
52	R27175	1	Drain Plug	(USE WITH R39317 OR R60969)
52	R39112	1	Fitting	(USE WITH R68385)
53	F3171R	1	O-Ring	(USE WITH R39317 OR R60969)
53	R26375	1	O-Ring	(USE WITH R68385)
54	R27174	2	PACKING	(USE WITH R39317 OR R60969)
54	R68382	2	PACKING	(USE WITH R68385)
..	AR103033	1	HYDRAULIC PUMP	(A) (SUB FOR AR39168 OR AR89064)

HYDRAULIC PUMP - MODEL CA1 23 CM3 (1.38 IN.3) [02B11]

Нет текстового описания
