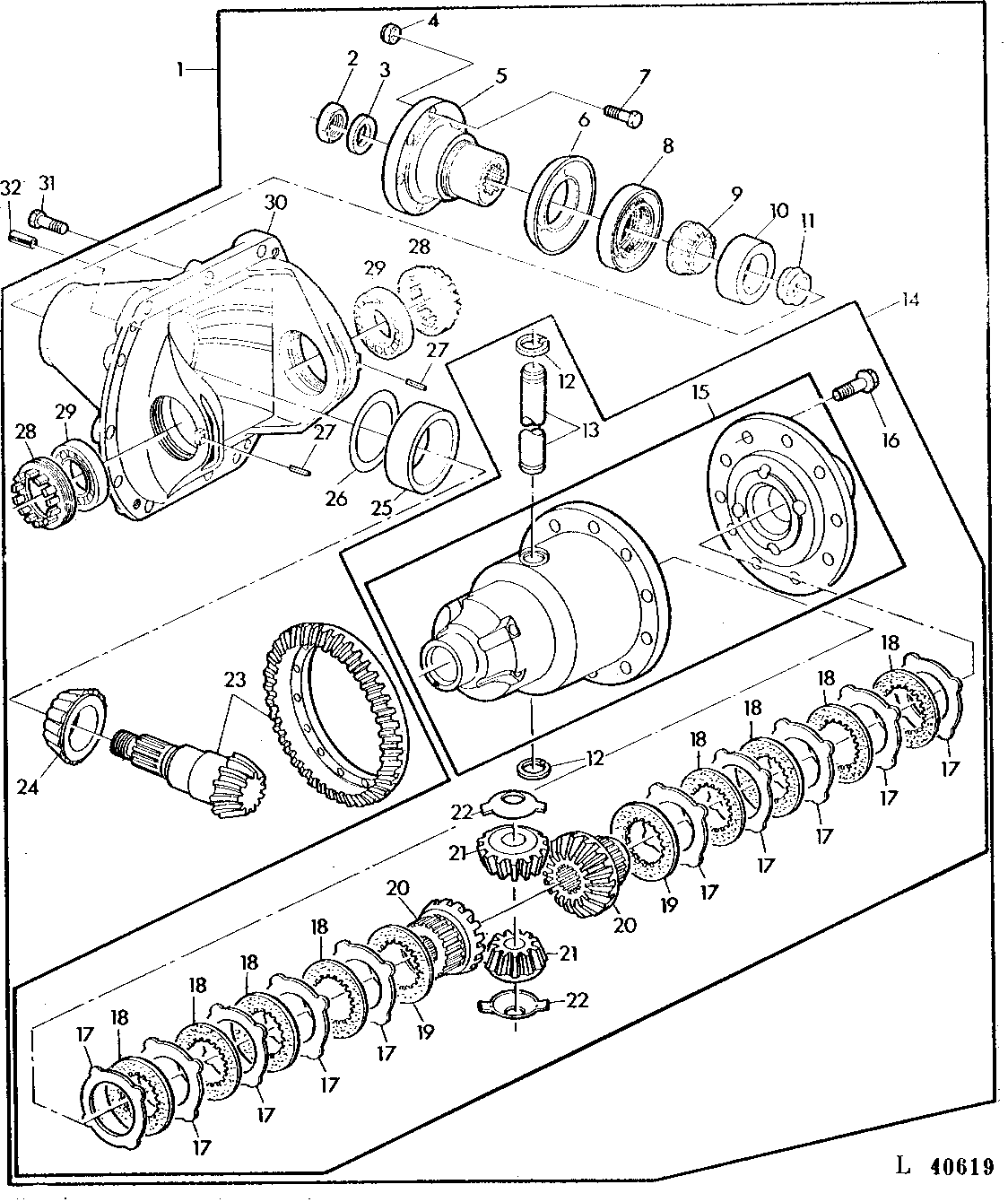

DIFFERENTIAL AND CARRIER (MECHANICAL FRONT WHEEL DRIVE) [01K11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL33083	1	CRADLE	(NLA)
2	14M7306	1	Nut	M20
3	L35562	1	Washer	-
4	14M7327	6	Lock Nut	M8
5	L35567	1	Flange	-
6	L35568	1	Dust Shield	-
7	L35569	6	Cap Screw	M8 X 25
8	AL32869	1	Seal	-
9	JD8295	1	Bearing Cone	-
10	JD8267	1	Bearing Cup	-
11	L35556	1	Sleeve	-
12	40M7074	2	SNAP RING	18X1.2MM
13	L35585	1	Pin Fastener	(NLA)
14	AL32874	1	DIFFERENTIAL LOCK	(NLA)
15	AL33078	1	CASE	(NLA)
16	19M7871	10	Screw	M10 X 22, NLA
17	L35577	10	Disk With Outer Spline	-
18	L35578	8	Disk	-
19	L35580	1	THRUST WASHER	48 X 72 X 2.900 MM (1.890" X 2.835" X 0.114") (SUB L63828)
19	L63828	2	Disk With Inner Spline	3.0MM (.118") (SUB FOR L35579)
19	L35581	1	THRUST WASHER	48 X 72 X 2.800 MM (1.890" X 2.835" X 0.110") (SUB L63828)
20	L35582	2	Gear	(NLA)
21	L35583	2	Bevel Gear	-
22	L35584	2	THRUST WASHER	-
23	AL32870	1	Gear	Z=17/35
24	JD8967	1	Bearing Cone	-
25	JD8252	1	Bearing Cup	-
26	L35558	1	Shim	0.300 MM (0.012")
26	L35557	1	Shim	0.600 MM (0.024") (NLA)
26	L35559	1	Shim	0.2MM (.007")
26	L35560	1	Shim	0.1MM (.003")
27	34M7141	2	Spring Pin	5 X 30 MM
28	L35561	2	Nut	88X1.5MM
29	JD37071	2	Tapered Roller Bearing	-
30	L35555	1	Cradle	-
31	19M7550	12	Cap Screw	M10 X 35
32	34M7111	2	Spring Pin	10 X 30 MM

DIFFERENTIAL AND CARRIER (MECHANICAL FRONT WHEEL DRIVE) [01K11]
