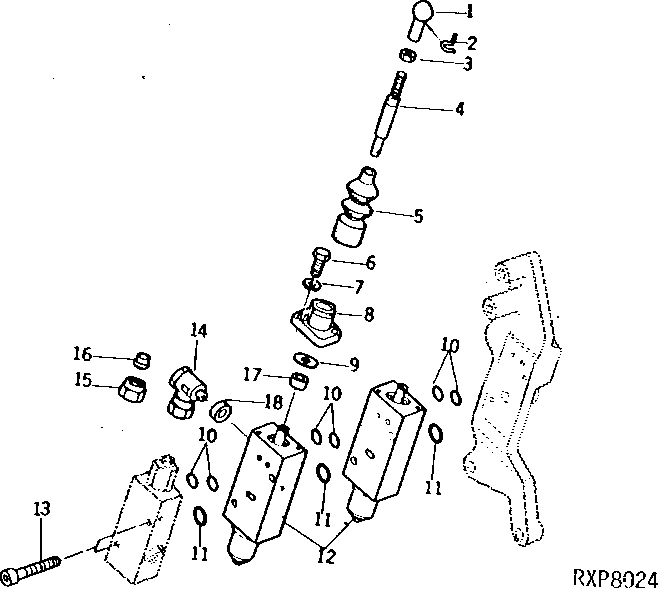

SELECTIVE CONTROL VALVES (TRACTOR SERIAL NO. -266749) [02C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	56M4437	1	BALL JOINT SOCKET	(A) M13
2	56M4537	1	BALL JOINT RETAINER	M13, (SUB 56M7004)
3	14M7273	1	Nut	(A) M8
4	AT23719	1	BALL JOINT	(A)
5	L17657	1	BOOT	(A)
6	19M7375	1	CAP SCREW	M6 X 18, (2 USED SINGLE) (4 USED DUAL)
7	12H302	1	Lock Washer	1/4", (2 USED SINGLE) (4 USED DUAL)
8	L17659	1	COVER	(A)
9	L17658	1	Washer	(A)
10	L53830	1	O-RING	(4 USED SINGLE) (6 USED DUAL)
11	L53836	1	O-Ring	-
12	AL26986	1	SELECTIVE CONTROL VALVE	(A) (SUB FOR AL14160)
13	19H3191	2	SCREW	5/16" X 1.620", (LESS SELECTIVE CONTROL VALVE)
13	19H3152	2	SCREW	5/16" X 2-3/4", (SINGLE)
13	19H3246	2	SCREW	5/16" X 4", (DUAL)
13	19H3211	2	SCREW	5/16" X 5-1/4", (DUAL SELECTIVE CONTROL WITH ADAPTER)
14	AL14157	1	UNION FITTING	(A) (INCLUDES 15M6139 AND 15M6130)
15	15M6139	1	FITTING	M12
16	15M6130	1	SLEEVE FITTING	(A) M12
17	L20102	1	Seal	(A)
18	51M4238	1	Sealing Ring	(A)
