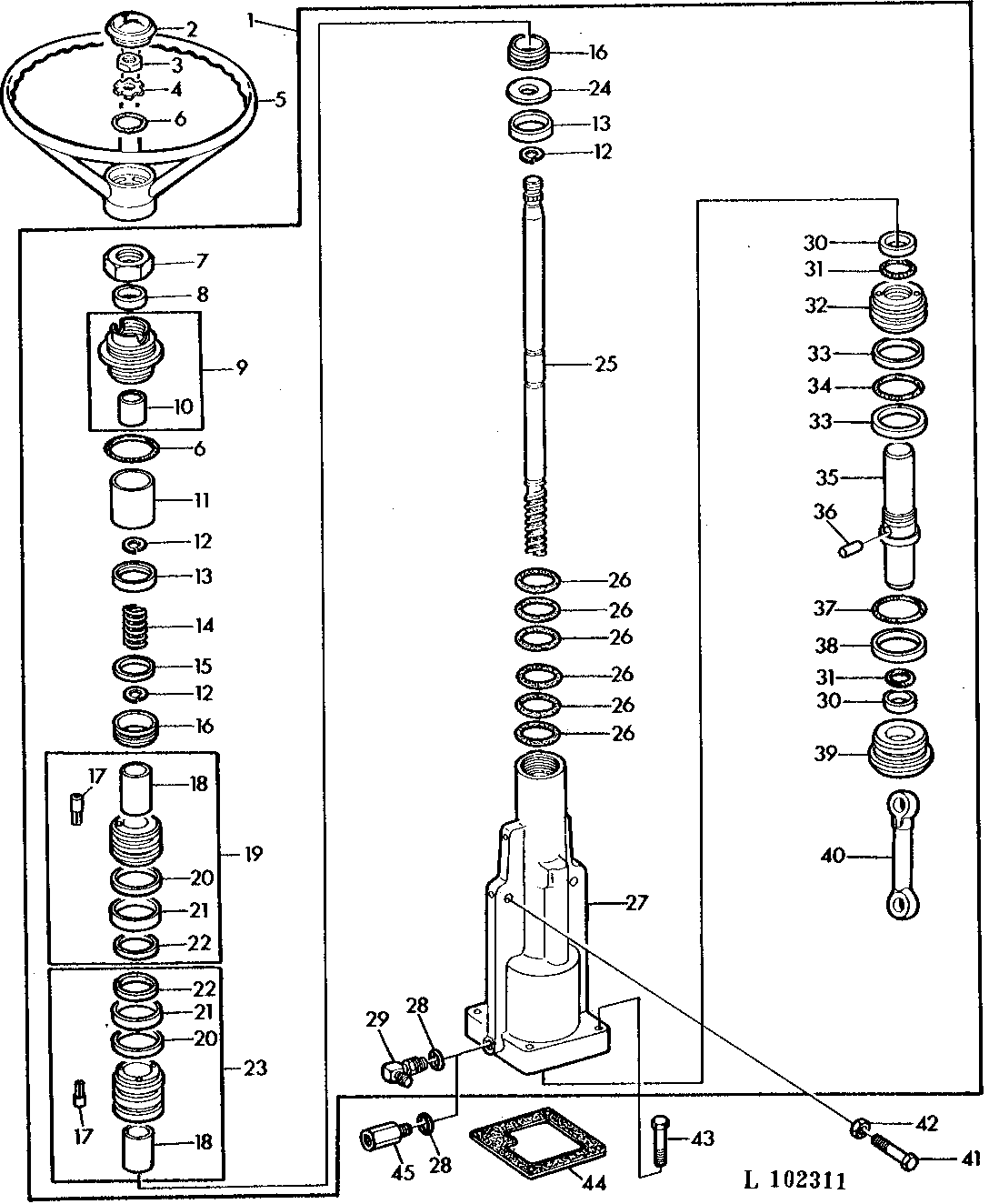

POWER STEERING (SERIAL NO. 266750- ) [01H22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL31262	1	Steering Control Unit	-
2	AL24052	1	Cover	(A)
2	AL155227	1	Cover	(A) (SUB FOR R47998 OR AL118173)
3	14H904	1	Nut	3/4"
4	T17148	1	Lock Washer	-
5	AL31236	1	Steering Wheel	-
6	B3690R	1	O-Ring	-
7	T21718	1	NUT	2"
8	T22260	1	SEAL	(ALSO ORDER AT19858)
9	AT19858	1	ADJUSTER	(ALSO ORDER T22260)
10	R27320	1	BUSHING	-
11	T22823	1	SLEEVE	-
12	R35226	3	SNAP RING	-
13	T22824	2	BUSHING	-
14	T13555	1	SPRING	-
15	L29197	1	THRUST WASHER	-
16	AL25855	2	THRUST BEARING	-
17	R49982	2	SLEEVE	-
18	R49980	2	SLEEVE	-
19	AL26312	1	Steering Control Unit	UP
20	T25333	4	SHIM	0.051MM (0.002")
20	T25334	8	SHIM	0.254MM (0.010")
21	T25332	2	WASHER	-
22	L31434	2	WASHER	-
23	AL26311	1	Steering Control Unit	LOW
24	T22825	1	SHIM	0.127MM (0.005")
24	T31290	1	SHIM	0.762MM (0.030")
24	T25741	1	SHIM	0.051MM (0.002")
25	L29199	1	STEERING SHAFT	-
26	L34451	6	O-Ring	-
27	AL31515	1	HOUSING	-
28	R26448	1	O-Ring	-
29	AR26725	1	ELBOW FITTING	-
30	T25327	2	BACK-UP RING	-
31	N131838	2	O-Ring	-
32	T25325	1	PISTON	-
33	T25326	2	BACK-UP RING	-
34	F3450R	1	O-Ring	-
35	T25323	1	ROD	(SUB AL70300)
36	T21655	1	PIN	-
37	L34452	1	O-Ring	-
38	R35684	1	BACK-UP RING	-
39	L34454	1	Guide	-
40	L35639	1	DRAG LINK	-
41	19H1849	2	Cap Screw	5/16" X 1-1/4"
42	14H785	2	Nut	5/16"
43	19H1801	4	CAP SCREW	3/8" X 2"
44	T21528	1	GASKET	-
45	AT54132	1	CHECK VALVE	-

POWER STEERING (SERIAL NO. 266750- ) [01H22]
