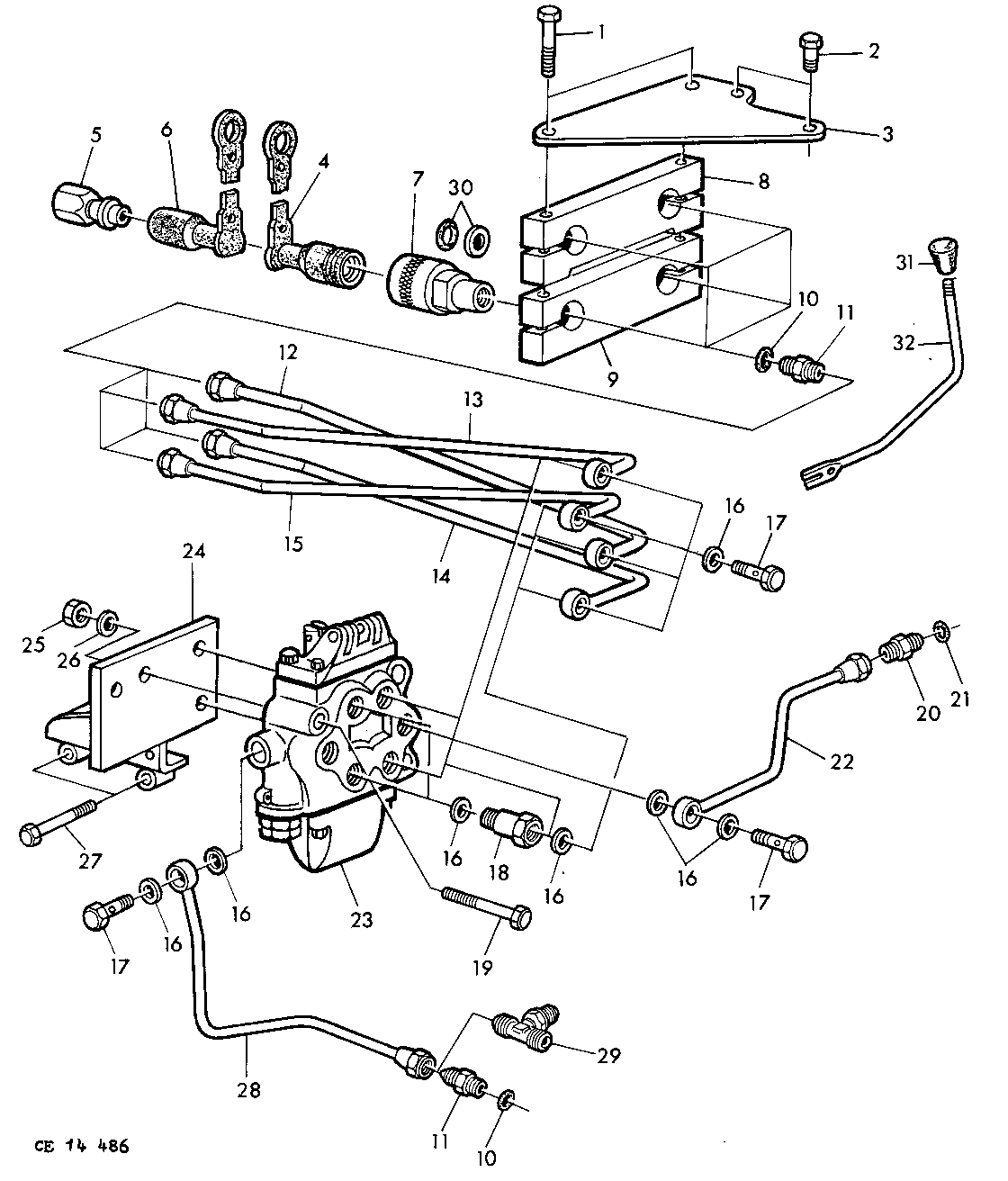

SELECTIVE CONTROL VALVE WITH FOUR REAR CONNECTORS [03C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2104	2	Cap Screw	3/8"X5"
2	19H1831	2	Cap Screw	1/2"X2"
3	CE13353	1	SUPPORT	-
4	CE13533	4	PLUG	-
5	DE12890	4	HYD. QUICK-CONNECT COUPLER	-
6	CE13534	4	PLUG	-
7	DE12889	4	EXTERNAL HALF COUPLER	(W/ DE14298)
8	CE13706	1	SUPPORT	-
9	CE13490	1	SUPPORT	-
10	R26375	5	O-Ring	-
11	R27237	5	Fitting	-
12	DE13024	1	OIL LINE	-
13	DE13025	1	OIL LINE	-
14	DE13031	1	OIL LINE	-
15	DE13032	1	OIL LINE	-
16	CE13532	14	GASKET	-
17	CE13531	6	ELBOW FITTING	-
18	CE13705	2	SHIM	-
19	19M7270	3	Cap Screw	8X65MM.
20	R31665	1	Fitting	(SUB FOR CE13136)
21	R26906	1	O-Ring	-
22	DE13022	1	FUEL LINE	-
23	DE13029	1	CONTROL VALVE	ASSY (ORD (2) CE14558, DE14349, DE14351, (2) DE14353, (2) DE14552)
23	DE14351	1	CONTROL VALVE	ASSY (SUB FOR DE13698)
24	DE13021	1	BRACKET	-
25	14M7029	3	Nut	8MM
26	12M7008	3	LOCK WASHER	8MM
27	19H3224	2	CAP SCREW	1/2"X6-1/4"
28	DE13030	1	OIL LINE	-
28	DE13034	1	OIL LINE	(A)
29	AT20894	1	FITTING	(A)
29	AL30020	1	TEE FITTING	(A)
30	DE14298	1	KIT	-
31	CE13622	2	KNOB	-
32	DE13700	2	LEVER	(W/ DE13700) (ORD (2) CE14552, (2) CE14558, (2) DE14353) (SUB FOR CE13458)

SELECTIVE CONTROL VALVE WITH FOUR REAR CONNECTORS [03C01]
